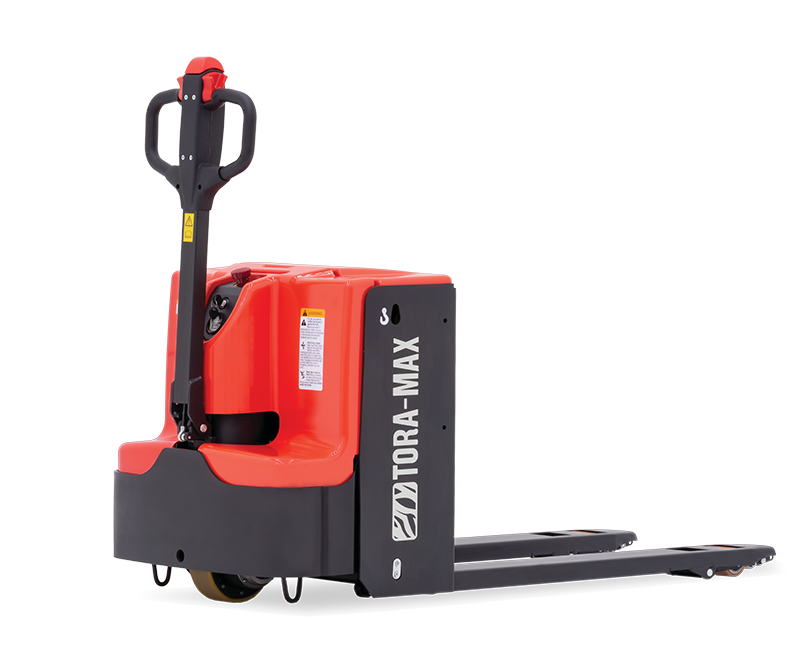

Tora-Max Electric Walkie Pallet Jack

The Tora-Max is a low-cost electric walkie pallet jack that is ideal for lower throughput applications. The product is a no nonsense and hardworking piece of equipment that’s purpose is simply to get the job done. This unit comes with a 24-volt battery pack and onboard charging system as well as standard 48″ forks

With dependable AC power and maneuverability, the Tora-Max delivers what you need without breaking the bank. Low maintenance. High performance.

  • 24-volt electrical system
  • AC drive motor
  • Chrome-plated lift cylinder is reinforced and durable to keep your walkie lifting and your product moving
  • An easy-to-use single-point watering system cuts your maintenance time and doesn’t even require cover removal. Less downtime means you can get back to work.
  • On-handle direction reverse switch helps keep you from getting pinned in too tight situations. The “belly button” reverses the Tora-Max travel
  • Tools free cover removal allows routine maintenance checks to be completed with ease
  • On-board battery charger conveniently plugs directly into your wall outlet. No extra equipment required
  • Multifunction control handle with ergonomic grips is comfortable, intuitive and easy to use, reducing operator strain and fatigue

Specifications

MODEL NUMBERLOAD CAPACITY* (LBS.)MAX. TRAVEL SPEED FULL LOAD (MPH)MAX. LIFT SPEED FULL LOAD (FPM)MAX. GRADEABILITY FULL LOAD (%)BASIC RIGHT ANGLE STACK** (IN.)
TWB404,0003.4N/A881.1

* Based on 24″ Load center and 48” forks
** Minimum aisle width for right-angle stacking have been given for a standard model. Add a minimum of 12” for maneuverability

Performance

  • 24-volt electrical system
  • AC drive motor
  • Thermal protection and current limiting
  • Transistor drive control system
  • Regenerative braking
  • Contactor-less drive controls
  • Electronic raise and lower controls located on operator handle
  • Fused control and power circuits

Ergonomics / Operability

  • Multifunction control handle with ergonomically angled hand grips
  • Fingertip control of all functions
  • Directional thumb wheels
  • Directional reverse switch on control handle
  • Pneumatic cylinder control handle return
  • “Pinwheel” capability for right angle stacking
  • Electric disc brake
  • Turtle speed for pinwheel operation
  • Digital battery discharge indicator
  • Digital hour meter

Safety

  • Electric Horn
  • Anti-Roll Back System

Optional Equipment

  • 48” high load backrest
  • 60” high load backrest
  • 42” fork length

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

MODEL NUMBERLOAD CAPACITY* (LBS.)MAX. TRAVEL SPEED FULL LOAD (MPH)MAX. LIFT SPEED FULL LOAD (FPM)MAX. GRADEABILITY FULL LOAD (%)BASIC RIGHT ANGLE STACK** (IN.)
TWB404,0003.4N/A881.1

* Based on 24″ Load center and 48” forks
** Minimum aisle width for right-angle stacking have been given for a standard model. Add a minimum of 12” for maneuverability

  • 24-volt electrical system
  • AC drive motor
  • Thermal protection and current limiting
  • Transistor drive control system
  • Regenerative braking
  • Contactor-less drive controls
  • Electronic raise and lower controls located on operator handle
  • Fused control and power circuits
  • Multifunction control handle with ergonomically angled hand grips
  • Fingertip control of all functions
  • Directional thumb wheels
  • Directional reverse switch on control handle
  • Pneumatic cylinder control handle return
  • “Pinwheel” capability for right angle stacking
  • Electric disc brake
  • Turtle speed for pinwheel operation
  • Digital battery discharge indicator
  • Digital hour meter
  • Electric Horn
  • Anti-Roll Back System
  • 48” high load backrest
  • 60” high load backrest
  • 42” fork length

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

Download the Tora-Max brochure

Designed to be an intuitive turn-key solution for your operation, Tora-Max is a no-nonsense electric pallet jack at a no-nonsense price. Download a brochure to meet your employee of the month.
