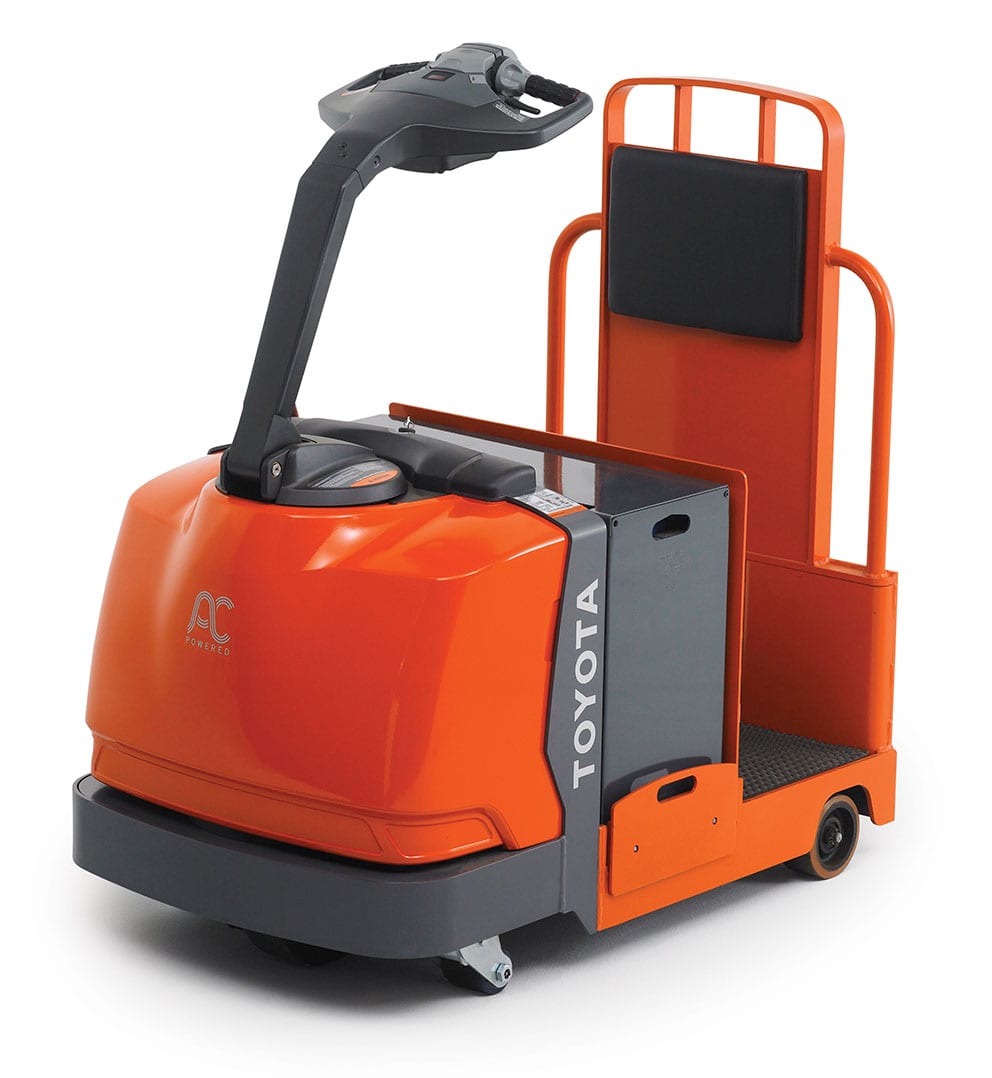

Core Tow Tractor

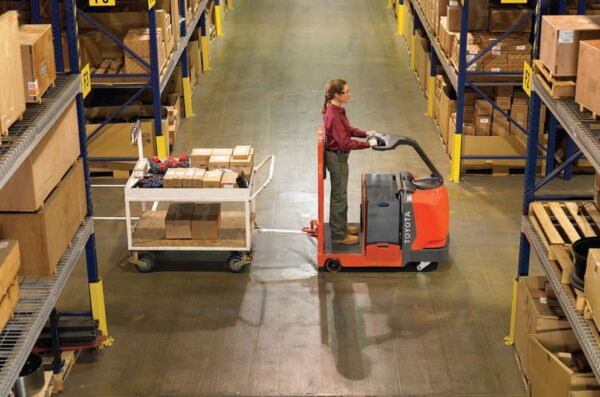

From A to Z, the Core Tow Tractor gets you there. Quickly and efficiently. It’s the ideal solution for transporting material and pulling carts through a facility when no vertical lift is required.
Toyota’s tow tractor product line offers electric tuggers for any application. With features such as the AC Drive System, AC Drive Motor and regenerative braking, Toyota Tow Tractors increase productivity and provide the ideal horizontal transport solution for transporting material and pulling carts through a facility.
- 10,000 lb. towing capacity
- 8.8 mph travel speed without load
- 24-volt AC drive system
- Regenerative braking
- 24-volt AC drive system for optimal performance in the toughest applications
- Generous 10,000 lb. towing capacity
- Multifunction control handle with ergonomically positioned handgrips; dual thumbwheels; and lift, lower and horn buttons for simplified operation of all controls with either hand
- Tight turning radius advantageous for cramped, busy work environments
- Axle-weldment rubber suspension system for a smoother ride
- Quick-release tow hitch option lets operator release carts without leaving operator compartment, streamlining work operations
- Power steering option for effortless steering, improved ergonomics and unmatched control, with speed-sensitive steering and smooth continuous operation
- AGV conversion option equips tow tractor to operate as an automated guided vehicle while still allowing 100% manual control when needed
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 8TB50 | 10,000 | 5.8 | N/A | N/A | N/A |
Details of specifications and equipment may change without notice.
Performance
- AC drive system with thermal protection and current limiting
- 24-volt electrical system
- Fault code memory with hour meter reading
- Regenerative braking
- Programmable performance
Ergonomics
- Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
- Dual thumb wheels with twist grips for directional control and travel speed
- Intuitively positioned lift/lower and horn buttons
- Low-effort control handle
- High-speed, interlock button
- Bubble-cushioned operator floor mat, padded backrest and knee pad
Serviceability
- AC drive motor (no brushes or commutator)
- Self-adjusting electric disc brake
- One-piece, lightweight service access cover
- Error indicator with self-diagnostics
Safety
- Wrap-around hand guard
- Control handle with dual brake levers
- Electric horn
- Polyurethane torsion block stabilizing casters
Optional Equipment
- Quick release tow hitch
- Power steering
- Front bumper
- Storage tray with clipboard, battery compartment mounted
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 8TB50 | 10,000 | 5.8 | N/A | N/A | N/A |
Details of specifications and equipment may change without notice.
- AC drive system with thermal protection and current limiting
- 24-volt electrical system
- Fault code memory with hour meter reading
- Regenerative braking
- Programmable performance
- Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
- Dual thumb wheels with twist grips for directional control and travel speed
- Intuitively positioned lift/lower and horn buttons
- Low-effort control handle
- High-speed, interlock button
- Bubble-cushioned operator floor mat, padded backrest and knee pad
- AC drive motor (no brushes or commutator)
- Self-adjusting electric disc brake
- One-piece, lightweight service access cover
- Error indicator with self-diagnostics
- Wrap-around hand guard
- Control handle with dual brake levers
- Electric horn
- Polyurethane torsion block stabilizing casters
- Quick release tow hitch
- Power steering
- Front bumper
- Storage tray with clipboard, battery compartment mounted
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Core Tow Tractor brochure
The Toyota Core Tow Tractor’s AC drive system, AC drive motor and regenerative braking boost productivity and make it simple to maintain. Download a brochure to see how this tow tractor has plenty of pull for the job.
