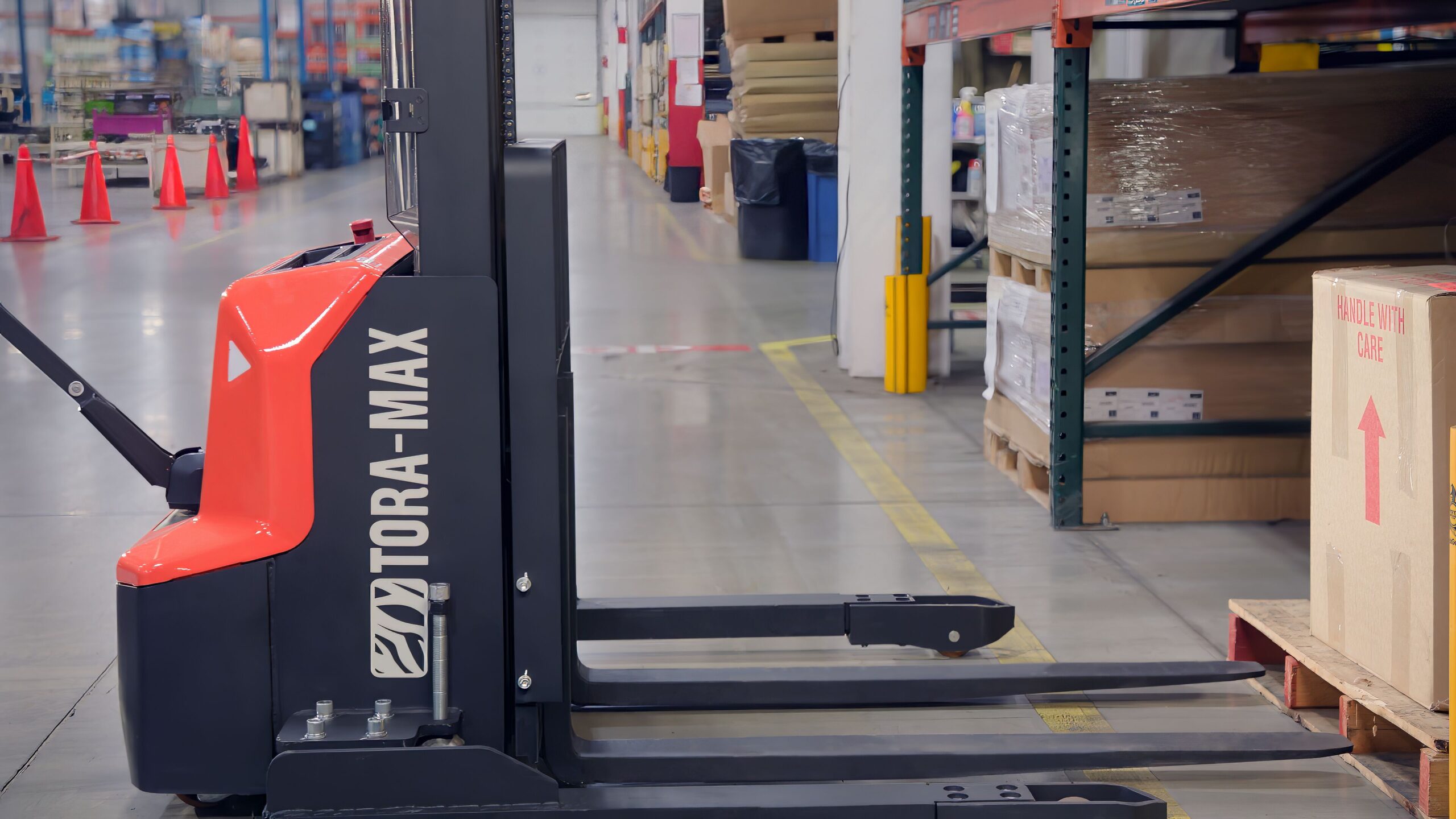

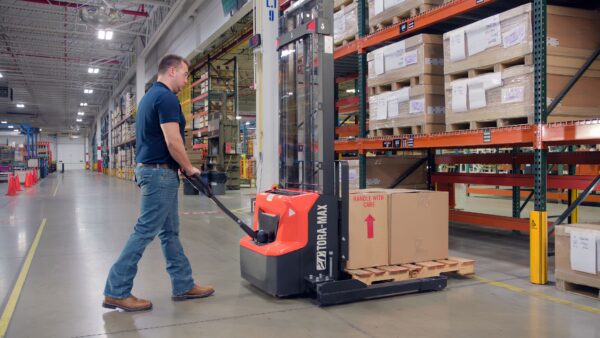

Tora-Max Walkie Stacker
The Tora-Max Walkie Stacker offers versatility, accessibility, and load stability to keep your operation moving. This unit with holds a 2,600 lb. lift capacity and a 24V lithium- ion battery. In addition, this unit includes a built- in charger, the Tora- Max Walkie Stacker meets and exceeds indoor efficiency expectations.
Versatile enough to handle light- duty applications, this walkie stacker possesses excellent maneuverability. Moreover, there are adjustable base legs that provide additional stability for those with a wide variety of load sizes. Pinwheel capability grants optimal control in tight spaces where the handle cannot be fully extended, making it easier to navigate narrow aisles.
The Tora-Max Walkie Stacker navigates tight aisles and compact spaces while providing optimal comfort and control. Any move you need to make can be done at the touch of a button. You can lift and lower the load in just a few movements using the electric lift and lower controls. Ergonomically angled hand grips, fingertip controls, and directional thumb wheels allow for easy operation without losing productivity, and adjustable base legs provide additional stability to handle a wide variety of load sizes.
- 2,600 lb. lifting capacity
- 24V Lithium- Ion Battery
- Built-in Charger
- Built-in Charger
- LCD Battery Discharge Indicator with Hour Meter
- 45” Forks
- 42” Load Backrest
- Pin code access panel/ RFID card access: Utilizes large display buttons or an RFID tag and reduce the likelihood of unauthorized use.
- Traveling speed limiting switch that limits speed based on the elevated fork height.
- Adjustable base legs to provide optimal stability for various load sizes.
- Multifunctional control handle with ergonomically angled hand grips with fingertip control for all functions and directional thumb wheels.
- Parking brake electromagnetic disc and turtle speed button for increased comfort during operations.
- Contractor-less drive controls, anti- roll back system, and high ground clearance for increase performance.
- Fused Control and power circuits along with an electric lift and lowing function to help with operation comfort and safety.
- There are polyurethane drive tire and load wheels along with a plexiglass screen guard.
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) |
|---|---|---|---|---|
| 2TSB26 | 2600 | 2.6 | 21.7 | 4.0 |
** Contact TMHS for Spec Details
Details of specifications and equipment may change without notice.
Performance
- 24 Volt Electrical System
- DC Drive Motor
- Regenerative Braking
- Electric Lift and Lower
- Contactor-less Drive Controls
- Anti-roll Back System
- Fused Control and Power Circuits
- High Ground Clearance
Ergonomics / Operability
- Multifunction Control Handle with Ergonomically Angled Hand Grips
- Fingertip Control of All Functions
- Directional Thumb Wheels
- Pneumatic Cylinder Control Handle Return
- Parking Brake Electromagnetic Disc
- Turtle Speed Button
- “Pinwheel” Capability
- LCD Battery Discharge Indicator with Hour Meter
Safety
- Adjustable Baselegs
- Travel Speed Limiting Switch
- Electric Lift/ Lowering Controls
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) |
|---|---|---|---|---|
| 2TSB26 | 2600 | 2.6 | 21.7 | 4.0 |
** Contact TMHS for Spec Details
Details of specifications and equipment may change without notice.
- 24 Volt Electrical System
- DC Drive Motor
- Regenerative Braking
- Electric Lift and Lower
- Contactor-less Drive Controls
- Anti-roll Back System
- Fused Control and Power Circuits
- High Ground Clearance
- Multifunction Control Handle with Ergonomically Angled Hand Grips
- Fingertip Control of All Functions
- Directional Thumb Wheels
- Pneumatic Cylinder Control Handle Return
- Parking Brake Electromagnetic Disc
- Turtle Speed Button
- “Pinwheel” Capability
- LCD Battery Discharge Indicator with Hour Meter
- Adjustable Baselegs
- Travel Speed Limiting Switch
- Electric Lift/ Lowering Controls
Download the Tora- Max Walkie Stacker brochure
Keeping up with operational demands requires speed, reliability, and efficiency. The Tora-Max Walkie Stacker excels at all three. Download the brochure to see how this Walkie Stacker takes charge of your biggest tasks.
