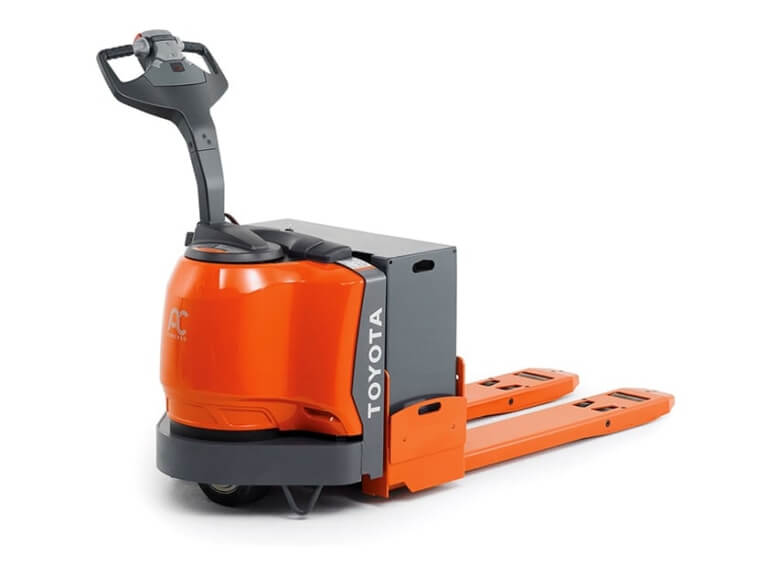

Large Electric Walkie Pallet Jack

Power and maneuverability to handle heavy loads. Ergonomic design to maximize operator effectiveness through long shifts. The Large Electric Walkie Pallet Jack makes loading and unloading in your warehouse or distribution center easy. In addition, this pallet jack fits your everyday needs for traveling short distances comfortably for maximum productivity.

Toyota’s Large Electric Walkie Pallet Jack makes maneuvering heavy loads throughout the warehouse efficient, convenient and productive. Whether you are using a staging area for loading and un-loading or you need a solution for here-and-there material handling jobs, the Large Electric Walkie Pallet Jack is an asset for nearly any application.

  • 6,000 lb. capacity
  • Regenerative braking
  • Ergonomic multifunction control handle
  • Multifunction control handle with ergonomically positioned handgrips; dual thumbwheels; and lift, lower and horn buttons for simplified operation of all controls with either hand
  • High-speed interlock to maintain top travel speed for long-distance transport without continuously pressing a button
  • Programmable performance parameters customizable through a digital display to adjust for a variety of job applications and operator skill levels
  • Box rail fork construction provides torsional rigidity and maximum strength to prevent premature fatigue
  • Solid steel pull rods add strength throughout the entire length of forks, and are much less likely to bend or flex than push rods, resulting in less maintenance
  • Solid steel pull rods add strength throughout the entire length of forks, and are much less likely to bend or flex than push rods, resulting in less maintenance
  • Self-diagnostics simplify troubleshooting and eliminate the need for an external hand-held analyzer
  • Glance and go display provides a quick summary of key information
  • AC drive motor plus regenerative braking for longer run time and increased productivity

Specifications

MODEL NUMBERLOAD CAPACITY* (LBS.)MAX. TRAVEL SPEED FULL LOAD (MPH)MAX. LIFT SPEED FULL LOAD (FPM)MAX. GRADEABILITY FULL LOAD (%)BASIC RIGHT ANGLE STACK** (IN.)
8HBW306,0003.7N/A1081.2

* Based on 24″ Load center
** Add load length and clearance

Details of specifications and equipment may change without notice.

Performance

  • AC drive system
  • 24-volt electrical system
  • Regenerative braking
  • Programmable performance
  • Controller Area Network (CAN-Bus) Communications
  • Welded construction with reinforced heavy-duty bumper
  • Fused control and power circuits

Ergonomics / Operability

  • Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
  • Dual thumb wheels for directional control and travel speed
  • Low-effort control handle

Safety

  • Wrap-around hand guard
  • Spring-loaded control handle
  • Runaway protection
  • Directional reverse switch on control handle
  • Side-stabilizer steel bars
  • Electric Horn

Ease of Service

  • AC drive motor (no brushes or commutator)
  • Self-adjusting electric disc brake
  • One-piece, lightweight service access cover
  • Teflon® coated PolyLube™ lift linkage bushings (maintenance free)
  • Error indicator with self-diagnostics

Optional Equipment

  • Galvanized chassis
  • Electric travel alarm (forward and reverse)
  • Pallet entry/exit rollers
  • Electronic touch-pad, keyless entry system with password protection
  • Dual tandem load wheels (3.25” x 2”)
  • Heavy duty load wheels (Vulkollan)

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

MODEL NUMBERLOAD CAPACITY* (LBS.)MAX. TRAVEL SPEED FULL LOAD (MPH)MAX. LIFT SPEED FULL LOAD (FPM)MAX. GRADEABILITY FULL LOAD (%)BASIC RIGHT ANGLE STACK** (IN.)
8HBW306,0003.7N/A1081.2

* Based on 24″ Load center
** Add load length and clearance

Details of specifications and equipment may change without notice.

  • AC drive system
  • 24-volt electrical system
  • Regenerative braking
  • Programmable performance
  • Controller Area Network (CAN-Bus) Communications
  • Welded construction with reinforced heavy-duty bumper
  • Fused control and power circuits
  • Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
  • Dual thumb wheels for directional control and travel speed
  • Low-effort control handle
  • Wrap-around hand guard
  • Spring-loaded control handle
  • Runaway protection
  • Directional reverse switch on control handle
  • Side-stabilizer steel bars
  • Electric Horn
  • AC drive motor (no brushes or commutator)
  • Self-adjusting electric disc brake
  • One-piece, lightweight service access cover
  • Teflon® coated PolyLube™ lift linkage bushings (maintenance free)
  • Error indicator with self-diagnostics
  • Galvanized chassis
  • Electric travel alarm (forward and reverse)
  • Pallet entry/exit rollers
  • Electronic touch-pad, keyless entry system with password protection
  • Dual tandem load wheels (3.25” x 2”)
  • Heavy duty load wheels (Vulkollan)

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

Download the Large Electric Walkie Pallet Jack brochure

The Toyota Large Electric Pallet Jack makes traveling short distances through the warehouse quick, productive and comfortable. Download a brochure top see how this 6,000 lb. capacity electric pallet jack is built to withstand.
