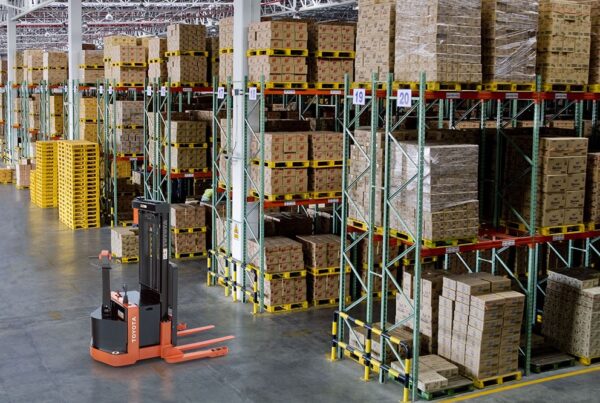

Industrial Walkie Stacker
High shelving, narrow aisles. Loads up to 4,000 pounds, lift heights up to 189 inches. For everyday material handling duties, Toyota’s high-performing Industrial Walkie Stacker really stacks up. It’s SEM drive moto and fully programmable drive system make light-duty stacking easy and efficient. Top-line durability and an operator friendly ergonomic design make your warehouse or distribution center more productive.
When a traditional forklift isn’t necessary but lifting product above a second-tier rack is, the Toyota Industrial Stacker is a cost-efficient, easy-to-use solution. With top-of-the-line durability and long-run performance, the Industrial Stacker is an economical compliment to nearly any forklift fleet.
- 2,200 – 4,000 lb. capacity
- Up to 189-inch lift height
- High-visibility mast
- Navigates 7-8 foot aisles
- UL-approved model type “E”
- Easy-to-operate controls anchored by an ergonomic multifunction control handle
- Load-sensing torsion bar for easier steering and reduced operator fatigue
- Rugged construction for increased durability and reliability, and a longer useful lifespan
- Ability to handle heavy loads up to 4,000 pounds, quickly and efficiently
- Handle-mounted electric lift/lower controls for easy access, with pressure-compensated valve for constant lowering in all conditions
- Large ergonomic dual thumbwheels for easy thumb activation of all controls
- High-visibility mast allows operator to clearly see fork tips and wider work area
- No tools required service door for easy access to all major components for inspection and maintenance
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 6BSW11 | 2,200 | 2.9 | 32 | 6 | 81 |
| 6BWS15 | 3,000 | 2.9 | 32 | 6 | 85 |
| 6BWS20 | 4,000 | 2.6 | 27 | 6 | 88 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- 24-volt electrical system
- MOSFET programmable controller
- SB-175 red connector
- UL-approved model type “E”
- On/off key switch
Ergonomics / Operability
- Automatic resetting circuit breaker
- Reverse polarity protection contactor
- Mechanical drum brake
- Directional thumb control
- Safety glass mast guard
- Direction reverse switch in control handle
Safety
- Electric horn
- High-visibility mast
- Emergency power disconnect switch
Ease of Service
- Easy-access service cover
- Battery compartment: 32.3″ x 13.3″ x open height
- Power on self-test
Optional Equipment
- 2” or 3” sideshift each way
- Drive tire non-marking rubber
- Corrosion conditioning
- Battery discharge indicator and hour meter with lift interrupt
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 6BSW11 | 2,200 | 2.9 | 32 | 6 | 81 |
| 6BWS15 | 3,000 | 2.9 | 32 | 6 | 85 |
| 6BWS20 | 4,000 | 2.6 | 27 | 6 | 88 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- 24-volt electrical system
- MOSFET programmable controller
- SB-175 red connector
- UL-approved model type “E”
- On/off key switch
- Automatic resetting circuit breaker
- Reverse polarity protection contactor
- Mechanical drum brake
- Directional thumb control
- Safety glass mast guard
- Direction reverse switch in control handle
- Electric horn
- High-visibility mast
- Emergency power disconnect switch
- Easy-access service cover
- Battery compartment: 32.3″ x 13.3″ x open height
- Power on self-test
- 2” or 3” sideshift each way
- Drive tire non-marking rubber
- Corrosion conditioning
- Battery discharge indicator and hour meter with lift interrupt
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Industrial Walkie Stacker brochure
With SEM drive motor and fully-programable drive system, the Toyota Industrial Stacker adjusts to your specific needs. Download the Industrial Walkie Stacker brochure to learn how it’s Toyota’s everyday high performer.
