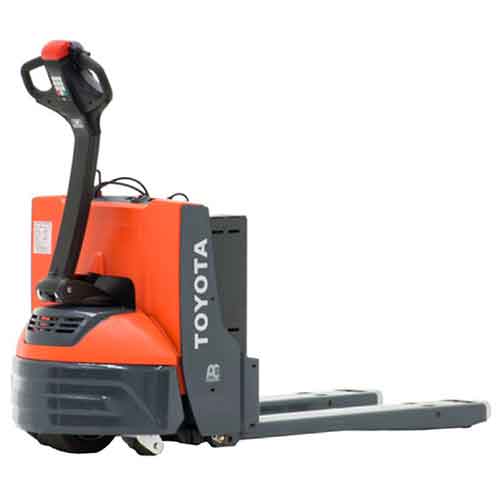

Electric Walkie
Designed to deliver, even when the going gets tights. Narrow aisles? No problem. The Toyota Electric Walkie pallet jack was made with the space limitations of retail, warehouse and delivery customers in mind. With a new AC drive motor, it’s smooth to operate and easy to maintain. Delivers excellent acceleration and top travel speed, too. Perfect for keeping costs down and trouble-free productivity up.
The Toyota Electric Walkie pallet jack makes pulling product through the warehouse efficient and convenient. The first of its kind to offer a factory option for an integrated fork scale, the Electric Walkie pallet jack can calculate weight even as the load is lifted and save space by eliminating the need for a separate scale. Ideal for mid-distance runs as well as loading and unloading trailers, it’s a handy, multi-use solution for nearly any application.
- IP65-rated electrical system
- UP to 4,500 lb. capacity
- AC drive motor
- Electronic brake release
- Wet- or dry-cell battery option
- No tools required cover
- Cold storage to -20° option
Learn the tips and best practices for the Electric Walkie Pallet Jack
- Ergonomic design of easy steering system and multifunction control handle lets you maneuver loads up to 4,500 lbs.
- AC traction control increases long-term reliability by removing wear items from motor control circuit
- Pinwheeling in trailer to maximize cube, allowing you to move more
- Exclusive customizable operator keypad on control handle with easy-to-read display
- Standard sealed line and hydraulic contactors prevent rain or condensation from damaging internal components
- Click-to-creep offers extremely smooth low-speed control for operating on lift gates and crowded docks
- Standard electronic brake release allows for moving pallet jack manually when battery hasn’t been charged
- Simplified charging from a durable, high-output, built-in battery charger that’s over 93% efficient
- Anti-rollback system keeps you confident while operating on an incline
- 500-hour service intervals plus no tools required service covers that remove and reinstall easily for routine maintenance and inspections
- Specially designed battery case is built to withstand punishment, with reinforced hinge points, battery retention cleats, direct bolt-to-chassis mounting and easy service access
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 8HBW23 | 4500 | 3.6 | N/A | 10 | 85.3 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice. Some product features described herein are optional. Please consult a TMHS Sales Consultant for specifications.
Performance
- 24-volt electrical system
- AC drive motor
- Controller Area Network (CAN-Bus) communication
- Regenerative braking
- Box rail fork construction
- Transistor drive control system (MOSFET)
- Click to creep function
- Electronic brake release
- Steel battery case
- IP65 electrical system
- Integrated fork scale (option)
- Stability casters (option)
Ergonomics / Operability
- Multifunction control handle with ergonomically angled hand grips
- Fingertip control of all functions
- Directional thumb wheels
- Programmable neutral speed reduction
- Electric Disc Brake
- Spring-Loaded Control Handle
- “Pinwheel” Capability for Right Angle Stacking
Ease of Service
- Programmable service indicator
- Battery compartment: 26.5″ x 7.8″ x open height
- High-strength service cover with pen and pencil storage tray
- Tool-free cover removal
Safety
- Electric horn
- Emergency power disconnect
- Anti-roll back system
Optional Equipment
- Galvanized chassis
- Nexsys maintenance free battery/charger pack
- 3” lowered fork height (3,000 lb. capacity)
- Sealed-baring dual load wheels
- Integrated fork scale
- Stability casters
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 8HBW23 | 4500 | 3.6 | N/A | 10 | 85.3 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice. Some product features described herein are optional. Please consult a TMHS Sales Consultant for specifications.
- 24-volt electrical system
- AC drive motor
- Controller Area Network (CAN-Bus) communication
- Regenerative braking
- Box rail fork construction
- Transistor drive control system (MOSFET)
- Click to creep function
- Electronic brake release
- Steel battery case
- IP65 electrical system
- Integrated fork scale (option)
- Stability casters (option)
- Multifunction control handle with ergonomically angled hand grips
- Fingertip control of all functions
- Directional thumb wheels
- Programmable neutral speed reduction
- Electric Disc Brake
- Spring-Loaded Control Handle
- “Pinwheel” Capability for Right Angle Stacking
- Programmable service indicator
- Battery compartment: 26.5″ x 7.8″ x open height
- High-strength service cover with pen and pencil storage tray
- Tool-free cover removal
- Electric horn
- Emergency power disconnect
- Anti-roll back system
- Galvanized chassis
- Nexsys maintenance free battery/charger pack
- 3” lowered fork height (3,000 lb. capacity)
- Sealed-baring dual load wheels
- Integrated fork scale
- Stability casters
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Electric Walkie brochure
For maneuvering heavy loads throughout the warehouse, the compact and durable Toyota Electric Walkie pallet jack is the ideal solution. Download a brochure for more information on this compact and strong Toyota.
