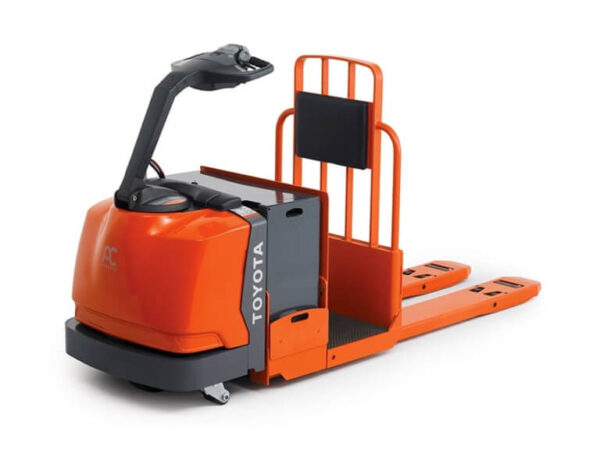

Center-Controlled Rider Pallet Jack
Just get in and go. With easy maneuverability and a comfortable mid-truck operator compartment, the Center-Controlled Rider Pallet Jack makes cross-warehouse hauling fast and efficient. It doubles as a low-level order picker, too. Giving you complete command of your ground game and a healthy boost in productivity, shift after shift.
The Toyota Center-Controlled Rider Pallet Jack is easy to maneuver and quick to respond to commands. The motorized pallet jack, ideal for longer runs, provides a comfortable operator compartment. Doubling as a ground-level order picker, the Center-Controlled Rider Pallet Jack is an asset to any warehouse or distribution center.
- 6,000 to 8,000 lb. capacity
- Regenerative braking
- Electronic coast control option
- Up to 103-inch fork option
- Cold conditioning package option
Learn more about this Walkie Rider Pallet Jack model.
- Multifunction control handle with ergonomically positioned handgrips; dual thumbwheels; and lift, lower and horn buttons for simplified operation of all controls with either hand
- High-speed interlock to maintain top travel speed for long-distance transport without continuously pressing a button
- Programmable performance parameters customizable through a digital display to adjust for a variety of job applications and operator skill levels
- Box rail fork construction provides torsional rigidity and maximum strength to prevent premature fatigue
- Solid steel pull rods add strength throughout the entire length of forks, and are much less likely to bend or flex than push rods, resulting in less maintenance
- Dual lift cylinders provide efficient hydraulic power for smooth, effortless lifting to reduce component wear
- Self-diagnostics simplify troubleshooting and eliminate the need for an external hand-held analyzer
- Glance and go display provides a quick summary of key information
- Cushioned stability handrail offers convenient control during high-speed travel
Specifications
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- AC drive system
- 24-volt electrical system
- Programmable performance
- Controller area network (CAN-bus) communications
- Welded construction with reinforced heavy-duty bumper
- Box rail Fork construction
- Heavy-duty bushings and pins
Ergonomics / Operability
- Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
- Dual thumb wheels with twist grips for directional control and travel speed
- Intuitively positioned lift/lower and horn buttons
- Low-effort control handle
- High-speed, interlock button
- Bubble-cushioned operator floor mat, padded backrest and knee pad
Safety
- Wrap-around hand guard
- Control handle with dual brake levers
- Electric horn
- Heavy-duty spring-loaded stabilizing casters
Ease of Service
- AC drive motor (no brushes or commutator)
- Self-adjusting electric disc brake
- One-piece, lightweight service access cover
- Teflon® coated PolyLube™ lift linkage bushings (maintenance free)
- Error indicator with self-diagnostics
Optional Equipment
- Heavy duty load wheels (Vulkollan)
- Dual tandem load wheels (3.25” x 2”)
- Storage tray with clip board
- Battery compartment rollers with dual side gates
- Lubrication package for pivot points (grease fittings)
- Various fork lengths and widths
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- AC drive system
- 24-volt electrical system
- Programmable performance
- Controller area network (CAN-bus) communications
- Welded construction with reinforced heavy-duty bumper
- Box rail Fork construction
- Heavy-duty bushings and pins
- Multifunction control handle with ergonomically angled hand grips and wrap-around hand guard
- Dual thumb wheels with twist grips for directional control and travel speed
- Intuitively positioned lift/lower and horn buttons
- Low-effort control handle
- High-speed, interlock button
- Bubble-cushioned operator floor mat, padded backrest and knee pad
- Wrap-around hand guard
- Control handle with dual brake levers
- Electric horn
- Heavy-duty spring-loaded stabilizing casters
- AC drive motor (no brushes or commutator)
- Self-adjusting electric disc brake
- One-piece, lightweight service access cover
- Teflon® coated PolyLube™ lift linkage bushings (maintenance free)
- Error indicator with self-diagnostics
- Heavy duty load wheels (Vulkollan)
- Dual tandem load wheels (3.25” x 2”)
- Storage tray with clip board
- Battery compartment rollers with dual side gates
- Lubrication package for pivot points (grease fittings)
- Various fork lengths and widths
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Center-Controlled Rider Pallet Jack brochure
With an AC drive motor and features like regenerative braking, the Toyota Center-Controlled Rider Pallet Jack boosts productivity throughout the entire shift. Download a brochure to find out how this long-distance rider is master of the ground game.
