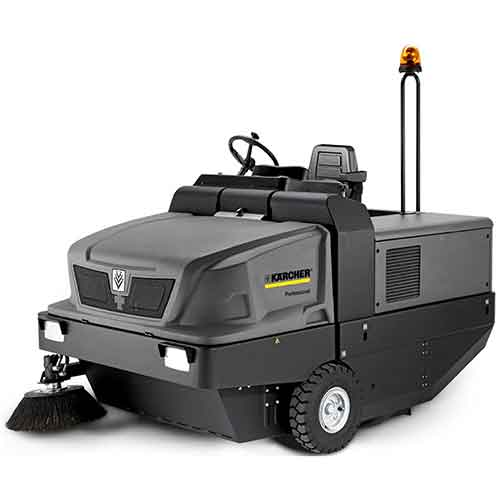

With its strong steel chassis, durable components and outstanding dust filter system, the Kärcher KM 150/500 R is built for the toughest job and is well-suited for heavy-duty industrial environments. If your location requires low noise or emission-free operation, the battery version of the KM 150/500 R is the only one of its size on the market. With high working and transport speeds, low maintenance requirements and a fully hydraulic traction drive and sweeping system, this high capacity ride-on sweeper is ideal for heavy-duty use.

  • Rugged construction with a solid steel frame and fully hydraulic traction drive
  • Flat fold filter with 75 square feet area is efficient and has a long life
  • The KM 150/500 R is designed with ergonomics in mind. The sweeper’s displays are in clear view; and the controls are efficiently laid out and easy to reach
  • It is easy to service with the main cylindrical broom and filter replaceable without tools


KM 150/500 R Bp KM 150/500 R BP 25B KM 150/500 R LPG KM 150/500 R BLP 25B
Power Battery 48 V / 10 kwBattery 48 V / 10 kwLPG 22 kwLPG 22 kw
MotorDC motorDC motor4-stroke Kubota engine4-stroke Kubota engine
Max. area performance (sq ft/hr)198,752198,752198,752198,752
Working width, main broom (in)47474747
Working width, ½ side brushes (in)59715971
Waste container capacity (gal)132132132132
Climbing capacity (%)12121818
Working speed (mph)5577
Filter area (sq ft)75757575
Weight (lbs)5,6505,6503,1193,119
Dimensions, L x W x H (in)96 x 61 x 6596 x 61 x 6596 x 61 x 6596 x 61 x 65

Details of specifications and equipment may change without notice.

Download the Kärcher KM 150/500 R Ride-On Sweeper brochure
