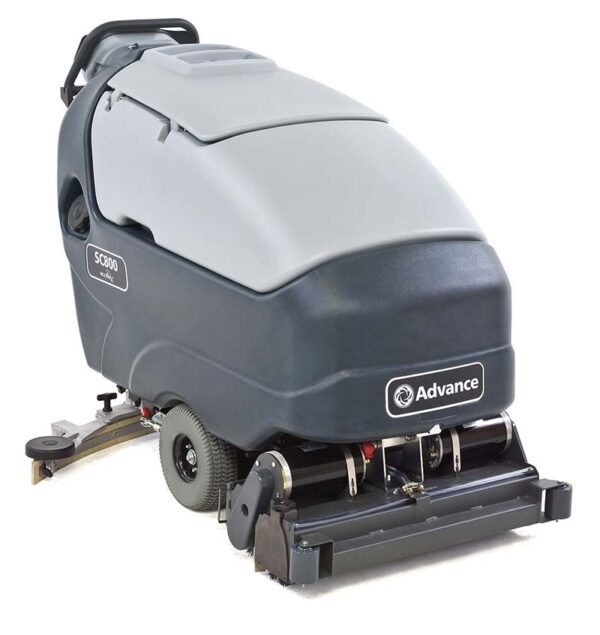

Advance SC800 Walk-Behind Scrubber
Simple operation, flexible performance Advance’s rugged, low-maintenance SC800™ scrubbers deliver incredible value on a walk-behind platform.
High productivity per tankful allows the Advance SC800 Walk-Behind floor scrubber to have 84 minutes of continuous scrubbing, which reduces dump/refill cycles and helps provide fast ROI. The optional EcoFlex™ System offers the flexibility to clean across the entire cleaning spectrum from green to clean. At the touch of a button one can switch from chemical free cleaning to using an ultra low dilution ratio, and of course detergent can be used at full strength for the toughest of soils. The burst of power feature lets you easily apply more pressure, more solution and more detergent at the touch of a single button. With the flexibility to easily apply the right scrubbing performance for the job, you’ll use less detergent, minimize water use and save on cleaning costs.
- Available in 26, 28, or 34 inch disc and 28 inch cylindrical scrub paths
- Smart Solutions or EcoFlex System on all machines
- Green cleaning and high productivity technology
- 25 gallon solution and recovery tanks
- Self adjusting skirt on disc machines
- Heavy duty scrubbing performance
Specifications
Model | 56112442 | 56112041 |
---|---|---|
Scrub head type | Cylindrical | Disc |
Scrub path | 28 in ( 71 cm) | 34 in (86 cm) |
Productivity rate theoretical/actual | Theoretical Max. @ 3.4 mph (5.5 kph) - 41,900 sq ft/hr (3,890 sq m/hr) / Est. Coverage @ 2.3 mph (3.7 kph) - 28,366 sq ft/hr (2,635 sq m/hr) | Theoretical Max. @ 3.4 mph (5.5 kph) - 50,900 sq ft/hr (4,730 sq m/hr) / Est. Coverage @ 2.3 mph (3.7 kph) - 34,400 sq ft/hr (4,000 sq m/hr) |
Brush Pad/Driver Assembly | (2) 27 in (68.6 cm) | (2) 17 in (43.0 cm) |
Scrub pressure - regular scrub | 80 lb (36.3 kg) | 80 lb (36.3 kg) |
Scrub pressure - extreme scrub | - | 170 lb (77.1 kg) |
Scrub disc/brush speed | 840 rpm | 270 rpm |
Onboard detergent | EcoFlex™ Optional (N/A on ST Models | EcoFlex™ Optional (N/A on ST Models |
Low flow rate | 0.25 gal/min (0.98 L/min) - 101 mins | 0.25 gal/min (0.98 L/min) - 101 mins |
Medium flow rate | 0.50 gal/min (1.93 L/min) - 54 mins | 0.50 gal/min (1.93 L/min) - 54 mins |
High flow rate | 0.65 gal/min (2.46 L/min) - 40 mins | 0.65 gal/min (2.46 L/min) - 40 mins |
Solution tank (L) | 21 gal (80 L) | 25 gal (95 L) |
Solution control | Standard Models - Gravity feed with pulsating solenoid technology and liquid level sensing / ST Models - Gravity feed with pulsation solenoid technology | Standard Models - Gravity feed with pulsating solenoid technology and liquid level sensing / ST Models - Gravity feed with pulsation solenoid technology |
Propel speed | Transporting - 3.6 mph (5.8 km/hr) / Scrubbing - 3.4 mph (5.5 km/hr) | Transporting - 3.6 mph (5.8 km/hr) / Scrubbing - 3.4 mph (5.5 km/hr) |
Batteries | (24 V System) (4) 6 V batteries: 242 Ah Wet or 310 Ah Wet or 312 Ah maintenance-free (AGM) | (24 V System) (4) 6 V batteries: 242 Ah Wet or 310 Ah Wet or 312 Ah maintenance-free (AGM) |
Battery charger | Standard Models - 24 Volt Shelf or Onboard Charger / ST Models - Shelf Charger Only | Standard Models - 24 Volt Shelf or Onboard Charger / ST Models - Shelf Charger Only |
Drive wheels (cm) | (2) 10 in (25.4 cm) diameter solid, gray - non-marking polyurethane | (2) 10 in (25.4 cm) diameter solid, gray - non-marking polyurethane |
Length standard model | 58.5 in (149 cm) | 63.3 in (161 cm) |
Length ST Model | 56.8 in (144 cm) | 61.5 in (156 cm) |
Width without squeeegee | 30.8 in (78 cm) | 36.8 in (93 cm) |
Width with squeegee | 35.5 (90 cm) | 41.5 in (105 cm) |
Height Standard Model | 45.1 in (115 cm) | 45.1 in (115 cm) |
Height ST Model | 44.5 in (113 cm) | 44.5 in (113 cm) |
Max. dry weight without batteries | 347 lb (158 kg) | 375 lb (170 kg) |
Max. dry weight including std. batteries | 615 lb (280 kg) | 643 lb (292 kg) |
Min. aisle turn (cm) | 65 in (1.65 m) | 65 in (1.65 m) |
Sound level | 61 dB (A) @ Operator's position | 61 dB (A) @ Operator's position |
Recovery tank (L) | 21 gal (80 L) | 25 gal (95 L) |
Vacuum fan motor | 0.66 hp (490 W) | 0.66 hp (490 W) |
Vacuum waterlift | 51.2 in (130 cm) | 51.2 in (130 cm) |
Vacuum fan | 3-Stage | 3-Stage |
Speed control | Standard Models - Safety paddle system infinity variable with maximum speed limiter settings / ST Models - ON/OFF palm switches with maximum speed limiter settings | Standard Models - Safety paddle system infinity variable with maximum speed limiter settings / ST Models - ON/OFF palm switches with maximum speed limiter settings |
Gradeability | Scrubbing & Transport (Full) - 8.5˚/14.9%; Trailer Ramp (Empty) - 10.0˚/17.6% | Scrubbing & Transport (Full) - 8.5˚/14.9%; Trailer Ramp (Empty) - 10.0˚/17.6% |
Ecoflex prepared | Included | Included |

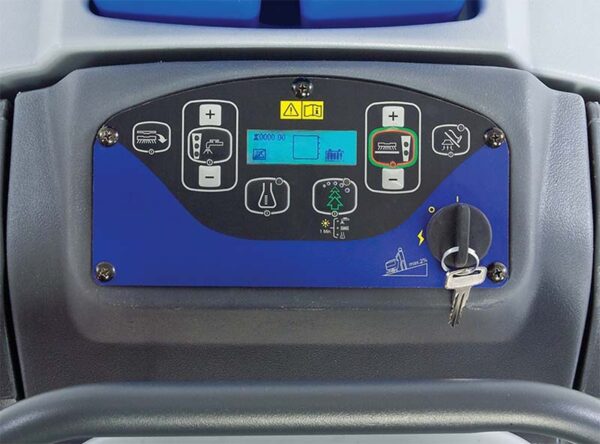

One touch control panel | Included | Included |

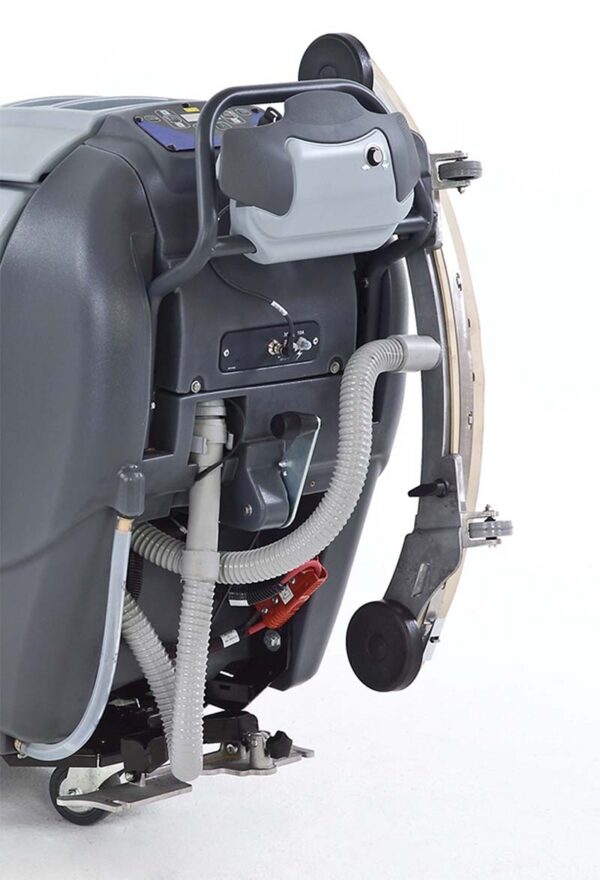

Built-in squeegee hanger | Included | Included |
Low working sound level | Included | Included |
Non-marking Wheels | Included | Included |
Details of specifications and equipment may change without notice. Contact TMHS for specifications on additional SC800 models.
