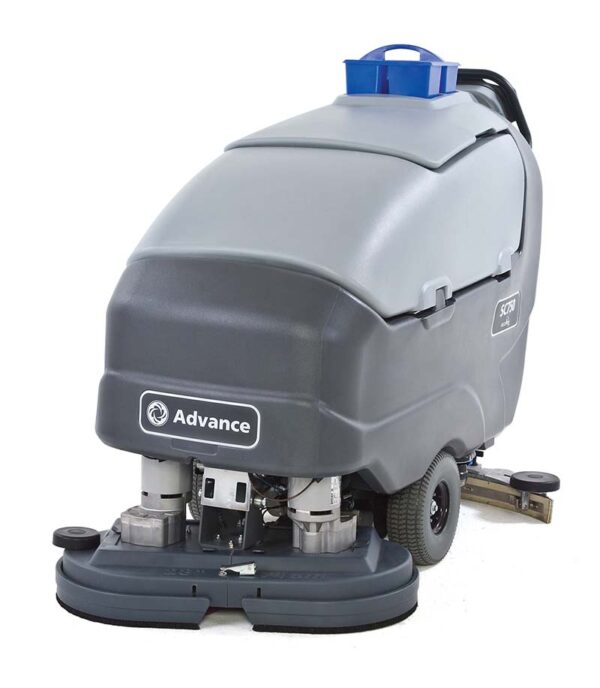

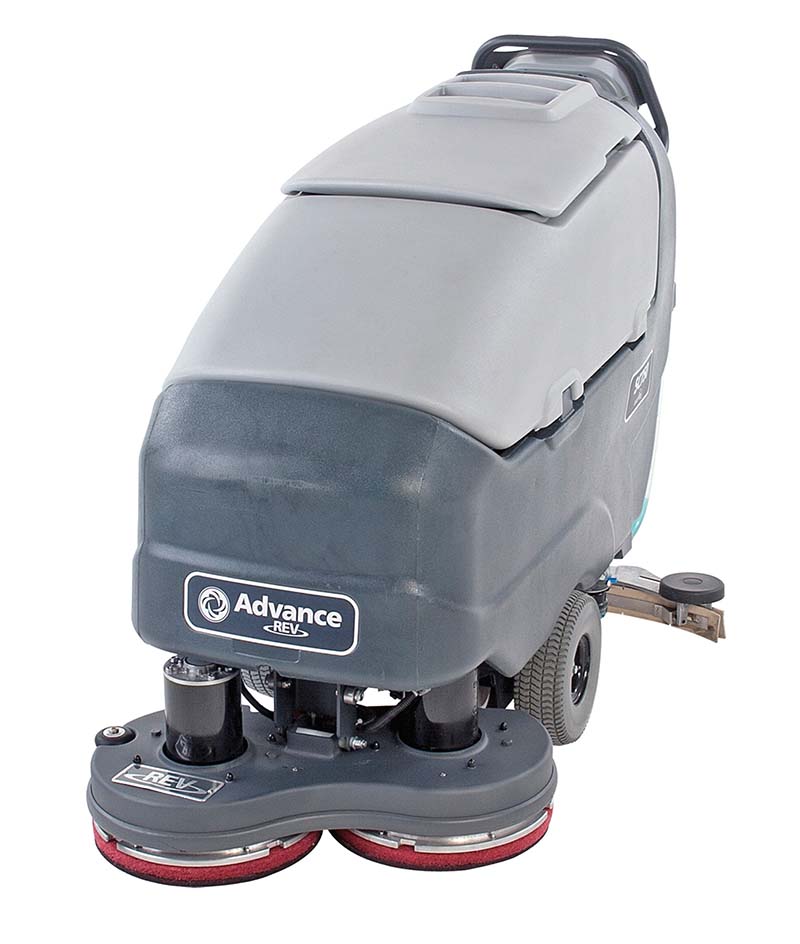

Advance SC750 Walk-Behind Scrubber
Simple operation, flexible performance Advance’s rugged, low-maintenance SC750™ scrubbers deliver incredible value on a walk-behind platform.
High productivity per tankful allows the Advance SC750 Walk-Behind floor scrubber to have 84 minutes of continuous scrubbing, which reduces dump/refill cycles and helps provide fast ROI. The optional EcoFlex™ System offers the flexibility to clean across the entire cleaning spectrum from green to clean. At the touch of a button one can switch from chemical free cleaning to using an ultra low dilution ratio, and of course detergent can be used at full strength for the toughest of soils. The burst of power feature lets you easily apply more pressure, more solution and more detergent at the touch of a single button. With the flexibility to easily apply the right scrubbing performance for the job, you’ll use less detergent, minimize water use and save on cleaning costs.
- Available in 26, 28, or 34 inch disc and 28 inch cylindrical scrub paths
- Smart Solutions or EcoFlex System on all machines
- Green cleaning and high productivity technology
- 21 gallon solution and recovery tanks
- Self adjusting skirt on disc machines
- Heavy duty scrubbing performance
Specifications
| Model | 56112397 | 56112361 | 56112375 |
|---|---|---|---|
| Scrub head type | Disc | Disc | Cylindrical |
| Scrub path | 26 in (66 cm) | 28 in (71 cm) | 28 in (71 cm) |
| Productivity rate theoretical/actual | Theoretical Max. @ 3.4 mph (5.5 kph) - 38,900 sq ft/hr (3,600 sq m/hr) / Est. Coverage @ 2.3 mph (3.7 kph) - 26,300 sq ft/hr (2,400 sq m/hr) | Theoretical Max. @ 3.4 mph (5.5 kph) - 41,900 sq ft/hr (3,890 sq ft/hr) / Est. Coverage @ 2.3 mph (3.7 kph) - 28,366 sq ft/hr (2,635 sq ft/hr) | Theoretical Max. @ 3.4 mph (5.5 kph) - 41,900 sq ft/hr (3,890 sq ft/hr) / Est. Coverage @ 2.3 mph (3.7 kph) - 28,366 sq ft/hr (2,635 sq ft/hr) |
| Scrub pressure - regular scrub | 80 lb (36.3 kg) | 80 lb (36.3 kg) | 80 lb (36.3 kg) |
| Scrub pressure - extreme scrub | 170 lb (77.1 kg) | 170 lb (77.1 kg) | 0.65 gal/min (2.46 L/min) - 40 mins |
| High flow rate | 0.65 gal/min (2.46 L/min) - 32 mins | 0.65 gal/min (2.46 L/min) - 32 mins | 0.50 gal/min (1.93 L/min) - 54 mins |
| Medium flow rate | 0.50 gal/min (1.93 L/min) - 42 mins | 0.50 gal/min (1.93 L/min) - 42 mins | 0.25 gal/min (0.98 L/min) - 101 mins |
| Low flow rate | 0.25 gal/min (0.98 L/min) - 91 mins | 0.25 gal/min (0.98 L/min) - 91 mins | 0.25 gal/min (0.98 L/min) - 101 mins |
| Solution tank (L) | 21 gal (80 L) | 21 gal (80 L) | 21 gal (80 L) |
| Solution control | Standard Models - Gravity feed with pulsating solenoid technology and liquid level sensing / ST Models - Gravity freed with pulsating solenoid technology | Standard Models - Gravity feed with pulsating solenoid technology and liquid level sensing / ST Models - Gravity freed with pulsating solenoid technology | Standard Models - Gravity feed with pulsating solenoid technology and liquid level sensing / ST Models - Gravity freed with pulsating solenoid technology |
| Recovery tank (L) | 21 gal (80 L) | 21 gal (80 L) | 21 gal (80 L) |
| Vacuum fan motor | 0.66 hp (490 W) | 0.66 hp (490 W) | 0.66 hp (490 W) |
| Vacuum waterlift | 51.2 in (130) | 51.2 in (130) | 51.2 in (130) |
| Vacuum fan | 3-Stage | 3-Stage | 3-Stage |
| Speed control | Safety Standard Models - Saftey paddle system infinity variable with maximum speed limiter settings / ST Models - ON/OFF palm switches with maximum speed limiter settings | Safety Standard Models - Saftey paddle system infinity variable with maximum speed limiter settings / ST Models - ON/OFF palm switches with maximum speed limiter settings | Safety Standard Models - Saftey paddle system infinity variable with maximum speed limiter settings / ST Models - ON/OFF palm switches with maximum speed limiter settings |
| Batteries | (24 V System)(4) 6 V batteries: 242 Ah Wet or 310 Ah Wet or 312 Ah maintenance-free (AGM) | (24 V System)(4) 6 V batteries: 242 Ah Wet or 310 Ah Wet or 312 Ah maintenance-free (AGM) | (24 V System)(4) 6 V batteries: 242 Ah Wet or 310 Ah Wet or 312 Ah maintenance-free (AGM) |
| Battery charger | Standard Models - 24 Volt Shelf or Onboard Charger / ST Models - Shelf Charger Only | Standard Models - 24 Volt Shelf or Onboard Charger / ST Models - Shelf Charger Only | Standard Models - 24 Volt Shelf or Onboard Charger / ST Models - Shelf Charger Only |
| Drive wheels (cm) | (2) 10 in (25.4 cm) diameter solid, gray - non-marking polyurethane | (2) 10 in (25.4 cm) diameter solid, gray - non-marking polyurethane | (2) 10 in (25.4 cm) diameter solid, gray - non-marking polyurethane |
| Min. aisle turn (cm) | 62 in (1.57 m) | 62 in (1.57 m) | 65 in (1.65 m) |
| Sound level | (IEC 60704-1) 61 dB (A) at Operator's position | (IEC 60704-1) 61 dB (A) at Operator's position | (IEC 60704-1) 61 dB (A) at Operator's position |
| Drive system | |||
| Approvals | |||
| Length standard model | 58.4 in (148 cm) | 59.9 in (152 cm) | 58.5 in (149 cm) |
| Length ST Model | 56.6 in (144 cm) | 58.1 in (148 cm) | 56.8 in (144 cm) |
| Width without squeeegee | 28.8 in (73 cm) | 30.8 in (78 cm) | 30.8 in (78 cm) |
| Width with squeegee | 35.5 in (90 cm) | 35.5 in (90 cm) | 35.5 in (90 cm) |
| Height Standard Model | 45.1 in (115 cm) | 45.1 in (115 cm) | 45.1 in (115 cm) |
| Height ST Model | 44.5 in (113 cm) | 44.5 in (113 cm) | 44.5 in (113 cm) |
| Max. dry weight without batteries | 347 lb (158 kg) | 347 lb (158 kg) | 347 lb (158 kg) |
| Max. dry weight including std. batteries | 615 lb (280 kg) | 615 lb (280 kg) | 615 lb (280 kg) |
| Propel speed | Transport - 3.6 (5.8 km/hr) / Scrubbing - 3.4 (5.5 km/hr) | Transport - 3.6 (5.8 km/hr) / Scrubbing - 3.4 (5.5 km/hr) | Transport - 3.6 (5.8 km/hr) / Scrubbing - 3.4 (5.5 km/hr) |
| Scrub disc/brush speed | 270 rpm | 270 rpm | 840 rpm |
| Squeegee width | |||
| Dimensions (W/O Squeegee) | |||
| Scrub motor | |||
| Operating weight (MACHINE ONLY) (LB) | |||
| Weight with batteries lbs (kg) | |||
| Gradeability | Scrubbing & Transport (Full) - 8.5˚/14.9%; Trailer Ramp (Empty) - 10.0˚/17.6% | Scrubbing & Transport (Full) - 8.5˚/14.9%; Trailer Ramp (Empty) - 10.0˚/17.6% | Scrubbing & Transport (Full) - 8.5˚/14.9%; Trailer Ramp (Empty) - 10.0˚/17.6% |
| Brush Pad/Driver Assembly | (2) 13 in (33 cm) | (2) 14 in (35.5 cm) | (2) 27 in (68.6 cm) |
| Built-in squeegee hanger | Included | Included | Included |
| Built-in squeegee hanger | Included | Included | Included |
| Low working sound level | Included | Included | Included |
| Non-marking Wheels | Included | Included | Included |
Details of specifications and equipment may change without notice. Contact TMHS for specification information on other SC750 models.
