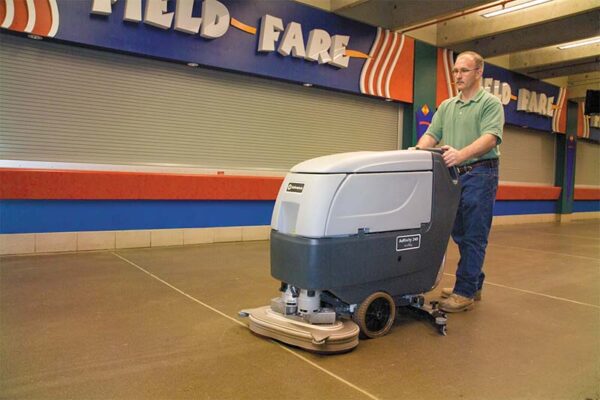

Advance Adfinity Walk-Behind Scrubber
Advance’s Adfinity™ walk-behind floor scrubbers with a 24” scrub path are versatile and easy-to-operate hard floor cleaners in a compact platform. Combined with the optional EcoFlex™ System, this is the choice for sustainable, cost-effective floor scrubbing. In addition, there is a large easy-to-access recovery tank that makes for easy clean-up.
Featuring an easy-to-maneuver platform, interchangeable scrub decks and traction-drive operation, Advance’s Adfinity is an exceptional hard floor cleaning machine. The optional EcoFlex System will help you reduce detergent and water waste, creating a sustainable cleaning solution that’s good for the planet and good for your bottom line.
- Easily operate and maneuver with push button forward and reverse, unique “click on” quick change brushes, pad pressure settings and our exclusive One-Touch™ ergonomic control paddle
- Simplify maintenance with easy access to the battery, recovery tank and detergent dispensing system
- Reduce waste and cleaning costs with Smart Solutions™ flow rate and optional EcoFlex
- Invest in a floor scrubber that’s built to last — rugged construction with durable components
- Lower the possibility of slip-and-fall accidents (Adfinity has received NFSI certification)
- Clean during the day thanks to safe sound levels
- Increase productivity with over 1.5 hours of run time between dump and refill
Specifications
| Model | 56317331 | 56317332 |
|---|---|---|
| Scrub head type | Cylindrical with debris hopper | Cylindrical with debris hopper |
| Drive system | 0.3 hp (200 W) variable forward and reverse Max speed 3.5 mph (5.6 km/hr), 16% gradeability | 0.3 hp (200 W) variable forward and reverse Max speed 3.5 mph (5.6 km/hr), 16% gradeability |
| Scrub pressure lbs (kg) | Floating - 57 lb (26 kg) / Locked - N/A | Floating - 57 lb (26 kg) / Locked - N/A |
| Max. scrub speed | 570 rpm | 570 rpm |
| Squeegee width | 29.9 in (75.9 cm) | 29.9 in (75.9 cm) |
| Dimensions (W/O Squeegee) | L= 49.2 in (125 cm) W = 22.4 in (57 cm) H = 42.9 in (109 cm) | L= 49.2 in (125 cm) W = 22.4 in (57 cm) H = 42.9 in (109 cm) |
| Weight without batteries | 247 lb (112 kg) | 247 lb (112 kg) |
| Weight w/batteries (KG) | Weight w/batteries (KG)362 lb (164 kg) | 362 lb (164 kg) |
| Voltage (V) | 24 V | 24 V |
| Power source | (2) 12 V batteries (wet-acid and maintenance free available) | (2) 12 V batteries (wet-acid and maintenance free available) |
| Onboard charger standard | 24 V wet/maintenance free compatible | 24 V wet/maintenance free compatible |
| Solution tank capacity gal (l) | 14.5 gal (55 L) | 14.5 gal (55 L) |
| Recovery tank capacity gal (l) | 14.5 gal (55 L) | 14.5 gal (55 L) |
| Scrub motor | (2) 0.54 hp (400 W) | (2) 0.54 hp (400 W) |
| Vacuum motor | 0.44 hp (330 W) | 0.44 hp (330 W) |
| Sound level | 65.8 dB A at operator's position | 65.8 dB A at operator's position |
| Approvals | ETL, CSA, CE | ETL, CSA, CE |
| National Recognized Test Lab Certification | - | - |
| Scrub path | Dual 20 in (50.8 cm) Cylindrical brush system | Dual 20 in (50.8 cm) Cylindrical brush system |
| Solution flow rate gpm (l/min.) | Smart Solutions™ variable up to 0.15 gal/min (0.55 L/min) 0.3 gal/min (1.1 L/min) | Smart Solutions™ variable up to 0.15 gal/min (0.55 L/min) 0.3 gal/min (1.1 L/min) |
| Max. productivity | @ 3.0 mph (4.8 km/hr) 26,400 sq ft (2,453 sq m) | @ 3.0 mph (4.8 km/hr) 26,400 sq ft (2,453 sq m) |
| Interchangeable brush deck | Included | Included |
| Ecoflex installed | Included | Included |
| Ergonomic handle | Included | Included |
| No tool brush removal | Included | Included |
| Easy-to-access recovery tank | Included | Included |
| Easy-to-access recovery tank | Included | Included |
| Large Diameter Traction Wheels | Included | Included |
Details of specifications and equipment may change without notice. For specifications on disk models 56317333 and 56317334, please contact TMHS.
