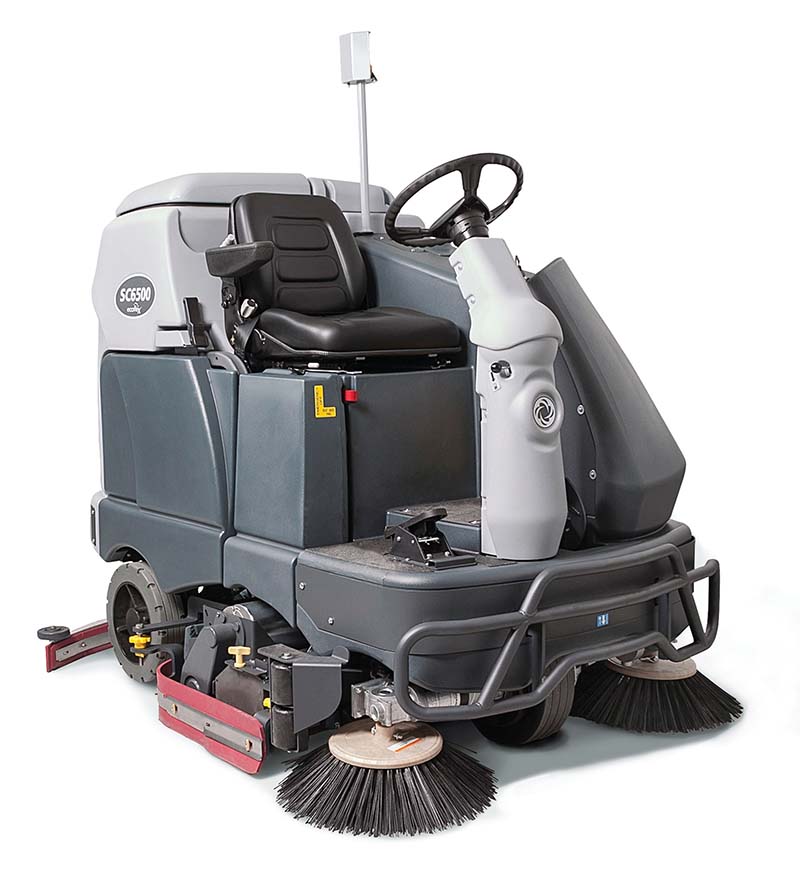

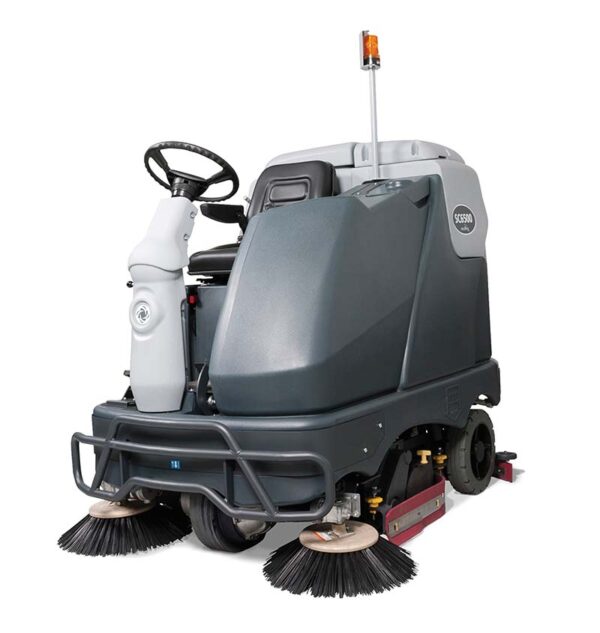

Advance SC6500 Rider Scrubber
Advance’s SC6500™ rider floor scrubber combines effortless control and efficient, sustainable scrubbing in one powerful, compact package — ideal for demanding applications including supermarkets, warehouses, manufacturing plants, airports, universities and more. In addition, this system provides customizable settings to save water, chemical and brushes.
Advance’s SC6500 combines aggressive cleaning performance with the tightest turning radius in its class. Delivering efficient single-pass cleaning, heavy-duty, durable construction and the versatility to adapt to any job, including the optional EcoFlex™ System to help you reduce costs by saving water and detergent.
- Choose the right floor scrubber for your application — 3 scrubbing widths (40”, 45”, or 48”) in either cylindrical or disc scrubber configurations
- Maximize scrubbing time with the large 70 gal. solution and recovery tanks
- Clean floors in a single pass thanks to the high-power scrub deck powered by dual 1.5 hp motors
- Monitor performance and improve productivity with the optional TrackClean™ centralized fleet management system
- Invest in a floor scrubber that’s built to last — industrial bumper, frame-mounted deck protection and high-strength tubular, steel construction
- Reduce total cost of ownership and ensure smooth, quiet, precise control with the maintenance-free AC brushless propulsion system
- Effectively edge clean with the offset scrub deck and standard side broom on cylindrical models
Specifications
Model | 56414030 | 56414040 |
---|---|---|
Scrub deck type | Cylindrical | Disc |
Scrub path in. (cm) | 40 in (102 cm) | 45 in (114 cm) |
Max. scrubbing coverage rate per hour | 96,800 | 108,900 |
Brush size in (cm) | 40 in x 8.5 in (102 cm x 22 cm) | 3 x 16 in (41 cm) |
Scrub brush speed | 630 rpm | 225 rpm |
Brush motor power | 2 x 1.5 hp (1.13 kW) | 3 x 1.5 hp (1.13 kW) |
Sweeping path | 57 in (145 cm) | |
Debris hopper capacity ft³ (l) | 0.40 cu ft (11 L) | |
Solution/recovery tank capacity | 70 gal (265 L) | 70 gal (265 L) |
Vacuum motor | 0.8 hp (0.6 kW) - dual vac optional | 0.8 hp (0.6 kW) - dual vac optional |
Vacuum waterlift | Single Vac - 64 in (163 cm) / Dual Vac - 67 in (170 cm) | Single Vac - 64 in (163 cm) / Dual Vac - 67 in (170 cm) |
Battery options / run time | 36 V, 420 Ah C20 - Up to 3.0 hrs. - 40 Cyl / 3.5 hrs. - 40 Disc 36 V, 450 Ah C6 (monoblock) - Up to 3.75 hrs. - 40 Cyl / 4.75 hrs. - 40 Disc | 36 V, 420 Ah C20 - Up to 3.0 hrs. - 40 Cyl / 3.5 hrs. - 40 Disc 36 V, 450 Ah C6 (monoblock) - Up to 3.75 hrs. - 40 Cyl / 4.75 hrs. - 40 Disc |
Propulsion system | Variable speed AC brushless drive | Variable speed AC brushless drive |
Propel speed forward | 6.0 mph (9.5 km/h) | 6.0 mph (9.5 km/h) |
Propel speed reverse | 3.0 mph (5 km/h) | 3.0 mph (5 km/h) |
Propel motor (peak) | 3.0 hp (2.25 kW) | 3.0 hp (2.25 kW) |
Gradeability transport % (DEG) | @ Gross Weight Scrubbing 16% (9˚) 10.5% (6˚) | @ Gross Weight Scrubbing 16% (9˚) 10.5% (6˚) |
Length | 74 in (187 cm) | 74 in (187 cm) |
Width | 48 in (121 cm) | 52 in (131 cm) |
Height | 50 in (149 cm) | 50 in (149 cm) |
Weight with batteries - GVW | 3,325 lb (1,508 kg) | 3,270 lb (1,483 kg) |
Weight without batteries | 2,897 lb (1,314 kg) | 2,842 lb (1,289 kg) |
Sound level | IEC 60335-2-72, ISO 11201* 70 db A | IEC 60335-2-72, ISO 11201* 70 db A |
Min. aisle turn (cm) | 84 in (214 cm) | 84 in (214 cm) |
Dual Side Broom Standard | Included | Included |
One touch control panel | Included | Included |
Frame-mounted Rollers | Included | Included |
Dual Vacuum | Included | Included |
Non marking traction wheels | Included | Included |
Dual-Disc Brakes | Included | Included |
Adjustable steering | Included | Included |
Offset deck | Included | Included |
Clear-View™ | Included | Included |
Tilting steering column | Included | Included |
Details of specifications and equipment may change without notice. Please contact TMHS for additional models and specifications.
