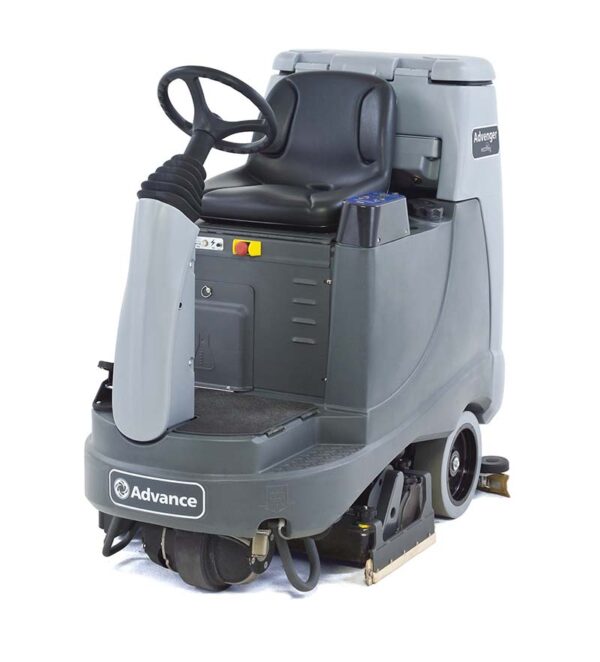

Advance Advenger Rider Scrubber
Advance’s Advenger® family of rider scrubbers combines cleaning versatility, productivity and sustainability in one efficient machine — making it ideal for jobs both big and small in hospitals, schools, grocery stores, warehouses, hotels and more.
Advance’s easy-to-operate, highly maneuverable Advenger is available in three unique models — disc, cylindrical and our patented REV™ Technology — to meet any cleaning challenge, and comes equipped with the green-cleaning EcoFlex™ System, to save you money on water and detergent while maximizing your runtime.
- Reduce your costs and environmental impact with the standard onboard EcoFlex System
- Improve safety and usability with our One-Touch™ control panel, easily accessible rider compartment and excellent sight lines
- Clean in hard-to-reach areas thanks to the tight, easily maneuverable steering
- Adjust scrubbing pressure for use in a wide range of cleaning applications, from daily scrubbing to restoration
- Work during the day thanks to the extremely low sound levels
Specifications
| Model | 56601635 |
|---|---|
| Scrub head type | Cylindrical |
| Cleaning path | 28 in |
| Sound pressure level (dB(A)) | 63.7 dB A (IEC 60704-1/ISO 11201) |
| Max. cleaning speed | 3.12 mph (4.8 kph) |
| Max. coverage per hour @ 3.12 MPH | 39,424 sq ft (3,663 sq m) |
| Solution tank capacity gal (l) | 28 gal (106 L) |
| Recovery tank capacity gal (l) | 29 gal (110 L) |
| Power source | 24 VDC |
| Brush motor hp (W) | 0.5 hp (373 W) |
| Brush speed (RPM) | 900 RPM |
| Scrub pressure - regular scrub | Scrub pressure - regular scrub |
| Scrub pressure - heavy scrub | 80 lb (36 kg) |
| Scrub pressure - extreme scrub | 100 lb (45 kg) |
| Drive motor hp (W) | 1.05 hp (780 W) |
| Vacuum motor | 0.75 hp (560 W) |
| Sealed waterlift | 63 in H2O (15.7 kPa) |
| Max. airflow rate (cfm) | 66 @ 2 in (5 cm) orifice |
| Body length | 60 in (152 cm) |
| Body height | 51.7 in (131 cm) |
| Body width | 27.5 in (70 cm) |
| Max. width w/o squeegee | 32 in (81 cm) |
| Squeegee width | Squeegee width32.6 in (83 cm) |
| Max. weight w/o batteries | 536 lb (244 kg) |
| Max. weight (full solution tank and largest batteries) | 1,451 lb (658 kg) |
| Max. shipping weight | 1,400 lb (635 kg) |
| Gradeability transport % (DEG) | 16% (9 degrees) |
| Max. PSI | 175 PSI (12.3 kg/sq cm); (Full tank and 200 lb rider) |
| Max. transport speed mph (km/h) | 3.91 mph (6.3 kph) |
| Low flow rate | 0.33 gal/min (1.25 L/min) |
| Medium flow rate | 0.66 gal/min (2.50 L/min) |
| High flow rate | 1.0 gal /min (3.79 L/min) |
| Productivity per tankful | 85 mins (Scrubbing); N/A (Floor Finish Removal) |
| Min. aisle turn (cm) | 63 in (160 cm) |
| Gradeability - Cleaning | 9% (5 degrees) |
| Ecoflex installed | Included |
| Adjustable steering | Included |
| Open machine design | Included |
| Non marking traction wheels | Included |
| Large recovery tank opening | Included |
| Built-in squeegee hanger | Included |
| Low step for easy on/off | Included |
| Refillable cartridges | Included |
Details of specifications and equipment may change without notice. Please contact TMHS for additional models and specifications.
