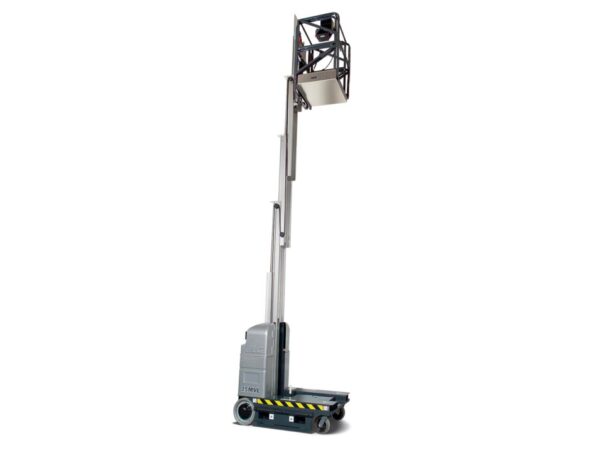

JLG MVL Mobile Vertical Lifts
Whether you’ve got work to do in factories, retail centers, airports or public buildings, JLG® Mobile Vertical Lifts keep you on the job longer. A pair of reliable direct electric drive motors deliver power while maintenance-free long cycle batteries hold their charge. The built-in, automatic charger has a five-hour recharge capability. Three platform options with exclusive one-minute quick-change mountings let you get maintenance jobs done efficiently.
- Heavy duty planetary gear drive motors with five times the life of previous models
- Low-maintenance anodized aluminum mast
- Quick-change platform mounting
- Oversized 26-inch wide by 28-inch long platform
- Safety interlocked controls
- Pistol-grip platform control
- Single joystick drive and steer control; solid state microprocessor controlled
- Variable speed elevation controls
- Automatic pot hole protection system
- 1½ degree tilt alarm and control
- Maximum drive height is full height
- Zero turning radius
Specifications
MODEL NUMBER | PLATFORM HEIGHT (IN.) | PLATFORM CAPACITY (LBS.) | OVERAL HEIGHT STOWED (IN.) | OVERALL LENGTH (IN.) | CHASSIS WIDTH* (IN.) | WEIGHT (LBS.) |
---|---|---|---|---|---|---|
15MVL | 182 | 500 | 78 | 53.5 | 29.5 | 2,320 |
20MVL | 228 | 350 | 78 | 53.5 | 29.5 | 2,320 |
* Platform width vary from 22.6” to 32.2”
Details of specifications and equipment may change without notice.
