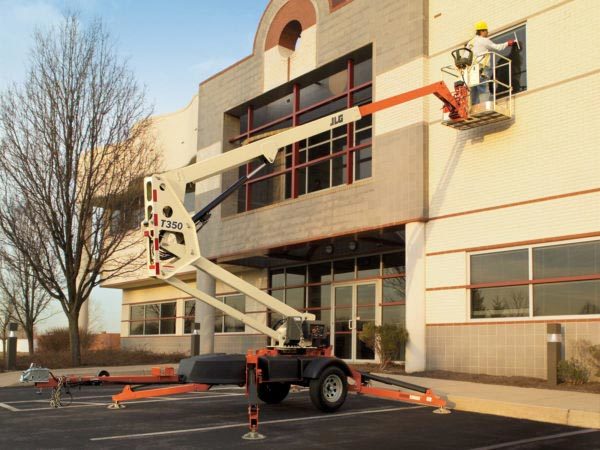

JLG Towable Boom Lifts
JLG Tow-Pro® Series towable boom lifts, known to some as cherry pickers or bucket lifts, give you the reach and mobility you need. With the standard combination hitch, industry-leading 65-mph tow behind speed and hydraulic auto-leveling outriggers, you can have this towable boom lift brought to the job site and working in no time.
- 35 and 50-foot models

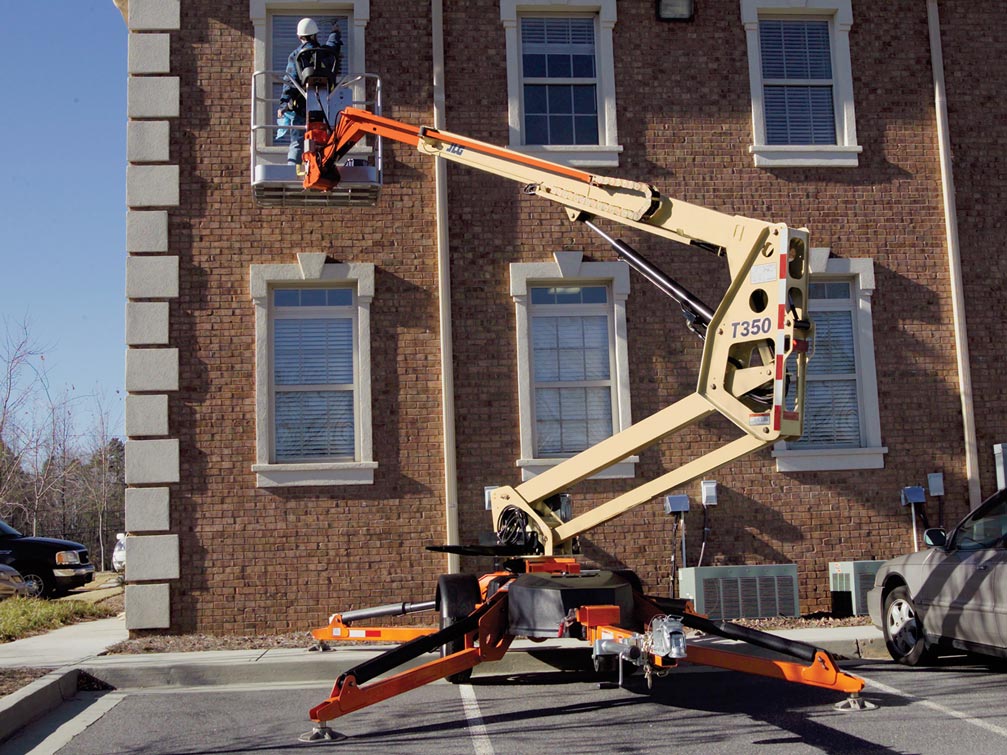

- Hydraulic auto-leveling outriggers for faster and easier set-up
- 24-volt DC electric motor
- Gasoline powered Honda GX 270 engine (option)
- Platform controls with one-hand operation of boom function
- Accessory mounting tray accommodates customer-provided generator, air compressor or pressure washer
- Standard air and water lines to the platform
- Drive and set from the platform (optional)
Specifications
| MODEL NUMBER | PLATFORM HEIGHT (IN.) | PLATFORM CAPACITY (LBS.) | HORIZONTAL OUTREACH (IN.) | OVERALL WIDTH (IN.) | WEIGHT (LBS.) |
|---|---|---|---|---|---|
| T350 | 413 | 500 | 242 | 59 | 3,400 |
| T500J | 602 | 500 | 354 | 67 | 4,800 |
Details of specifications and equipment may change without notice.
