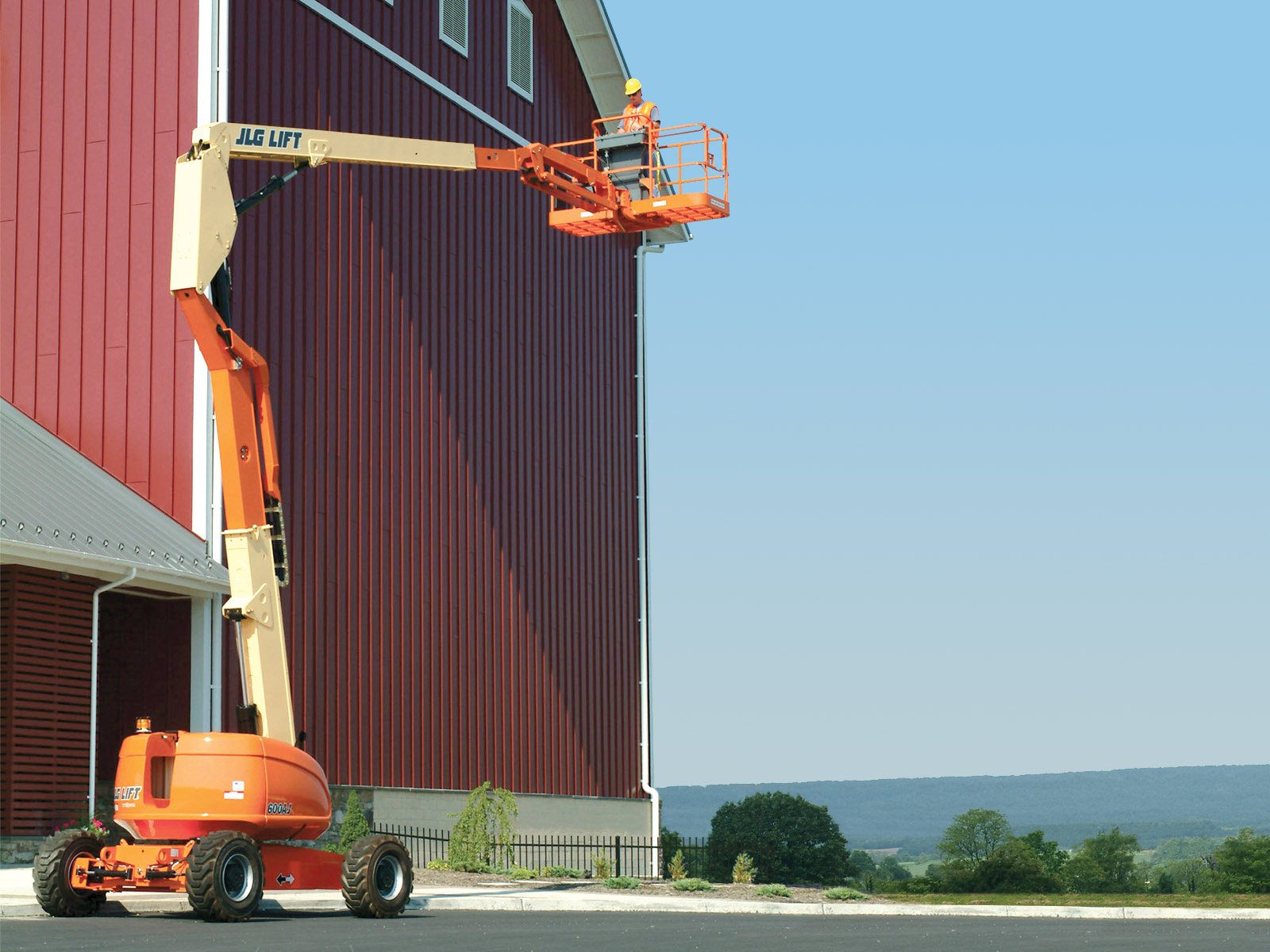

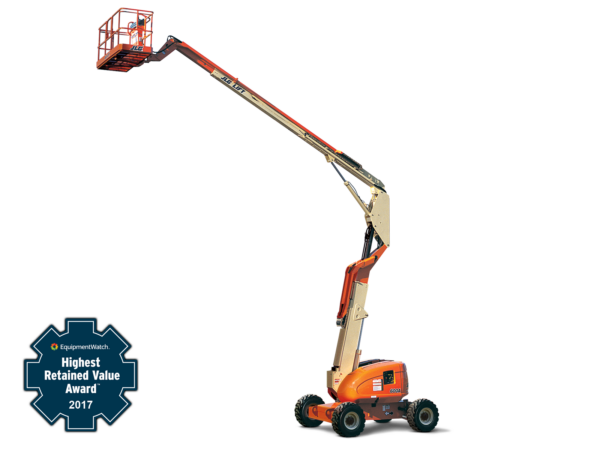

JLG 600 Series Articulating Boom Lifts
The JLG 600 Series articulating boom lifts features a narrow chassis option for access to confined areas and the industry’s best work envelope. A standard oscillating axle and optional four-wheel drive give you outstanding drive performance on rough terrain. Jib-equipped models add 70 degrees of upward and 60 degrees of downward motion to get you into those hard-to-reach places.
- Choice of chassis width available
- 2-wheel or 4-wheel drive
- Oscillating axle
- Control Advanced Design. Electronics (ADE)® System
- 110-volt AC receptacle in platform
- Easy access swing-out engine tray
Specifications
| MODEL NUMBER | PLATFORM HEIGHT (IN.) | PLATFORM CAPACITY RESTRICTED (LBS.) | PLATFORM CAPACITY UNRESTRICTED (LBS.) | HORIZONTAL OUTREACH (IN.) | UP AND OVER HEIGHT (IN.) | OVERALL WIDTH (IN.) | WEIGHT (LBS.) |
|---|---|---|---|---|---|---|---|
| 600A | 725 | 1,000 | 500 | 475 | 319 | 98 | 21,640 |
| 600A Narrow | 725 | 1,000 | 500 | 475 | 319 | 84 | 24,100 |
| 600AJ | 727 | N/A | 500 | 465 | 319 | 98 | 22,240 |
| 600AJ Narrow | 727 | N/A | 500 | 465 | 319 | 84 | 24,200 |
Details of specifications and equipment may change without notice.
