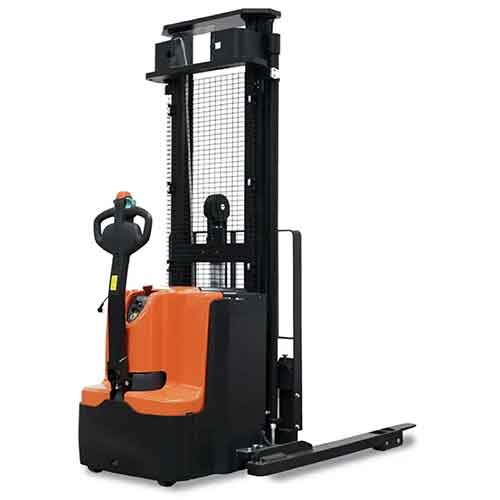

Noblelift Straddle- Leg Electric Stacker (3500- 4000 lb. capacity)
Noblelift’s PS35/40 TSL 3500-4000 lb. capacity electric straddle-leg walkie’s robust construction are professional grade, fully electric stackers and are available in 2 different lift heights. This is the ideal choice for handling loads in the most demanding warehouse applications.
This highly productive competitively priced ergonomic stacker is equipped with German Schabmueller maintenance free AC Drive motor, German Kordel gearbox, Intorqe brake, wicke drive wheel, and an Italian ZAPI controller. In addition, the long tiller design allows you to keep a safe distance from the equipment during operations. The robust chassis has a thick 0.3 inch apron to protect it from outside impacts during operations.
Noblelift’s PS35/40 TSL 3,500-4,000 lb. capacity, electric walkie straddle-leg walkie is perfect for the most demanding applications. The CAN-bus technology allows for fewer wires and easy service and maintenance. There is an electronically controlled proportional lifting system that ensures accurate positioning and stacking operations.
- 3,500 - 4,000 lb. capacity
- Adjustable straddle leg design
- Built in USB-connector
- CAN- BUS technology
- Electronically controlled proportional lifting system
- ZAPI Controller
- Long Tiller Design
- Easy service and maintenance without additional devices
- Short lead time for quick delivery
Noblelift’s Edge PS35/40 TSL electric walkie staddle-leg stacker offers improved productivity for your operations with a value price.
- German AC drive technology: Equipped with powerful German Schabmueller maintenance free AC Drive motor, German Kordel gearbox, Intorqu brake, Wiche drive wheel, and an Italian ZAPI controller.
- Long tiller design for ergonomics and aafety: The long design ensures lower operational forces and the height is naturally positioned for optimum ergonomics.
- German control handle equipped with dual butterfly-style thumb controls, horn button and belly button.
- Electrically controlled proportional lifting system for accurate positioning and stacking operations and a crawl speed button for tight spaces.
- Adjustable straddle-leg design for diverse pallet sizes and stability.
- Built-in USB connector for charging of additional devices during operations.
- Maintenance friendly: Remove 2 screws from the main cover to access all components.
- Drive and castor wheel easy to exchange without craning the truck and long lasting battery capacities.
- Robust chassis with strong .31-inch-thick apron to protect against outside impact.
- Strong metal battery cover and IP 54 protected controller.
- Vertical AC motor design and brake are out of reach of direct impact.
- Key switch limits access to approval personal and emergency power disconnect.
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) |
|---|---|---|---|---|
| PS35TSL (181) | 3520 | 3.4/3.7 | 17.72/27.56 | 6/12 |
| PS40TSL (181) | 3960 | 3.4/3.7 | 25.59/35.43 | 6/10 |
** Contact TMHS for Spec Details
Details of specifications and equipment may change without notice.
DOWNLOAD THE Noblelift PS35/40 TSL Electric Walkie Staddle- Leg Stacker brochure
Noblelift's Edge PS35/40 TSL electric walkie staddle- leg stacker offers improved productivity for your operations with a value price. Download a brochure to learn how the Noblelift stackers can help your business today.
