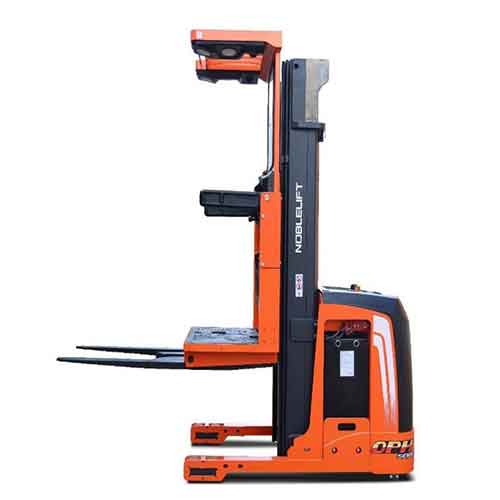

Noblelift OPH 12/ OPH 12K Electric Order Picker
The Noble lift OPH 12/ OPH 12K Electric Order Picker is the optimal choice for warehouses. This unit is equipped with a compact and ergonomic design, high performance AC drive, high capacity battery.
This high- strength and high- precision equipment is constructed with a wide chassis to allow the platform to reach a higher pick- up area, with a maximum picking height of up to 9 meters.
Noblelift’s OPH 12/ OPH 12K Electric Order Picker is highly efficient and works great for many applications. The wide robust chassis allows the platform to reach a higher pick- up area.
- OPH 12/ OPH 12K Electric Order Picker
- 2646 lb. load capacity
- High- quality LED screen
- Robust Chassis
- Speed reduction at turns
- Pallet- locking
- Real- time dynamic adjustment of key parameters on basis of the truck’s current state
- High- quality LED screen for easy access to information at a glance
Features & Advantages: Noblelift’s OPH 12/ OPH 12K Electric Order Picker offers improved productivity for your operations at a great price.
- Speed reduction at turns to help ensure better maneuverability especially at high speed modes.
- Auto pallet- locking device capable of securely clamping pallet stringers ranging from 32mm to 150mm, providing instant load stabilization and significantly boosting load handling speed.
- Equipped with self- retracting fall limiter and safety belt, which provides good protection for operator.
- Travel speed, lifting height, and loading capacity operate as an integrated system, ensuring optimal performance and safety.
- The mast mechanism is crafted from high- strength and high- precision steel sections, and the excellent gap compensation structure design ensures the stability of the mast operation.
- The chassis is available in two widths, 1080mm and 1420 mm, and the wide chassis allows the platform to reach a higher pick- up area, with a maximum picking height of up to 9 meters.
- Highly configured core components: enhancing efficiency, minimizing energy consumption. Featuring AC drive, high- performance motors, imported gearbox, control programs tailored for high racks, satisfying carious working conditions.
- Large- capacity battery, maximum battery capacity 24V/ 1000Ah; optional lithium battery, to meet the daily work of most of the warehouses.
Specifications
| MODEL NUMBER | LOAD CAPACITY* | Load Center Distance | MAX. TRAVEL SPEED FULL LOAD | MAX. LIFT SPEED FULL LOAD (FPM) | Battery Voltage (V/Ah) |
|---|---|---|---|---|---|
| OPH12 | 1200 kg. | 600 mm. | 9 km/h | 0.15/0.23 m/s | 24V/1000 |
| OPH12 | 2464 lb.3000 | 23.6 in. | 5.6 mph | 0.49/0.75 fps | 24V/1000 |
** Contact TMHS for Spec Details
Details of specifications and equipment may change without notice.
DOWNLOAD THE Noblelift’s OPH 12/ OPH 12K Electric Order Picker brochure
Noblelift’s OPH 12/ OPH 12K Electric Order Picker offers new and improved features at a great price. Download a brochure to learn how the Noblelift Order Picker can help your business today.
