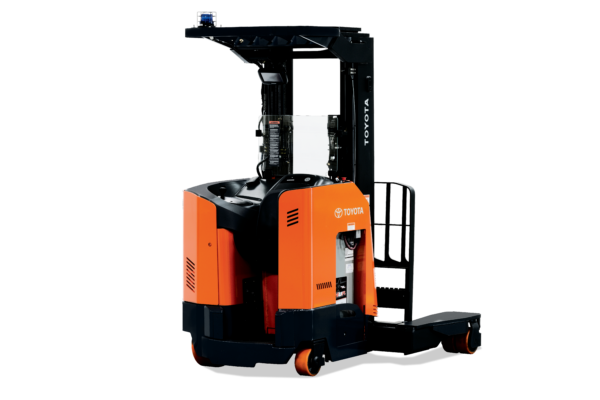

Multidirectional Reach Truck
Toyota’s Multidirectional Reach Truck is an innovative alternative to the traditional wide and bulky load reach trucks. The additional articulating load wheels allow the forklift to travel horizontally, permitting compact travel and stacking wide loads in narrow aisles without the need to turn. With the added ability to travel parallel or perpendicular, this will help increase uptime during operations and get you to racks quickly. There are a multifunctional control handle and this unit has a 268 inch maximum light height.
Toyota’s Multidirectional Reach Trucks deliver on efficiency, safety and performance like never before. With many new, unique features coupled with the longstanding productivity, ergonomics and low cost of ownership you expect from Toyota, the Toyota Reach Truck line opens up new opportunities in warehouses and distribution centers.
- 2,500 – 4,500 lb. capacity
- Newly designed mast and pantograph
- Lead Acid Battery Type
- Spacious, ergonomic compartment
Learn more about the Toyota Reach Truck and why it is a great option to improve your overall bottom line.
- Redesigned mast and pantograph for superior durability and productivity
- Excellent narrow-aisle maneuverability for warehouse, distribution center and manufacturing use
- Increased run time between charges gives you the performance advantage to rack more goods, more productively and efficiently
- Tuned for efficiency with an AC motor and motor controllers you can adjust to prioritize pure productivity or run time
- Reduced downtime by design including easily replaceable load wheel plates, no tools necessary for protective cover removal, spin-on hydraulic filter and easy-to-drain hydraulic tank
- Single-axis control handle reduces chance of truck movement during hydraulic operation, reducing likelihood of rack and product damage
- Spacious operator compartment with low 9.25-inch step height, no trip points, stable floor position and very low brake pedal for increased operator comfort and productivity
- Fully programmable performance adjustment via electronic display for seamless operator charges
- More productive by design including the ability to reach/retract and lift/lower at the same time
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. GRADEABILITY FULL LOAD (%) | LOAD CENTER |
|---|---|---|---|---|
| RF1-MD1X45 | 4,500 | 7(11.3) | 7 | 24(600) |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- 36-Volt electrical system
- AC-powered drive system with torque control
- AC hydraulic system
- UL-approved model type “E”
- Two speed reach/ retract
- 7" Color Touchscreen Display Panel
Ergonomics / Operability
- Bubble Cushioned Padded Floor & Brake Pedal
- Low Step Height
- Overhead Guard
- Safety Glass Mast Guard
- Comfort- Padded Lead Points
- Cushioned Knee Pad
Ease of Service
- Battery Compartment Rollers
- Battery Retaining Gates (Adjustable)
- Battery Discharge Indicator w/ Lift Interrupt
- Self Diagnostics
- Emergency Power Disconnect Switch
- Electro- Mechanical Horn
- Key Switch
Safety
- High-visibility overhead guard
- Electric horn
- Emergency power disconnect switch
- Anti-static ground strap
Optional Equipment
- Custom Mast Height
- Various Fork Length Options
- Compartment Sensing System
- Battery Side Gate Interlock
- Cold Storage/ Freezer Conditioning
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. GRADEABILITY FULL LOAD (%) | LOAD CENTER |
|---|---|---|---|---|
| RF1-MD1X45 | 4,500 | 7(11.3) | 7 | 24(600) |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- 36-Volt electrical system
- AC-powered drive system with torque control
- AC hydraulic system
- UL-approved model type “E”
- Two speed reach/ retract
- 7" Color Touchscreen Display Panel
- Bubble Cushioned Padded Floor & Brake Pedal
- Low Step Height
- Overhead Guard
- Safety Glass Mast Guard
- Comfort- Padded Lead Points
- Cushioned Knee Pad
- Battery Compartment Rollers
- Battery Retaining Gates (Adjustable)
- Battery Discharge Indicator w/ Lift Interrupt
- Self Diagnostics
- Emergency Power Disconnect Switch
- Electro- Mechanical Horn
- Key Switch
- High-visibility overhead guard
- Electric horn
- Emergency power disconnect switch
- Anti-static ground strap
- Custom Mast Height
- Various Fork Length Options
- Compartment Sensing System
- Battery Side Gate Interlock
- Cold Storage/ Freezer Conditioning
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Multidirectional Reach Truck brochure
Years of planning have led to a new level of productivity, uptime and cost effectiveness in the new Toyota Multidirectional Reach Truck. Download a brochure to find out more about the next big thing in narrow aisle performance.
