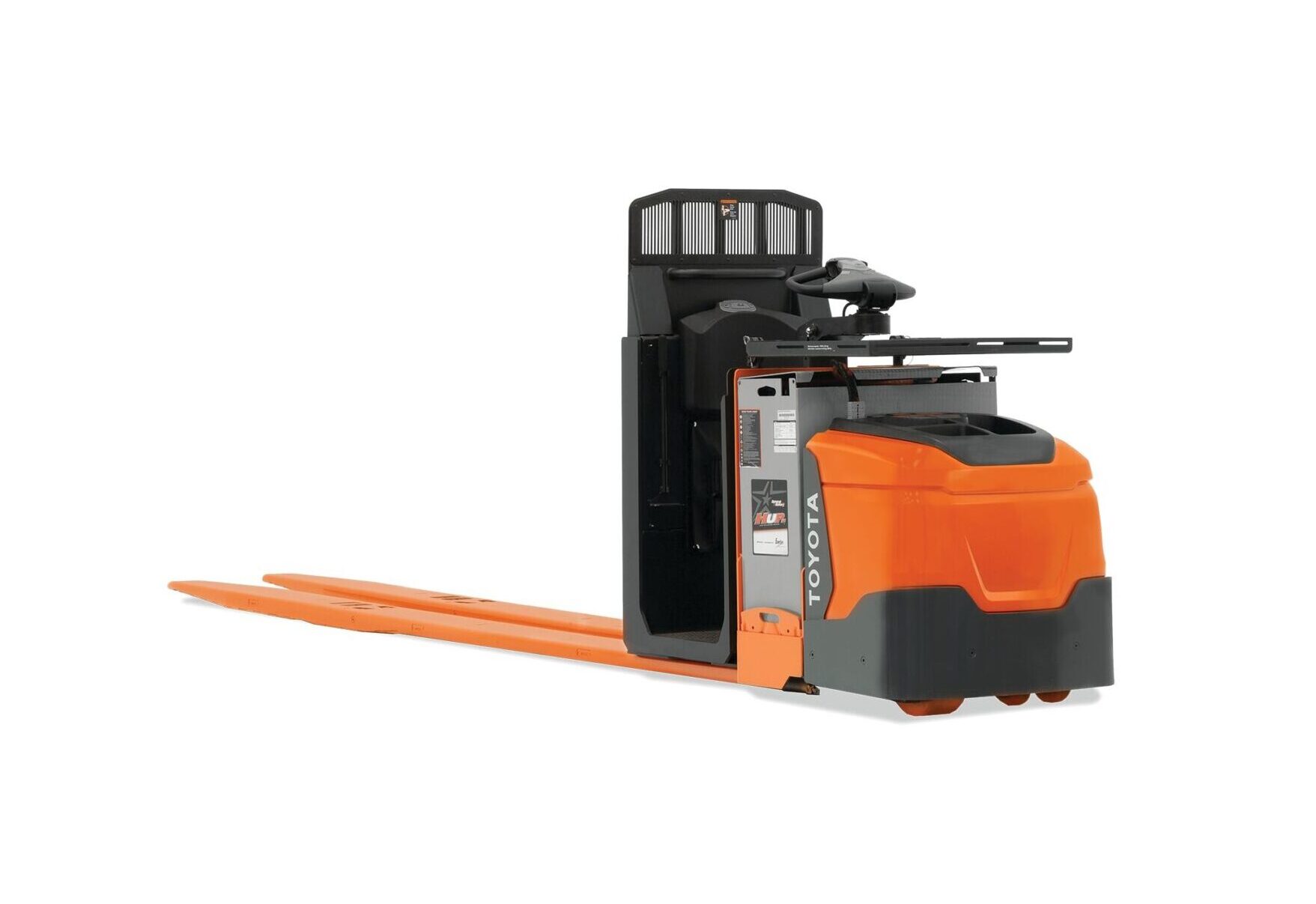

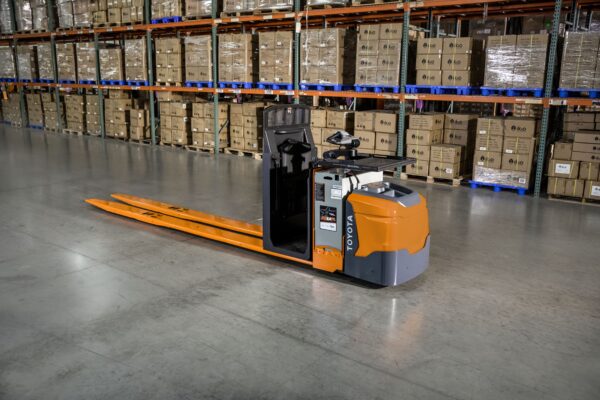

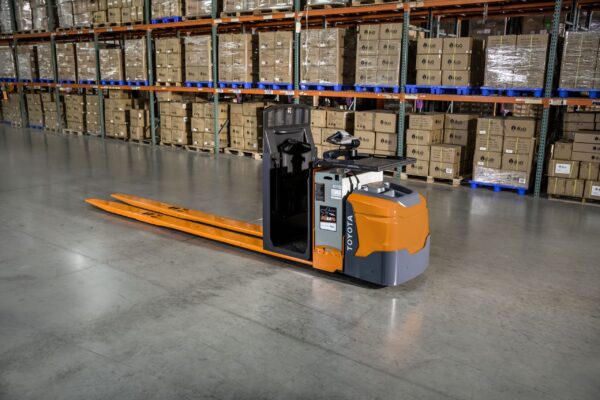

Low Level Order Picker
Enter Toyota’s low level order picker. With the versatility to quickly pick products in lower in locations while also providing access to second and in some instances, even third-level racking, next-level efficiency and optimal slotting are finally within your reach. Your high-throughput warehouse needs to pick products as efficiently as possible to keep operating costs low and expedite order fulfillment. This requires thoughtful placement of products and implementation of the right equipment to access fast-moving SKUs quickly.
The Toyota Low Level Order Picker has the versatility to quickly pick products in lower bin locations while also providing access to second and in some instances, even third-level racking. Paired with Toyota’s low level order picker, next- level efficiency and optimal slotting are finally within your reach.
- Up to 6,000-8,000 lb. capacity
- Up to 100" rack height access
- 4-point enhanced stability system
- Fork height travel interlock (option)
- Hands-free lowering (option)
- AC drive and lift motors
- High lift operator compartment offers 47" of lift height, providing a wide picking window and access to 2nd and even 3rd level racks.
- Optional simultaneous lift/ lower and travel enables operators to control multiple functions at once to optimize picking.
- Standard power steering reduces the effort required to turn for easier maneuverability and improved ergonomics.
- Single, double, and triple fork lengths deliver flexibility to handle up to three pallets simultaneously. Triple fork lengths can lift up to 8,000 lb. capacity.
- Hands-free lowering option allows the operator compartment to be lowered using a foot pedal for improved productivity.
- Reduced vibration transferred to the load and operator for a smooth, comfortable ride.
- AC drive system provides efficient, low-maintenance operation and powerful performance.
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| CR1-LP60 | 6,000 | 9.0 | N/A | N/A | N/A |
| CR1-LP80 | 8,000 | 9.0 | N/A | N/A | N/A |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- 24-volt electrical system
- AC drive motor
- Regenerative plugging
- Electric power steering
- Heavy duty swivel caster
- Battery discharge indicator with lift interrupt
- Hour meter indicator
- Electric disc brake
- Dual lift cylinders
- UL "E" Construction
Ergonomics / Operability
- Cushioned knee pad
- Cushioned operator backrest
- Fully lowered alert (notifies opertor)
- Directional thumb wheels
- Multifunction control handle with ergonomically angled hand grips
- Soft-cushioned operator sensing floor mat
- Operator platform, 47-inch elevating height
- Fork height travel interlock
Safety
- Orange forks
- Operator compartment sensor system
- Travel alarm options
- Electric disc brake
- Lift/limit and horn on LBR
Ease of Service
- Various load wheel options
- Battery compartment rollers with dual sidegates
- Compartment lift-limit switch with override
- Large magnetic, battery-mounted storage tray
Optional Equipment
- Cold storage conditioning
- Single tier accessory bar
- Compartment lift-limit switch with override
- Battery spacers (front to back)
- Pallet entry rollers
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| CR1-LP60 | 6,000 | 9.0 | N/A | N/A | N/A |
| CR1-LP80 | 8,000 | 9.0 | N/A | N/A | N/A |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- 24-volt electrical system
- AC drive motor
- Regenerative plugging
- Electric power steering
- Heavy duty swivel caster
- Battery discharge indicator with lift interrupt
- Hour meter indicator
- Electric disc brake
- Dual lift cylinders
- UL "E" Construction
- Cushioned knee pad
- Cushioned operator backrest
- Fully lowered alert (notifies opertor)
- Directional thumb wheels
- Multifunction control handle with ergonomically angled hand grips
- Soft-cushioned operator sensing floor mat
- Operator platform, 47-inch elevating height
- Fork height travel interlock
- Orange forks
- Operator compartment sensor system
- Travel alarm options
- Electric disc brake
- Lift/limit and horn on LBR
- Various load wheel options
- Battery compartment rollers with dual sidegates
- Compartment lift-limit switch with override
- Large magnetic, battery-mounted storage tray
- Cold storage conditioning
- Single tier accessory bar
- Compartment lift-limit switch with override
- Battery spacers (front to back)
- Pallet entry rollers
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Low Level Order Picker brochure
The Toyota Low Level Order Picker with advanced technology and various productivity-boosting features is a champion in any warehouse environment. Download a brochure see how Toyota is big on customer narrow-aisle solutions with the Low Level Order Picker.
