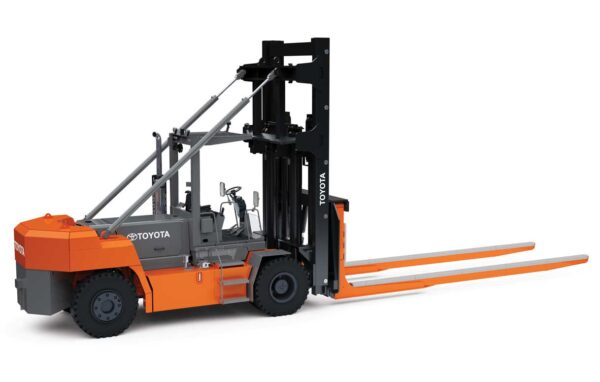

Marina High-Capacity IC Pneumatic

The Toyota High-Capacity line is synonymous with strength and durability, and the Marina High- Capacity IC Pneumatic forklift is no exception. A 100% welded steel chassis with steel cross supports and a three-step paint process for maximum corrosion protection, are two examples of how this rugged Toyota is built to take on the toughest challenges at boatyards or marinas. With our optional wireless remote-control feature, forklift functions such as drive, lift/ lower, tilt and fork manipulation can be controlled directly through the remote. Our three- step paint process provides maximum corrosion protection that is suited for wet applications. There is an additional waist strap to ensure for operator safety and optimal focus. This unit includes the latest MD4 7″ touch screen display.

Boats are heavy and present unique challenges when moving them on land. But, Toyota has marinas and boat manufacturers covered with the new High-Capacity Marina forklift. The Marina forklift is built to your unique needs, so you’ll get the right piece of equipment for your application, whether you need a forklift for a boat storage facility, at the dock, or boat manufacturing and assembly plants. Each comes standard with negative-lift functionality that lifts and lowers your boats into and out of the water.

  • 15,000 – 55,000 lb. capacity
  • Cummins 6.7 L diesel engine (Tier 4 Final)
  • 3-speed powershift transmission
  • Operator presence sensing system (OPSS)
  • Swing-style fork carriage
  • 7” touch screen multi-function display
  • Cummins diesel engine with Tier-4 final compliance
  • 3-Speed Dana transmission
  • Load-sensing hydraulic system
  • Two-stage, wide-view mast with negative lift
  • Galvanized components and 3-Step paint process
  • Cummins® QSS 6.7-liter, 6-cylinder, EPA/CARB-certified diesel engine to power the heaviest applications while meeting increasingly tough emission standards
  • Axtech® heavy-duty planetary drive axle for maximum durability
  • Excellent visibility is provided from the operator’s position in all directions
  • Specially designed mast negative lift to pull boats out of a lower marina slip
  • Swing-style fork carriage dependent and independent fork control for precise load handling
  • Marina forks heavy-wall tubular construction and hot-dip galvanization with rubber fork covering system
  • 3-step paint process provides maximum corrosion protection for wet marina applications
  • Electronic joystick controls highly intuitive and ergonomically designed to increase comfort and productivity
  • Air-ride seat for superior operator comfort throughout the entire work shift
  • Dana transmission with three forward and three reverse speeds
  • MD4 7” touch-screen display customizable performance, advanced diagnostics, and pertinent forklift information right at your fingertips

Specifications

MODELOPTIONCAPACITY (LBS.) @ 96 IN.WHEELBASE (IN.)18 FT.25 FT.32 FT.36 FT.45 FT.
THD3000-24M15015000 115"150009000550040001250
THD3000-24M18018000115"18000 11500750040002500
THD3600S-24M20020000115"2000013500950075004000
THD3600-48M20020000136"2000013500950075004000
THD3600S-24M22022000115"22000150001050085005000
THD3600-48M22022000136"22000150001050085005000
THD3600S-24M24024000115"24000157501150095005500
THD3600-24M25025000 136"250001650012250100006000
THD4000-48M27027000148”270001900013750117508250
THD4000-48M30030000148”3000022000160001375010250
THD4000-48M35035000148”3500025250177501525012000
THD4000-48 M42042000148”4200027000190001650013000
THD4000-48 M44044000148”440003000020250 1750014000
THD4000-48M520S52000148”5200041500287502325016750
THD7200-48M52052000174”5200041500287502325016750
THD7200-48M55055000174”5500044250315002550018500

Performance

  • Cummins tier 4f 6.7L diesel engine
  • Dana 32000 powershift transmission
  • Declutch control pedal
  • Swing-style fork carriage (independent and dependent)
  • Interactive CAN-bus vehicle management system
  • 7” touch-screen multi-function display

Durability

  • Axletech heavy-duty planetary drive axle rated for durability in high-capacity applications
  • Force-cooled wet disc brakes
  • Galvanized forks and carriage for ultimate corrosion protection
  • Two-part rust-inhibiting polyurethane base coat and two-part polyurethane top coat for corrosion protection
  • Rubber fork covering system
  • Algae filtration system
  • Carriage wear blocks

Ergonomics

  • Electronic joystick controls
  • Air-ride seat
  • Low profile counterweight
  • Left-hand shift lever on steering column
  • Tilt steering column

Optional Equipment

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

MODELOPTIONCAPACITY (LBS.) @ 96 IN.WHEELBASE (IN.)18 FT.25 FT.32 FT.36 FT.45 FT.
THD3000-24M15015000 115"150009000550040001250
THD3000-24M18018000115"18000 11500750040002500
THD3600S-24M20020000115"2000013500950075004000
THD3600-48M20020000136"2000013500950075004000
THD3600S-24M22022000115"22000150001050085005000
THD3600-48M22022000136"22000150001050085005000
THD3600S-24M24024000115"24000157501150095005500
THD3600-24M25025000 136"250001650012250100006000
THD4000-48M27027000148”270001900013750117508250
THD4000-48M30030000148”3000022000160001375010250
THD4000-48M35035000148”3500025250177501525012000
THD4000-48 M42042000148”4200027000190001650013000
THD4000-48 M44044000148”440003000020250 1750014000
THD4000-48M520S52000148”5200041500287502325016750
THD7200-48M52052000174”5200041500287502325016750
THD7200-48M55055000174”5500044250315002550018500
  • Cummins tier 4f 6.7L diesel engine
  • Dana 32000 powershift transmission
  • Declutch control pedal
  • Swing-style fork carriage (independent and dependent)
  • Interactive CAN-bus vehicle management system
  • 7” touch-screen multi-function display
  • Axletech heavy-duty planetary drive axle rated for durability in high-capacity applications
  • Force-cooled wet disc brakes
  • Galvanized forks and carriage for ultimate corrosion protection
  • Two-part rust-inhibiting polyurethane base coat and two-part polyurethane top coat for corrosion protection
  • Rubber fork covering system
  • Algae filtration system
  • Carriage wear blocks
  • Electronic joystick controls
  • Air-ride seat
  • Low profile counterweight
  • Left-hand shift lever on steering column
  • Tilt steering column

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

Download the High-Capacity Marina Forklift brochure

The High-Capacity Marina forklift with negative lift and galvanized marina forks can be perfectly customized and built to order to handle your toughest boat lifting applications and marinas. Download a brochure to see how this Toyota is built marina tough.
