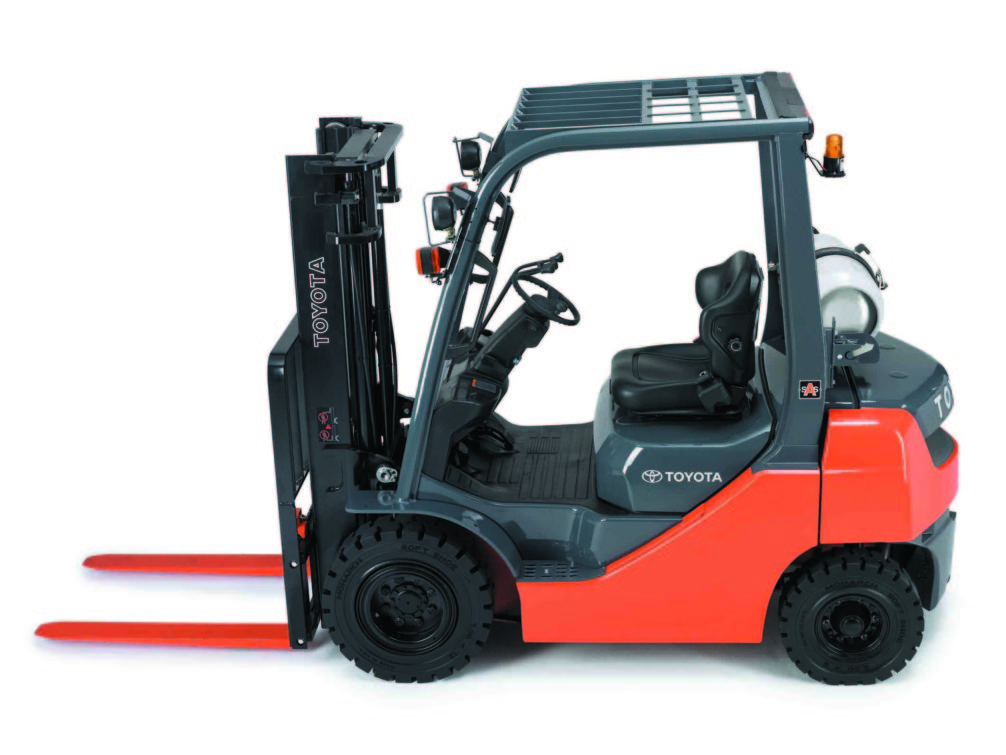

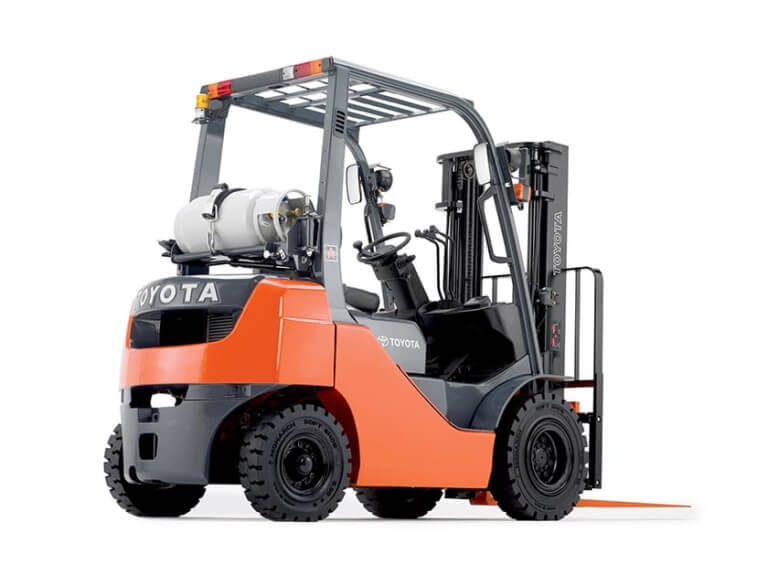

Core IC Pneumatic Forklifts

Take on the most demanding jobs – tough outdoor applications very much included. Construction sites. Lumberyards. Indoor/outdoor warehouses. With the Toyota Core IC Pneumatic, the stability and power are in your hands. Get ready to get stuff done. In addition, the Core IC Pneumatic is up for any challenge.

Wildly durable and engineered with ergonomics in mind, the Core IC Pneumatic forklift can maneuver almost anything. With a lift capacity range of 3,000-6,500 lbs., the Toyota Core IC Pneumatic forklift is the premier material handling solution for most outdoor applications.

  • 3,000 – 6,500 lb. capacity
  • 10.9 – 11.8 mph travel speed with full load
  • Industry’s top-selling forklift
  • SAS tilt-leveling forks
  • System of Active Stability (SAS) unique to Toyota forklifts, helps prevent tip-overs
  • Active Mast Control (AMC) responds automatically to enhance stability of loads handled at high lift heights
  • Forward tilt angle control and rear tilt speed control act automatically in uncertain situations to protect operator, and reduce product and forklift damage
  • One-way automatic fork leveling levels forks parallel to the ground from back tilt position with the push of a button
  • Structurally rugged mast channel design provides maximum load capacity retention by limiting mast deflection
  • Control Area Network (CAN-BUS) communication technology for quicker, more reliable control of truck functions with fewer components
  • Durability by design including tilt cylinder protection boots, stamped steel engine hood, fully sealed air intake, plate-iron front fenders and moisture-resistant electrical connections
  • Reinforced load backrest extension with recessed fasteners reduces potential for product damage
  • Standard 4-way adjustable full-suspension seat is wider with no hip restraints for easier entry/exit than competitor’s seats; weight adjustable for greater operator comfort
  • Improved ergonomics including dash-mounted instrument display, load-sensing power steering, 11.8” steering wheel, dash-integrated amenity tray and oversized cup holder
  • Welded, roll-formed overhead guard pillars provide maximum operator protection with improved entry/exit and load visibility
  • Pneumatic tires (solid or air-filled) for strong grip on rough surfaces and uneven terrain

Specifications

MODEL NUMBERLOAD CAPACITY* (LBS.)MAX. TRAVEL SPEED FULL LOAD (MPH)MAX. LIFT SPEED FULL LOAD (FPM)MAX. GRADEABILITY FULL LOAD (%)BASIC RIGHT ANGLE STACK** (IN.)
8FDU153,00011.81284591.9
8FGU153,00011.51314592.1
8FDU183,50011.81284593.9
8FGU183,50011.51314593.9
8FDU204,00011.812139103.2
8FGU204,00010.911841103.2
8FDU255,00011.812133105.9
8FGU255,00010.911834105.9
8FDU306,00011.89829111.4
8FGU306,00011.89829111.4
8FDU326,50011.59828112.4
8FGU326,50011.210026112.4

* Based on 24″ Load center
** Add load length and clearance

Details of specifications and equipment may change without notice.

Performance

  • Technician Programmable Speed Control
  • Fully-stamped steel side panels
  • Moisture resistant electric connectors
  • EPA/CARB certified gasoline engine
  • Integrated monitoring system
  • One-way automatic fork leveling

Ergonomics / Operability

  • Dash mounted instrument display
  • 11.8″ diameter two-spoke steering wheel
  • Load Sensing Hydrostatic Steering
  • Heavy-duty non-slip rubber floor mat
  • Cowl-mount hydraulic control levers with rubber boot covers
  • 4-Way adjustable vinyl full-suspension seat
  • 12″ long dual operator assist grips

Safety

  • System of Active Stability (SAS)
  • Operator Presence Sensing System (OPSS)
  • Bolt-on overhead guard
  • Key lowering interlock
  • Electric horn
  • Neutral engine start safety switch

Ease of Service

  • Easy access no-tools floorboard
  • Engine hood assist damper with lock device
  • Air cleaner discharge valve
  • Externally mounted hydraulic oil return filter
  • Dash mounted brake fluid level check
  • Easy lift engine hood with wide 75° opening

Optional equipment

  • T-Matics Vehicle Management System
  • Cascade sideshifter with bronze upper bushing
  • Steel cab
  • LPG swing down bracket
  • Low LPG fuel warning indicator
  • Multi-function display LED rear work light
  • Fire extinguisher
  • CNG powered

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

MODEL NUMBERLOAD CAPACITY* (LBS.)MAX. TRAVEL SPEED FULL LOAD (MPH)MAX. LIFT SPEED FULL LOAD (FPM)MAX. GRADEABILITY FULL LOAD (%)BASIC RIGHT ANGLE STACK** (IN.)
8FDU153,00011.81284591.9
8FGU153,00011.51314592.1
8FDU183,50011.81284593.9
8FGU183,50011.51314593.9
8FDU204,00011.812139103.2
8FGU204,00010.911841103.2
8FDU255,00011.812133105.9
8FGU255,00010.911834105.9
8FDU306,00011.89829111.4
8FGU306,00011.89829111.4
8FDU326,50011.59828112.4
8FGU326,50011.210026112.4

* Based on 24″ Load center
** Add load length and clearance

Details of specifications and equipment may change without notice.

  • Technician Programmable Speed Control
  • Fully-stamped steel side panels
  • Moisture resistant electric connectors
  • EPA/CARB certified gasoline engine
  • Integrated monitoring system
  • One-way automatic fork leveling
  • Dash mounted instrument display
  • 11.8″ diameter two-spoke steering wheel
  • Load Sensing Hydrostatic Steering
  • Heavy-duty non-slip rubber floor mat
  • Cowl-mount hydraulic control levers with rubber boot covers
  • 4-Way adjustable vinyl full-suspension seat
  • 12″ long dual operator assist grips
  • System of Active Stability (SAS)
  • Operator Presence Sensing System (OPSS)
  • Bolt-on overhead guard
  • Key lowering interlock
  • Electric horn
  • Neutral engine start safety switch
  • Easy access no-tools floorboard
  • Engine hood assist damper with lock device
  • Air cleaner discharge valve
  • Externally mounted hydraulic oil return filter
  • Dash mounted brake fluid level check
  • Easy lift engine hood with wide 75° opening
  • T-Matics Vehicle Management System
  • Cascade sideshifter with bronze upper bushing
  • Steel cab
  • LPG swing down bracket
  • Low LPG fuel warning indicator
  • Multi-function display LED rear work light
  • Fire extinguisher
  • CNG powered

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

DOWNLOAD THE IC CORE PNEUMATIC BROCHURE

More power for big loads. More durability for heavy, harsh conditions. More grip for rough, uneven surfaces. More material-handling prowess to knock off every item on your outdoor to-do list. Whatever the challenge, the Core IC Pneumatic is up for it. Download a brochure to see why the Toyota Core IC Pneumatic is one tough customer.
