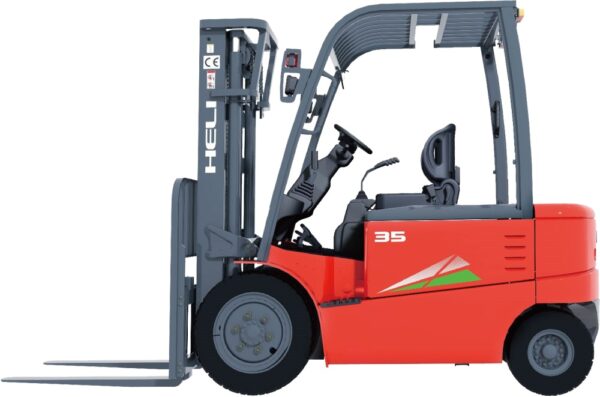

HELI G Series 3-3.5T (6000 – 7000 lb. capacity)

The Heli G series 6000-7000lbs capacity AC electric forklift features improved operating comfort and performance. There is a wide view mast with large arc roof frame to increase operator visibility during applications. The truck features three driving modes to adapt in different working conditions including a short time in rain. This vehicle has an interactive LED multifunctional interface that displays mass information, has easy password functions and is maintenance free. This electric truck saves more than 10% of its energy during travel as well as the LED lamps save 80% of its energy. Plus, the battery side lift is customized to make battery changing easier.

Heli’s G series 6,000-7,000 lb. capacity AC electric forklift offers a high-quality forklift at an economical price point.  We have these forklifts in stock now for immediate purchase.

  • AC Electric Forklift
  • 6,000 – 7,000 lb. capacity
  • In stock now for immediate delivery
  • Standard configuration of wide view compact mast, tube pulley block, and a large arc roof frame to help improve drivers view.
  • Optimized brake pedal height and accelerating pedal height for comfort shifting.
  • Super low torque steering unit.
  • Rear handle with horn button to ensure safe and comfortable operation while driving in reverse.
  • Ratchet hand brake has a different force on the slope and ground to help reduce driver’s fatigue.
  • Special side plate and top cover for easy assembly and disassembly.
  • Highly- mounted rear axle increasing transversal stability by 2.1%.
  • Three driving modes to be equipped for different working conditions.
  • Automatic deceleration when steering to ensure operation safety.
  • IPX4 Waterproof: powered to stimulate a 15 minute short-time 5000L rainstorm test, and the vehicle can continue to run without failure.
  • The electric truck saves more than 10% of the energy during travel and LED lamps save 80% of the energy.
  • Prolonged battery life of 10%.
  • Battery side lift and customized battery side pulling makes changing the battery easier.

Specifications

MODEL NUMBERLOAD CAPACITY* (LBS.)MAX. TRAVEL SPEED FULL LOAD (MPH)MAX. LIFT HEIGHT FULL LOAD (FT/MIN)MAX. GRADEABILITY FULL LOAD (%)
CPD30-GC260009.3/9.62.2/3.617
CPD30-GD2/GD360009.3/9.62.7/3.617
CPD30-GC2P60009.3/9.62.2/3.617
CPD30-GD2P/GD3P60009.3/9.62.7/3.617
CPD35-GC270009.3/92.1/3.515
CPD35-GD2/GD370009.3/92.6/3.615
CPD35-GC2P70009.3/92.1/3.515
CPD35-GD2P/GD3P70009.3/92.6/3.615

** Contact TMHS for Spec Details

Details of specifications and equipment may change without notice.

DOWNLOAD THE Heli G series AC electric forklift brochure

Heli G series AC electric forklift offer improved performance and superior quality in a lower cost forklift. Download a brochure to learn how the Heli G Series can help your business today.
