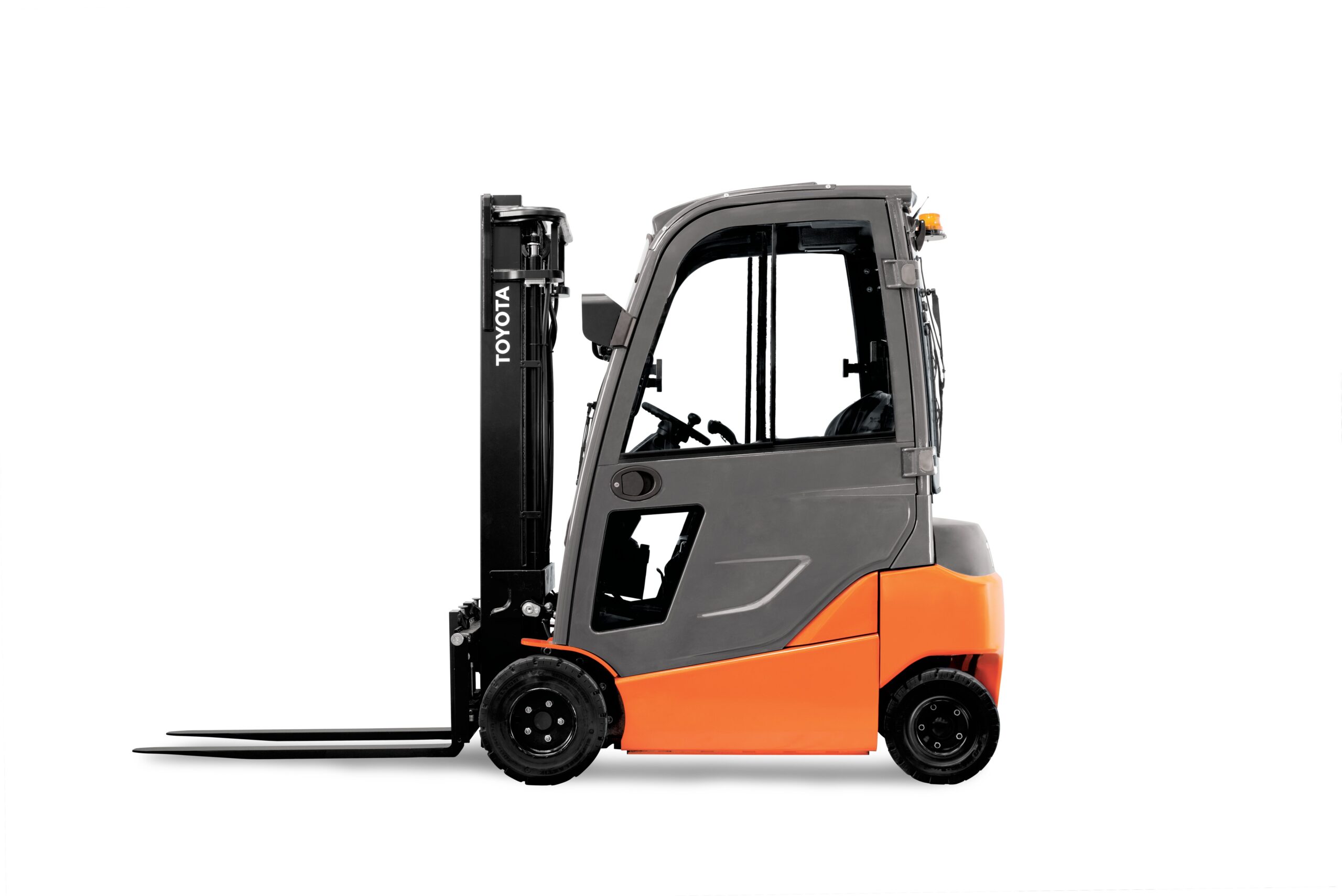

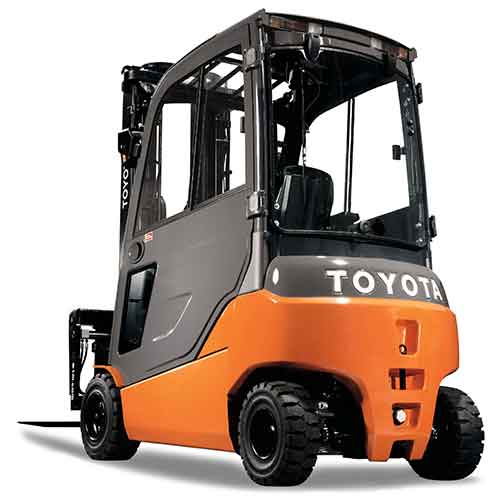

48V Electric Pneumatic
Toyota designed and built AC motors to power the 48V Electric Pneumatic to new levels of productivity and efficiency while delivering low-maintenance operation. Regenerative braking returns unused energy to the battery during operation. The inclusion of fan-less cooling systems and energy-efficient tires allows for longer battery life and fewer battery changes. With programmable performance with power select capabilities, you have one powerful and versatile machine.
In material handling, the last things you need are limitations. Utilizing different trucks for indoor and outdoor work creates inefficiencies that ultimately impact your bottom line. when you need raw power to tackle outdoor challenges and efficient, environmentally friendly operation indoors, look no further than Toyota’s 48V Electric Pneumatic Forklift.
- 3,000 – 4,000 lb. capacity
- High performance and visibility
- Easy driver interface
- 1,000 hours service intervals
- Wet disc brakes
- Automatic parking brake

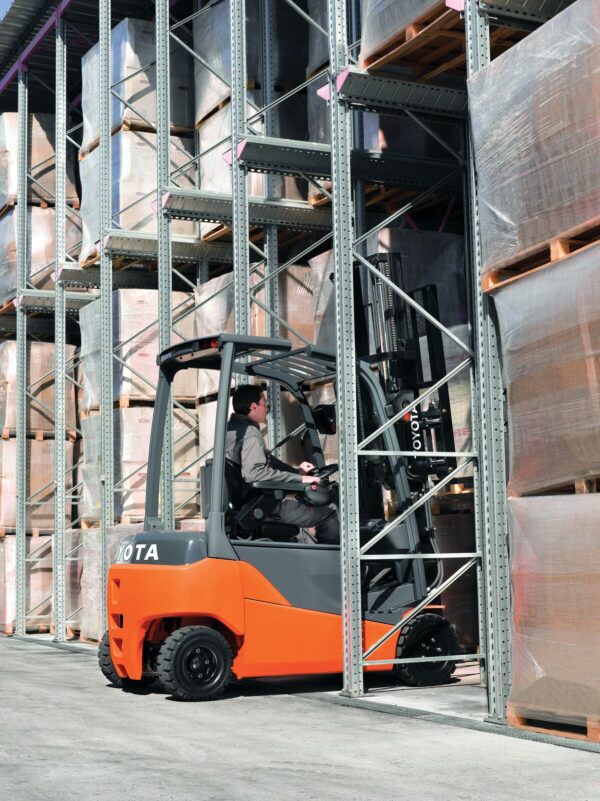

Learn more about the 48V Electric Pneumatic forklift in an outdoor retail environment.
- AC drive and lift motors to provide superior performance and energy efficiency as well as reduced maintenance costs with fewer moving parts.
- Environmental options available such as steel cabins with windshield wipers that allow the forklift to operate indoors and outdoors and to help protect operators from cold temperatures, wind and dust.
- Wet disc brakes deliver optimal efficiency and reliable performance, with many applications never requiring service or replacement over the life of the forklift.
- Automatic parking brake engages when the forklift comes to a complete stop.
- Mini lever controls come standard for improved ergonomics and efficient operation.
- Multifunction display offers programmable performance and relays pertinent information such as remaining operating time.
- Five different mast configurations such as open view mast provide exceptional visibility to fit your unique needs.
- All metal rugged exterior for heavy-duty durability indoors and out.
- Built using the Toyota production system which gives you the highest levels of quality, durability, and reliability of internal combustion trucks with the speed and economic advantages or an electric forklift.
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) |
|---|---|---|---|---|
| 8FBMK16T | 3,000 | 12.4 | 84.6 | 23.6 |
| 8FBM16T | 3,000 | 12.4 | 84.6 | 21 |
| 8FBM18T | 3,500 | 12.4 | 82.7 | 21 |
| 8FBMK20T | 4,000 | 12.4 | 74.8 | 18.3 |
| 8FBM20T | 4,000 | 12.4 | 74.8 | 18.3 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- LCD digital multifunction display: time & date, speedometer, battery capacity indicator, low speed setting switch, direction indicator
- 48-volt electrical system
- 3-way hydraulic control valve
- Accel-off function
- Power select function
Operability / Ergonomics
- Automatic parking brake
- Wide brake pedal
- Hydraulic power steering
- Adjustable tilt steering column with memory function
- Seat mounted Hydraulic mini levers
- Direction switch on armrest
Safety
- System of Active Stability (SAS)™
- Operator Presence Sensing System (OPSS)
- Double-action parking brake
- Armrest horn
- Overhead guard
Ease of Service
- AC power system
- Lift out battery exchange
- Easy access no-tools toe board and side panels
- Clamp release interlock
Optional Equipment
- Deluxe multifunction display (includes tilt and load indicator)
- 12V power supply (automotive style)
- Continental non-marking solid pneumatic tires with anti-static strap, front
- Battery side extraction with fork pockets and side covers
- Hydraulic cushioned forks (includes shockless landing lift)
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) |
|---|---|---|---|---|
| 8FBMK16T | 3,000 | 12.4 | 84.6 | 23.6 |
| 8FBM16T | 3,000 | 12.4 | 84.6 | 21 |
| 8FBM18T | 3,500 | 12.4 | 82.7 | 21 |
| 8FBMK20T | 4,000 | 12.4 | 74.8 | 18.3 |
| 8FBM20T | 4,000 | 12.4 | 74.8 | 18.3 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- LCD digital multifunction display: time & date, speedometer, battery capacity indicator, low speed setting switch, direction indicator
- 48-volt electrical system
- 3-way hydraulic control valve
- Accel-off function
- Power select function
- Automatic parking brake
- Wide brake pedal
- Hydraulic power steering
- Adjustable tilt steering column with memory function
- Seat mounted Hydraulic mini levers
- Direction switch on armrest
- System of Active Stability (SAS)™
- Operator Presence Sensing System (OPSS)
- Double-action parking brake
- Armrest horn
- Overhead guard
- AC power system
- Lift out battery exchange
- Easy access no-tools toe board and side panels
- Clamp release interlock
- Deluxe multifunction display (includes tilt and load indicator)
- 12V power supply (automotive style)
- Continental non-marking solid pneumatic tires with anti-static strap, front
- Battery side extraction with fork pockets and side covers
- Hydraulic cushioned forks (includes shockless landing lift)
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the 48V Electric Pneumatic brochure
With high-load capacity capabilities, pneumatic tires and zero emissions, the Toyota Electric Pneumatic forklift is an environmentally-friendly outdoor solution. Download a brochure to uncover the secret of IC power in an electric.
