Large IC Cushion Forklifts

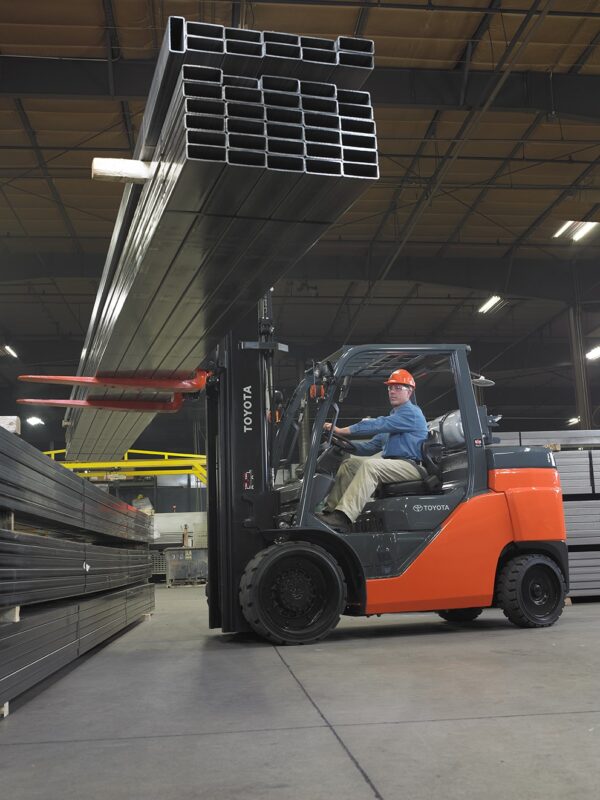

Bring it your big jobs. Paper rolls. Lumber. Heavy-duty manufacturing. Shipping and freight. Warehouse applications. The Toyota Large IC Cushion forklift is built to tackle your toughest loads. Built to use less fuel and produce fewer emissions. Built to navigate 13- and 14-foot aisles while providing nearly 20 feet of lift. And, most of all, built to last. Meet your indoor heavy load solution.

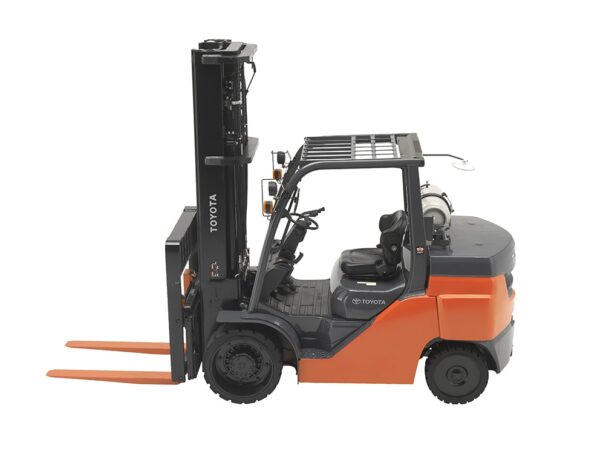

Toyota’s Large IC Cushion forklift is a durable, high-lift capacity forklift used primarily indoors and in specialty applications such as retail, lumber yards, stone or brick distribution, heavy-duty manufacturing, shipping and freight, and various warehouse applications. The Large IC Cushion can be retrofitted into both the Box Car Special and the Paper Roll Special forklift models.
- 8,000 – 15,500 lb. capacity
- 84 hp
- 11.8 to 13 mph
- 20% more fuel efficient
- System of Active Stability (SAS) acts automatically in uncertain situations to protect operator, and reduce product and forklift damage
- Active Mast Control (AMC) responds automatically to enhance stability of loads handled at high lift heights
- Independent brake and inching control pedals for excellent stopping power and precise positioning of the forklift
- Standard 4-way adjustable full-suspension seat is wider with no hip restraints for easier entry/exit than competitor’s seats; weight adjustable for greater operator comfort
- Improved ergonomics including dash-mounted instrument display, load-sensing power steering, 11.8” steering wheel, dash-integrated amenity tray and oversized cup holder
- Welded, roll-formed overhead guard pillars provide maximum operator protection with improved entry/exit and load visibility
- Rear assist grip with horn option makes reverse travel more comfortable and keeps operator’s hands safely within compartment
- Load-sensing power steering for smooth, responsive operation with little vibration and shock, helping reduce operator fatigue
- Engine protection system automatically reduces output if coolant temperature rises to potentially damaging levels
- Fully sealed air intake mounted up high to limit low-lying dust and debris entering engine
Specifications
MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
---|---|---|---|---|---|
8FGC35U | 8,000 | 11.8 | 100 | 47 | 107.5 |
8FGC45U | 10,000 | 11.8 | 98 | 37 | 112 |
8FGC55U | 12,000 | 13 | 91 | 34 | 118 |
8FGC60U | 13,500 | 13 | 81 | 31 | 123 |
8FGC70U | 15,500 | 13 | 81 | 28 | 123 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- Integrated monitoring system
- Adjustable headlights with guards
- Low wide entry steps
- Controller Area Network (CAN-bus) communication
- Moisture resistant electric connectors
- Engine protection system
Ergonomics / Operability
- Dash-mounted instrument display
- 11.8″ diameter two-spoke steering wheel
- Load sensing power steering
- 12″ long dual operator assist grips
- Low, wide-entry steps
- 4-Way adjustable vinyl full-suspension seat
- Dash integrated amenity tray and oversized cup holder
Safety
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key-lowering interlock
- Electric horn
- Neutral engine start safety switch
Ease of Service
- Easy-access no-tools floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Easy-lift engine hood with wide 75°
- Easy access to common service items such as filters and dipsticks
Optional Equipment
- T-Matics Vehicle Management System
- Mini-lever controls with Ergoshift
- Multi-function display
- LED headlight
- High capacity cooling
- Steering wheel knob
- Smooth non-marking tires (front and rear)
- Rear assist grip with horn button
- Fire extinguisher
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
---|---|---|---|---|---|
8FGC35U | 8,000 | 11.8 | 100 | 47 | 107.5 |
8FGC45U | 10,000 | 11.8 | 98 | 37 | 112 |
8FGC55U | 12,000 | 13 | 91 | 34 | 118 |
8FGC60U | 13,500 | 13 | 81 | 31 | 123 |
8FGC70U | 15,500 | 13 | 81 | 28 | 123 |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- Integrated monitoring system
- Adjustable headlights with guards
- Low wide entry steps
- Controller Area Network (CAN-bus) communication
- Moisture resistant electric connectors
- Engine protection system
- Dash-mounted instrument display
- 11.8″ diameter two-spoke steering wheel
- Load sensing power steering
- 12″ long dual operator assist grips
- Low, wide-entry steps
- 4-Way adjustable vinyl full-suspension seat
- Dash integrated amenity tray and oversized cup holder
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key-lowering interlock
- Electric horn
- Neutral engine start safety switch
- Easy-access no-tools floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Easy-lift engine hood with wide 75°
- Easy access to common service items such as filters and dipsticks
- T-Matics Vehicle Management System
- Mini-lever controls with Ergoshift
- Multi-function display
- LED headlight
- High capacity cooling
- Steering wheel knob
- Smooth non-marking tires (front and rear)
- Rear assist grip with horn button
- Fire extinguisher
Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.
Download the Large IC Cushion forklift brochure
The Toyota Large IC Cushion forklift is built to last and to handle your toughest loads. With reduced emissions and fuel consumption, this forklift is an indoor heavy load solution. Download the brochure to see how the Large IC Cushion is large and in charge.
