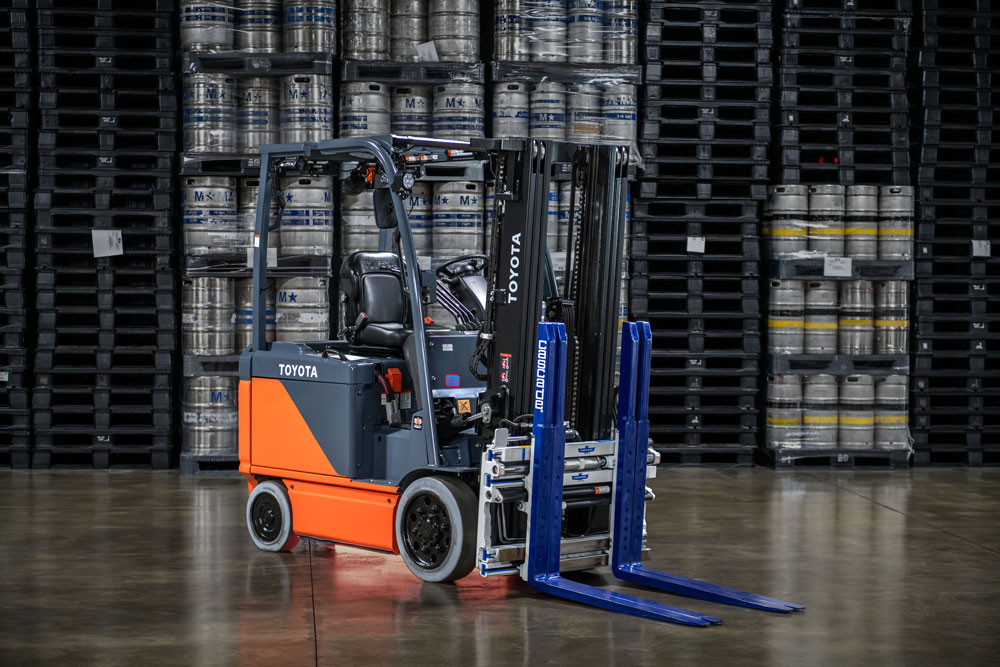

The Toyota Core Electric is big on small-space productivity. Carrying up to 6500 pounds. Lifting as high as 23 feet. Unloading more pallets at once in confined aisles. And the powerfully efficient AC motors, designed and built by Toyota, maximize uptime and reduce overall cost of ownership. When the going gets tight, the Core Electric — quietly powerful, powerfully efficient — gets going and is the #1 selling electric forklift. And now, Toyota’s offers an optional SEnS Smart Environment Sensor (SEnS) and SEnS Smart Environment Sensor Plus (SEnS+) which can help increase the safety of forklift operators and everyone around them.

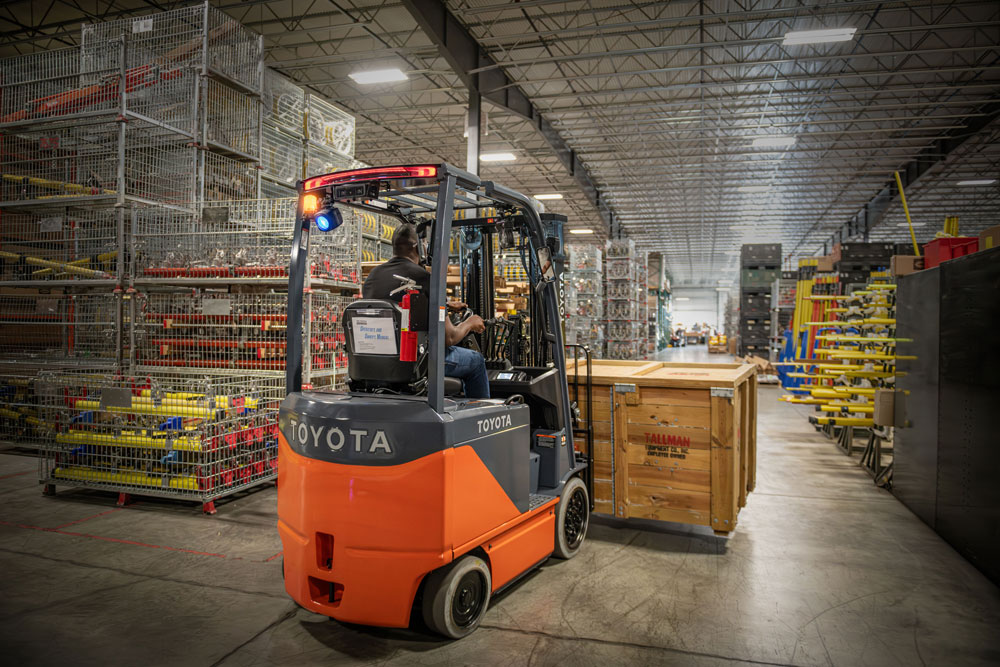

The Toyota Core Electric Forklift is an ideal compact four-wheel electric lift truck solution for most indoor and warehouse applications. With its 3000-6500 lb. capacity and industry-leading System of Active Stability (SAS), the Core Electric Forklift is capable of moving most any standard load while maintaining the ability to fully operate in spaces as small as 11 feet wide. And Toyota designed and built AC motors provide new levels of performance, efficiency, and reliability to maximize your productivity and return on investment.

Plus, the Toyota Core Electric Turret Forklift features a Cascade mast and turret head, offering the ability to stack at 90-degree angles for increased productivity in narrow aisles. Warehouse reconfiguration can help drive efficiency to match accelerating demand. Toyota supplies the equipment necessary to meet material handling challenges when racks get closer and aisles get narrower.

SEnS Smart Environment Sensor™ (SEnS)

The optional SEnS Smart Environment Sensor™ (SEnS) pedestrian detection system – designed and engineered by Toyota – uses advanced technology and can assist operators in identifying a pedestrian or object behind their forklift during a shift. If within a detectible range, a buzzer and four indicator lights will alert the operator that a pedestrian or object is within a certain range of the rear of the forklift. SEnS is available as an add-on kit that can be retrofitted for select Toyota forklift models currently in utilization, as well as new models. SEnS, works with multiple input voltages and fits a variety of applications.as an add-on kit that can be retrofitted for select Toyota forklift models currently in utilization, as well as new models. SEnS, works with multiple input voltages and fits a variety of applications.

  • 3,000 – 6,500 lb. capacity
  • 11-12′ aisle widths
  • Up to 6,500 lbs. Lifting Capacity
  • Up to 23′ Lift Height
  • AC drive motor (38- to 48-volt)
  • No tools required floorboard
  • On-demand power steering
  • System of Active Stability (SAS), unique to Toyota forklifts, helps prevent tip overs
  • Active mast control (AMC) responds automatically to enhance the stability of loads handled at high lift heights
  • Forward tilt angle control and rear tilt speed control act automatically in uncertain situations to protect operator, and reduce product and forklift damage
  • One-way automatic fork leveling levels forks parallel to protect operator, and reduce product and forklift damage
  • Regenerative breaking improves overall efficiency and prolongs brake component life
  • Programmable performance parameters are customizable via digital display to fit a variety of job applications and operator skill levels
  • Dual operator assist grips and low, wide step for easy forklift entrance and exit from both sides
  • Standard 4-way adjustable full-suspension seat is wider with no hip restraints for easier entry/exit than competitors’ seats; weight adjustable for greater operator comfort
  • Spacious operator compartment with cup holder, utility tray and expansive legroom for increased comfort
  • On-demand power steering for smooth, responsive operation while isolating vibration and shock
  • Durability by design including tilt cylinder protection boots, stamped steel engine hood, fully sealed air intake, plate-iron front fenders and moisture-resistant electrical connections
  • Welded, roll-formed overhead guard pillars provide maximum operator protection with excellent entry/exit and load visibility

Specifications

MODEL NUMBERLOAD CAPACITY* (LBS.)MAX. TRAVEL SPEED FULL LOAD (MPH)MAX. LIFT SPEED FULL LOAD (FPM)MAX. GRADEABILITY FULL LOAD (%)BASIC RIGHT ANGLE STACK** (IN.)
8FBC15U3,00011.5 (36V), 11.5 (48V)88 (36V), 108 (48V)20 (36V), 21 (48V)82.1
8FBC18U3,500 11.3 (36V), 11.3 (48V)79 (36V), 100 (48V)18 (36V), 20 (48V)82.1
8FBCU204,0009.9 (36V), 11.5 (48V)67 (36V), 89 (48V)25 (36V), 23 (48V)87.2
8FBCU20-COMP4,000 9.9 (36V), 11.5 (48V)67 (36V), 89 (48V)25 (36V), 23 (48V)93.1
8FBCHU255,0009.6 (36V), 11.5 (48V)59 (36V), 79 (48V)21 (36V), 24 (48V)93.1
8FBCU255,0009.6 (36V), 11.5 (48V)59 (36V), 79 (48V)21 (36V), 19 (48V)87.6
8FBCU25-COMP5,0009.6 (36V), 11.5 (48V)59 (36V), 79 (48V)21 (36V), 19 (48V)85.6
8FBCU285,5009.3 (36V), 11.5 (48V)55 (36V), 73 (48V)17 (36V), 20 (48V)90.3
8FBCU306,0009.0 (36V), 11.2 (48V)51 (36V), 69 (48V)17 (36V), 20 (48V)94.9
8FBCU326,5009.0 (36V), 11.2 (48V)47 (36V), 65 (48V)17 (36V), 19 (48V)96.4

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. Contact Toyota Material Handling Solutions (TMHS) for the most current product specifications. All specifications should be verified with TMHS prior to purchase.

Performance

  • Toyota-designed AC motors
  • One-way automatic fork leveling
  • Three forms of energy regeneration
  • Digital (LCD) multifunction display
  • Adjustable front headlights
  • Punched plate entry/exit step

Ergonomics

  • Four-way adjustable full-suspension seat
  • Hydrostatic (on-demand) power steering
  • Dual operator assist grips
  • 11.8″ diameter two-spoke steering wheel
  • Cowl-mounted hydraulic controls
  • Heavy-duty non-slip floor mat
  • Electric directional shift control

Safety

  • System of Active Stability (SAS)
  • Operator Presence Sensing System (OPSS)
  • Bolt-on overhead guard
  • Key lowering interlock
  • Foot activated parking break
  • Manual return to neutral

Ease of Service

  • AC drive motor (no brushes or commutator)
  • Easy access hydraulic motor
  • Easy access no-tools floorboard
  • Battery compartment hood assist
  • Planned maintenance indicator
  • Easy access controllers

Optional Equipment

  • Compact model
  • Cold storage Model
  • EZ pedal
  • CASCADE INTEGRAL SIDE-SHIFTING FORK POSITIONER
  • Mini-levers with Ergoshift
  • Synchronized steering
  • Battery compartment side panels
  • Smooth, non-marking tires

For compatibility conditions and restrictions, please contact your Toyota Material Handling Solutions or reference the forklift manual. Options may vary from illustrations provided. Details of specifications and equipment may change without notice.

MODEL NUMBERLOAD CAPACITY* (LBS.)MAX. TRAVEL SPEED FULL LOAD (MPH)MAX. LIFT SPEED FULL LOAD (FPM)MAX. GRADEABILITY FULL LOAD (%)BASIC RIGHT ANGLE STACK** (IN.)
8FBC15U3,00011.5 (36V), 11.5 (48V)88 (36V), 108 (48V)20 (36V), 21 (48V)82.1
8FBC18U3,500 11.3 (36V), 11.3 (48V)79 (36V), 100 (48V)18 (36V), 20 (48V)82.1
8FBCU204,0009.9 (36V), 11.5 (48V)67 (36V), 89 (48V)25 (36V), 23 (48V)87.2
8FBCU20-COMP4,000 9.9 (36V), 11.5 (48V)67 (36V), 89 (48V)25 (36V), 23 (48V)93.1
8FBCHU255,0009.6 (36V), 11.5 (48V)59 (36V), 79 (48V)21 (36V), 24 (48V)93.1
8FBCU255,0009.6 (36V), 11.5 (48V)59 (36V), 79 (48V)21 (36V), 19 (48V)87.6
8FBCU25-COMP5,0009.6 (36V), 11.5 (48V)59 (36V), 79 (48V)21 (36V), 19 (48V)85.6
8FBCU285,5009.3 (36V), 11.5 (48V)55 (36V), 73 (48V)17 (36V), 20 (48V)90.3
8FBCU306,0009.0 (36V), 11.2 (48V)51 (36V), 69 (48V)17 (36V), 20 (48V)94.9
8FBCU326,5009.0 (36V), 11.2 (48V)47 (36V), 65 (48V)17 (36V), 19 (48V)96.4

* Based on 24″ Load center
** Add load length and clearance

Product specifications may not reflect the most current product details. Contact Toyota Material Handling Solutions (TMHS) for the most current product specifications. All specifications should be verified with TMHS prior to purchase.

  • Toyota-designed AC motors
  • One-way automatic fork leveling
  • Three forms of energy regeneration
  • Digital (LCD) multifunction display
  • Adjustable front headlights
  • Punched plate entry/exit step
  • Four-way adjustable full-suspension seat
  • Hydrostatic (on-demand) power steering
  • Dual operator assist grips
  • 11.8″ diameter two-spoke steering wheel
  • Cowl-mounted hydraulic controls
  • Heavy-duty non-slip floor mat
  • Electric directional shift control
  • System of Active Stability (SAS)
  • Operator Presence Sensing System (OPSS)
  • Bolt-on overhead guard
  • Key lowering interlock
  • Foot activated parking break
  • Manual return to neutral
  • AC drive motor (no brushes or commutator)
  • Easy access hydraulic motor
  • Easy access no-tools floorboard
  • Battery compartment hood assist
  • Planned maintenance indicator
  • Easy access controllers
  • Compact model
  • Cold storage Model
  • EZ pedal
  • CASCADE INTEGRAL SIDE-SHIFTING FORK POSITIONER
  • Mini-levers with Ergoshift
  • Synchronized steering
  • Battery compartment side panels
  • Smooth, non-marking tires

For compatibility conditions and restrictions, please contact your Toyota Material Handling Solutions or reference the forklift manual. Options may vary from illustrations provided. Details of specifications and equipment may change without notice.

Download the Core Electric Brochure

Efficient, environmentally-friendly and mid-level capacity, the Toyota Core Electric forklift is the “just right” solution for most warehouses. Download a brochure to learn more about this warehouse workhorse.
