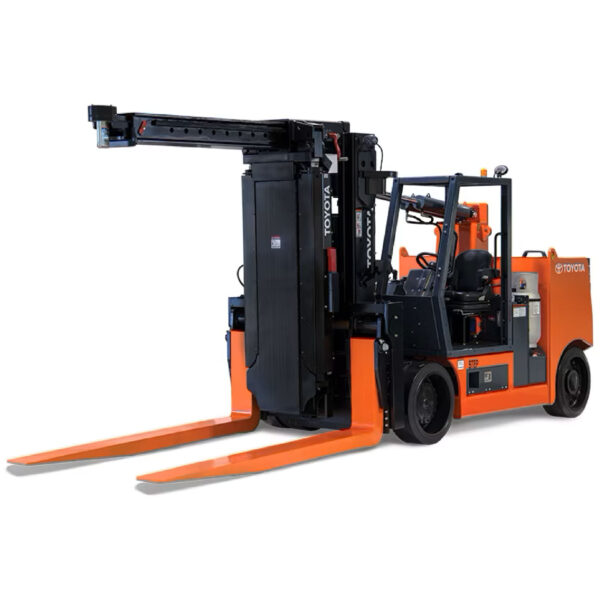

HIGH CAPACITY ADJUSTABLE WHEELBASE Forklift

The High-Capacity Adjustable Wheelbase Forklift is gives you the versatility to lift heavy loads with great flexibility. The High-Capacity Adjustable Wheelbase Forklift is a sit down counterbalanced forklift with flexible features to adjust loads easily.

The Toyota High Capacity Adjustable Wheelbase Forklift makes it easier for you to operate in flexible settings. With the adjustable wheelbase feature, the Toyota High Capacity Electric Cushion Forklift is built to maneuver in awkward spaces with a lift capacity of 80,000 lbs.

  • 15,000-80,000 lb. Lifting Capacity
  • Extendable Counterweight / Counterbalance
  • Multi-Stage Telescoping Boom
  • 2-Speed Hydrostatic Transmission
  • Extendable Counterweight
  • 7" Touch Screen Multi-Function Display
  • Optional Remote Control
  • Operator Presence Sensing System (OPSS)
HIGH CAPACITY ADJUSTABLE WHEELBASE Forklift

Specifications

** Add load length and clearance

Details of specifications and equipment may change without notice.

Performance

  • GM 3.0L 4-cylinder engine (LP/Gas)1
  • 2-Speed hydrostatic transmission
  • Full hydraulic power steering
  • Heavy-duty alternator with built- in regulator
  • Inboard muffler
  • 7” touch-screen multi-function display
  • Parking brake indicator
  • Estimated load weight indicator

Ergonomics

  • Left-hand operator/seat position
  • Rubber-mounted cab isolated from the frame to reduce noise and vibration
  • Low-height, non-skid steps
  • Adjustable semi-suspension seat
  • Soft-touch hydraulic levers
  • Hydraulic weight scale
  • Large dual operator assist grips

Safety

  • Electrical horn
  • Bolt-on overhead guard
  • Operator Restraint System seat
  • Orange forks
  • Operator Presence Sensing System (OPSS)

Ease of Service

  • Quick-Change Fork System for quick connect/disconnect of forks and boom
  • Engine fault code diagnostic capability
  • Externally mounted charge pump and integral filter allow for easy maintenance
  • Large clean-out covers on top of hydraulic tank and convenient drain plug on the bottom
  • Electric radiator fan with automated reversing feature
  • Easy-access steer axle lubrication points
  • Hinged panels and hoods supported by gas shocks to reach entire drivetrain, hydraulics, and filters

Optional Equipment

  • Integral Side Shifting Fork Positioner (Dependent)
  • Full-Free Lift Two-Stage Mast (FV)
  • Rear Facing Blue Light (Key Switch Activated)
  • Rear Camera System Visibility Aid

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

** Add load length and clearance

Details of specifications and equipment may change without notice.

  • GM 3.0L 4-cylinder engine (LP/Gas)1
  • 2-Speed hydrostatic transmission
  • Full hydraulic power steering
  • Heavy-duty alternator with built- in regulator
  • Inboard muffler
  • 7” touch-screen multi-function display
  • Parking brake indicator
  • Estimated load weight indicator
  • Left-hand operator/seat position
  • Rubber-mounted cab isolated from the frame to reduce noise and vibration
  • Low-height, non-skid steps
  • Adjustable semi-suspension seat
  • Soft-touch hydraulic levers
  • Hydraulic weight scale
  • Large dual operator assist grips
  • Electrical horn
  • Bolt-on overhead guard
  • Operator Restraint System seat
  • Orange forks
  • Operator Presence Sensing System (OPSS)
  • Quick-Change Fork System for quick connect/disconnect of forks and boom
  • Engine fault code diagnostic capability
  • Externally mounted charge pump and integral filter allow for easy maintenance
  • Large clean-out covers on top of hydraulic tank and convenient drain plug on the bottom
  • Electric radiator fan with automated reversing feature
  • Easy-access steer axle lubrication points
  • Hinged panels and hoods supported by gas shocks to reach entire drivetrain, hydraulics, and filters
  • Integral Side Shifting Fork Positioner (Dependent)
  • Full-Free Lift Two-Stage Mast (FV)
  • Rear Facing Blue Light (Key Switch Activated)
  • Rear Camera System Visibility Aid

Contact Toyota Material Handling Solutions for a complete list of optional equipment; and compatibility conditions and restrictions.

Download the High Capacity Adjustable Wheelbase Forklift Brochure

With 80-ton capacity, the Toyota High Capacity Adjustable Wheelbase Forklift is great for flexible operations. Download the High Capacity Adjustable Wheelbase Forklift brochure to read how it can help improve your uptime and increase profitability, 80 tons at a time.
