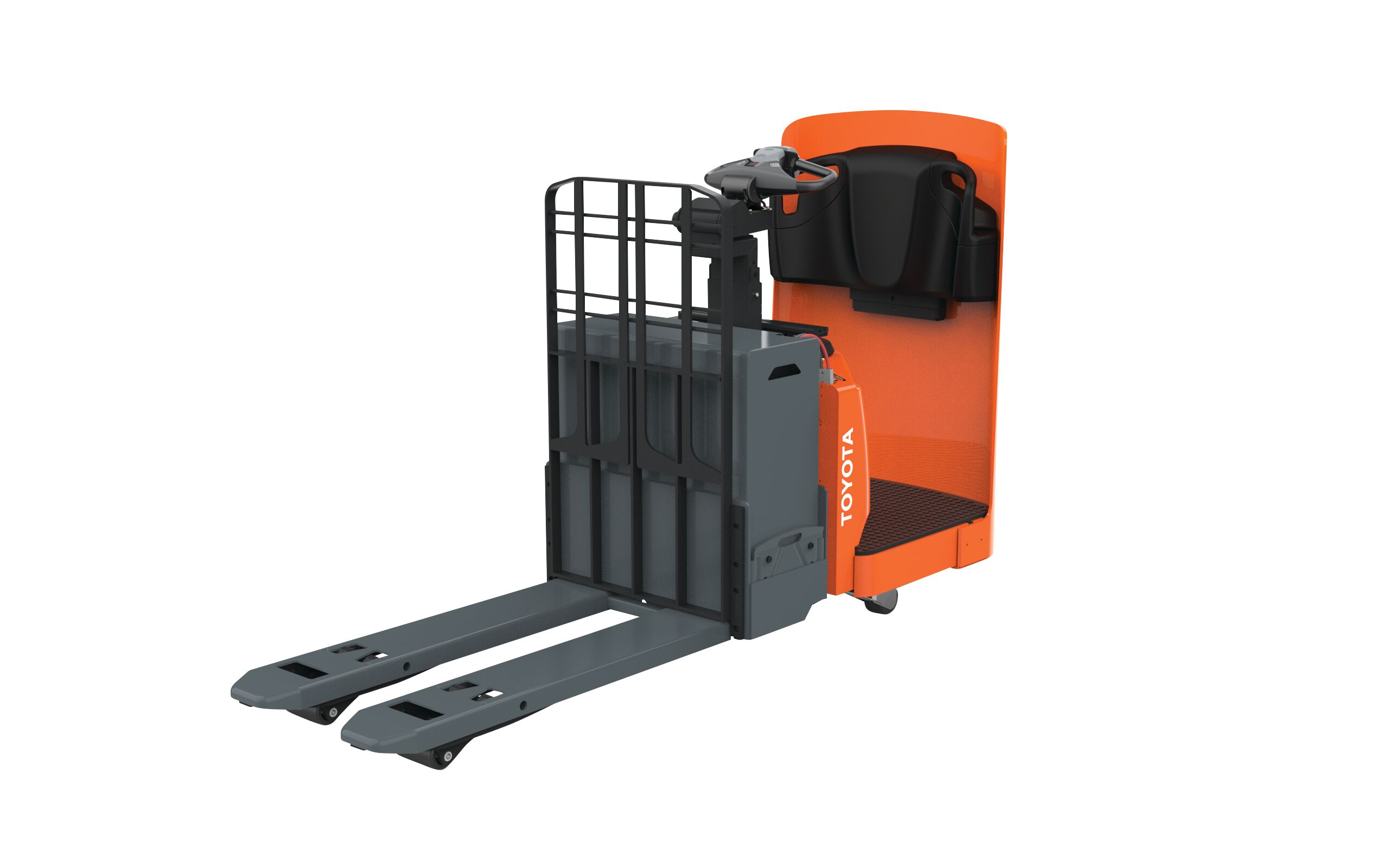

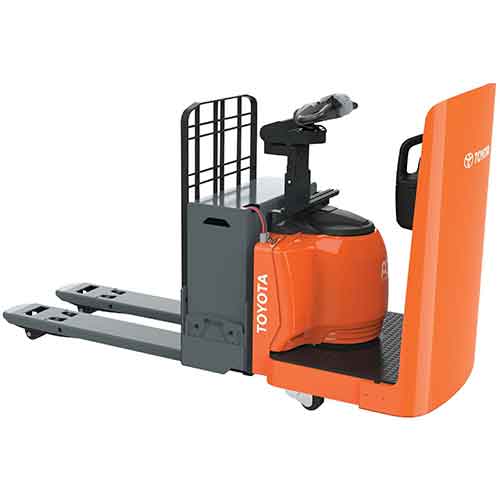

Side- Entry End Rider
The Toyota Side- Entry End Rider is ergonomically friendly, equipped with standard power steering, best-in- class turning radius, and easy pallet entry and exit, to get the job done. The Side- Entry End Rider assists operators with speed reduction in turns, making it easier to transport loads when cornering, ideal for a combination of applications. Trust Toyota’s Side- Entry Rider to be the ideal truck for dock work, cross- warehouse hauling, and low- level order picking. In addition, this unit is designed with steel pull rods, and stainless steel lift pins. The Side- Entry Rider can handle the toughest loads to keep you working throughout the day. Optional power hook-ups and accessory bars.
Having to keep up with the demands of your business means you need to maximize your uptime. Toyota’s Side- Entry End Rider does just that. Designed with steel pull rods, and stainless-steel lift pins, the Side- Entry End rider can handle the toughest loads to keep you working throughout the day.
- 6000/8000 lb. load capacity
- AC Drive Motor
- Power Steering
- Forward Facing Operator Position
- Dual Lift Cylinders
- Multifunction Control Handle
- Pin Code Access Pad Option
- Cold Conditioning Package Option
- Equipped with power steering, an operator backrest, and a soft cushioned floor mat to ensure comfort and safety.
- Storage trays, optional power hook-ups and accessory bars let you customize this end rider to suit your application and operators.
- 24 Volt electrical system with regenerative plugging and heavy duty spring loaded casters.
- Electric disc brakes and regenerative plugging increase your uptime with longer-lasting parts and efficient operations to reduce energy costs.
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX GRADEABILITY (%) | VOLTAGE |
|---|---|---|---|---|
| ER1-EF60 | 6,000 | 9 | 10 | 24 |
| ER1-EF80 | 8000 | 9 | 10 | 24 |
** Contact TMHS for Spec Details
Details of specifications and equipment may change without notice.
Performance
- 24 Volt Electrical System
- AC Drive Motor
- Regenerative Plugging
- Heavy Duty Spring Loaded Casters
- Battery Discharge Indicator with Lift Interrupt
- Hour Meter Indicator
- Horn
- Electric Power Steering
- Automatic Parking Brake
- UL Type “E” Construction
Ergonomics / Operability
- Cushioned Operator Backrest
- Programmable Performance
- Start Up and Run Time Diagnostics
- Multifunction Control Handle with Ergonomically Angled Hand Grips
- Multifunction Control Handle with Ergonomically Angled Hand Grips
Safety
- Operator Sensing Floor Mat
- Speed Reduction
- Emergency Power Disconnect
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX GRADEABILITY (%) | VOLTAGE |
|---|---|---|---|---|
| ER1-EF60 | 6,000 | 9 | 10 | 24 |
| ER1-EF80 | 8000 | 9 | 10 | 24 |
** Contact TMHS for Spec Details
Details of specifications and equipment may change without notice.
- 24 Volt Electrical System
- AC Drive Motor
- Regenerative Plugging
- Heavy Duty Spring Loaded Casters
- Battery Discharge Indicator with Lift Interrupt
- Hour Meter Indicator
- Horn
- Electric Power Steering
- Automatic Parking Brake
- UL Type “E” Construction
- Cushioned Operator Backrest
- Programmable Performance
- Start Up and Run Time Diagnostics
- Multifunction Control Handle with Ergonomically Angled Hand Grips
- Multifunction Control Handle with Ergonomically Angled Hand Grips
- Operator Sensing Floor Mat
- Speed Reduction
- Emergency Power Disconnect
Download the Side- Entry End Rider brochure
The Side- Entry End Rider moves products quickly and easily through your facility. Download the brochure to see how this End Rider takes charge of your biggest tasks.
