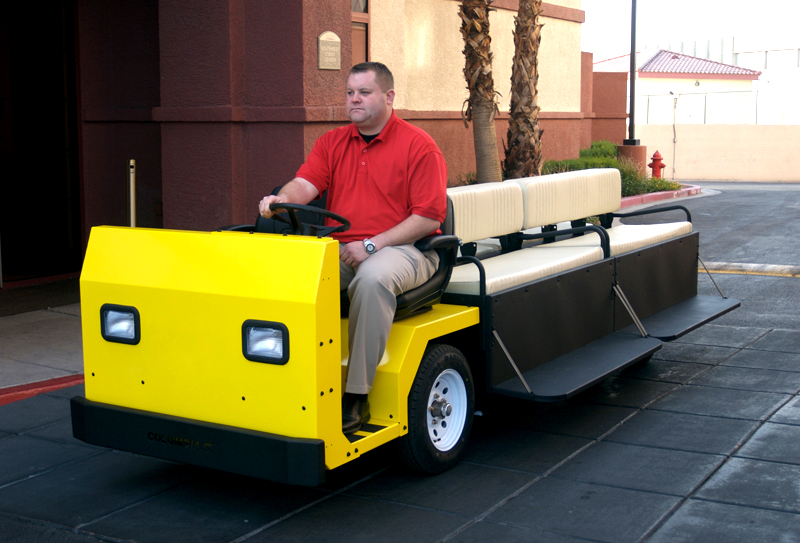

Columbia MVP
The innovative Columbia Multi-Vehicle Platform’s (MVP) drive axle(s) and battery pack(s) are located in the optimal position for payload carrying capacity, maximum range and top turning performance. Utilizing the MVP’s speed rail attach system, you can securely up fit a variety of cargo modules or application specific equipment. Moreover, the platform can be deployed in hundreds of configurations.
The Columbia MVP offers two drive axle and battery pack configurations for optimal balance in payload carrying capacity, maximum range, and top turning performance.
- Rated capacity of 3,500 to 6,000 lbs.
- Towing capacity of 3,500 to 6,000 lbs.
- Customization platform
- Perfect for manufacturing, maintenance, airports, distribution center, government facilities and colleges/universities
- Built-in charger, microprocessor controlled, fully sealed, global, 110-240-volt AC, 50/60 HZ
- Electric 48-volt system with enclosed NEMA class H temperature rated separately excited motor
- Hydraulic brakes, front disc/rear drum, hand operated parking brake
- Adjustable bucket seats with capacity for two people
- Bed length of 76"
- Steel box beam frame
- Front and rear steel bumpers
- Class H motor insulation
- Direct drive for easy maintenance
- Dual head and tail lights
- Adjustable bucket seats
Specifications
| MVP (MV1-L-BXXA) | MVP (MV1-L-BXAA) | |
|---|---|---|
| Move | 14 people | 14 people |
| Tow | 3,500 lbs.* | 6,000 lbs.* |
| Carry | 3,500 lbs.* | 6,000 lbs.* |
| Max speed | 6 – 20 mph | 6 – 20 mph |
| Volt | 48 | 48 |
| Power system | Electric | Electric |
| Deck | 4,608 square in. | 4,608 square in. |
* In order to achieve some specifications, optional equipment may be required.
Optional Equipment
- Seat belts
- Steel cab with doors
- Hour meter
- Battery exchange system
- Turn signals
- 14-passenger tram package
- In-motion beeper
