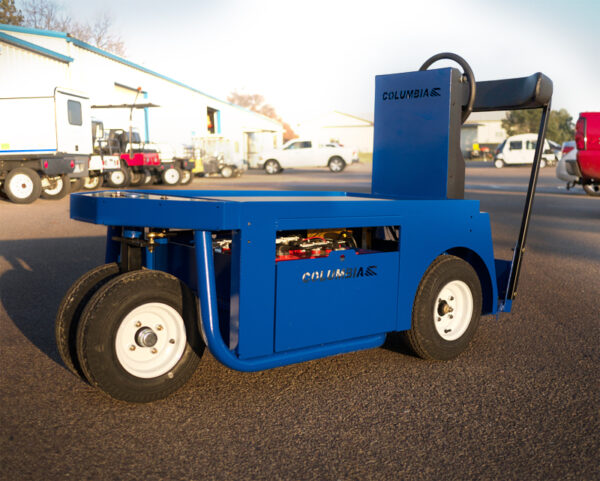

Columbia StockChaser

Columbia’s StockChaser will help you move materials quickly, efficiently and inexpensively. This dependable performer is the ‘just-in-time’ answer to your material handling demands.

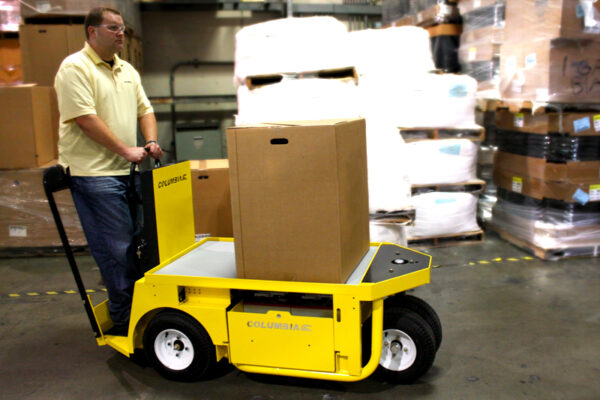

The Columbia StockChaser provides the best working solution for order picking, stock replenishment, towing, materials expediting and many more applications.

Deck capacity of up to 1,200 lbs.
Up to 6,000 lb. towing (with optional special duty package)
Curb-to-curb turning radius of 133 inches
Minimum aisle width of 55 inches
Four-wheel configuration provides greater stability
Single operator, easy steering stand-up operation
Narrow aisle operation
Perfect for manufacturing, warehouses, towing, distribution centers and parts

Built-in charger, microprocessor controlled, fully sealed, global, 110-240-volt AC, 50/60 HZ
Electric 48-volt system with enclosed NEMA class H temperature rated separately excited motor
Hydraulic brakes, front disc/rear drum, hand operated parking brake
Adjustable bucket seats with capacity for two people
Bed length of 76"
Steel box beam frame
Front and rear steel bumpers
Class H motor insulation
Direct drive for easy maintenance
Dual head and tail lights
Adjustable bucket seats

Specifications

	Burden Carrier IS12	Tugger IS12
Move	1 operator	1 operator
Tow	1,200 lbs.*	6,000 lbs.*
Carry	1,200 lbs.*	800 lbs.*
Max speed	8.5 – 10 mph	6 mph
Volt	24 or 48	48
Power system	Electric	Electric
Turning radius	133”	133”

* In order to achieve some specifications, optional equipment may be required.

Optional Equipment

Headlights
Tow hitches
Hour meter
Battery exchange system
Turn signals
4 and 6 step ladders

Pole mounted strobe light
Tire/wheel combinations
Paint colors
Heavy duty batteries
In-motion beeper

	Burden Carrier IS12	Tugger IS12
Move	1 operator	1 operator
Tow	1,200 lbs.*	6,000 lbs.*
Carry	1,200 lbs.*	800 lbs.*
Max speed	8.5 – 10 mph	6 mph
Volt	24 or 48	48
Power system	Electric	Electric
Turning radius	133”	133”
