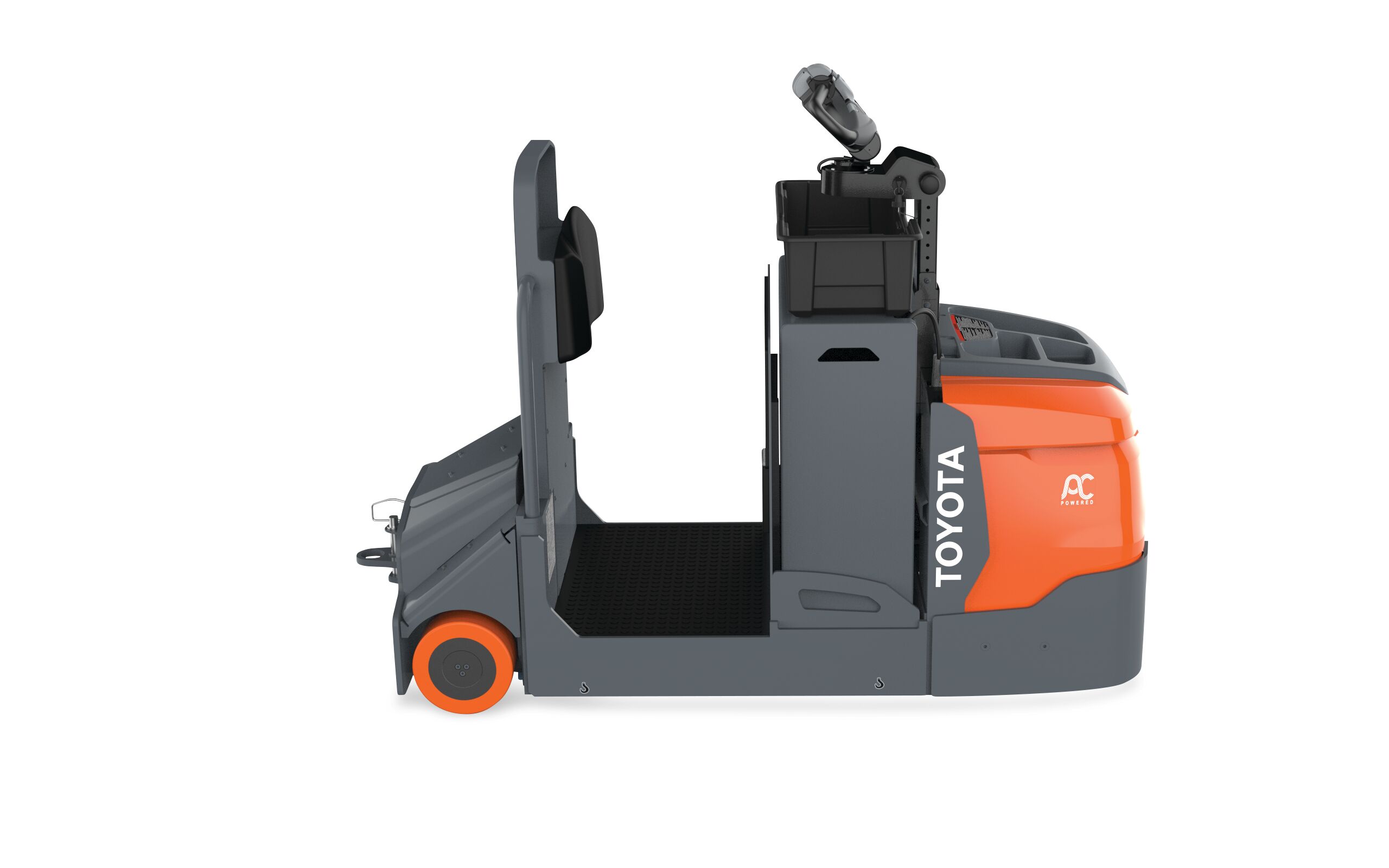

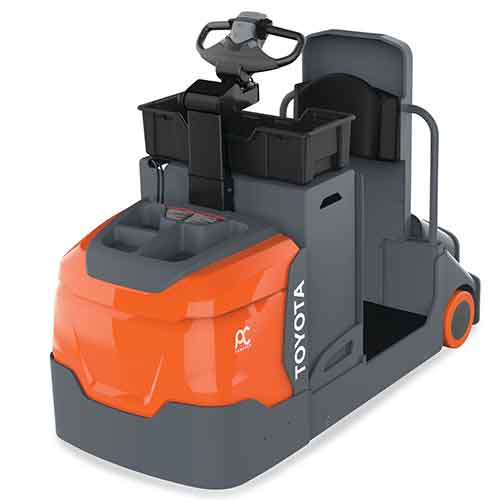

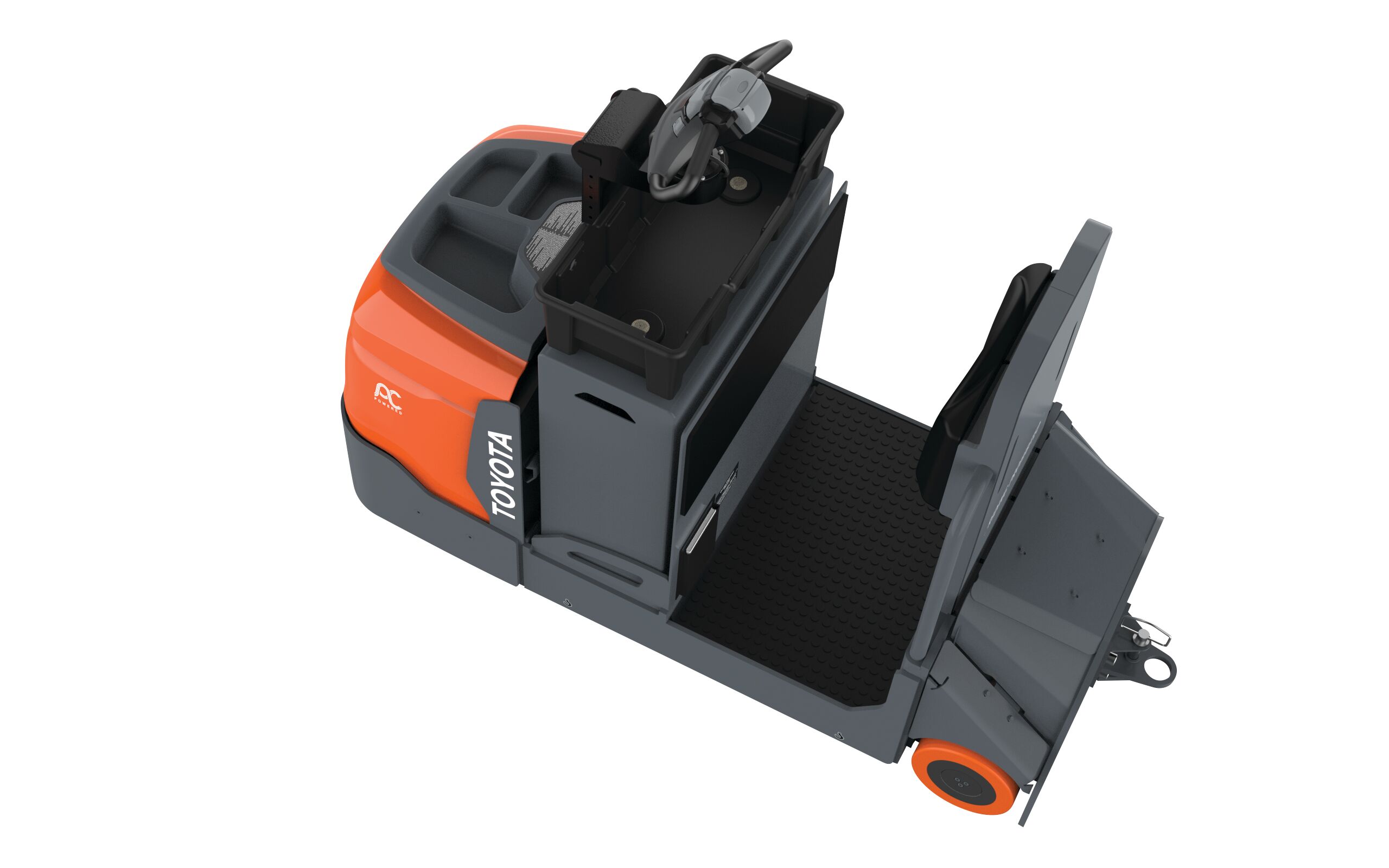

Industrial Tow Tractor
When it comes to heavy-duty towing, Toyota’s Industrial Tow Tractor is here to get the job done. Designed with a towing capacity of 15,000 lbs. on flat surfaces, this piece of equipment is capable of towing even the heaviest of loads with ease. Its power steering capability allows you to transport items from point A to point B seamlessly, so you never have to worry about getting the job done. The Toyota Industrial Tow Tractor is the versatile, efficient tugger you need in your fleet.
When you need to move products quickly and easily through your facility, Toyota’s Industrial Tow Tractor is the right piece of equipment for the job, Equipped with an AC Drive Motor, this tugger provides the power you need to accomplish your daily tasks.
- 15, 000 lb. capacity
- Power Steering
- Cold Storage Conditioning
- Operator Compartment Sensor
- Large Magnetic Battery- Mounted Storage Tray Option
- Turtle Speed Button
Learn more about the Toyota Industrial Tow Tractor
- 24 Volt electrical system with regenerative plugging and cold storage conditioning.
- There is a battery discharge indicator with lift interrupt, an hour meter indicator, electric disc brake, and programmable performance.
- The body of the tractor is comprised of battery gate interlocks, electronic travel alarm, poly load wheels, and rubber drive tires.
- The battery compartment is 30.68 inches wide, 13.7 inches long and 31.0 inches tall.
- There is an emergency power disconnect and an operator compartment sensor for additional safety.
- This equipment includes a multi- function control handle with ergonomically positioned handgrips, dual thumbwheels, and lift, lower, and horn buttons for simplified operation of all controls.
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | DRAWBAR PULL MAX. |
|---|---|---|---|
| TT1-HC150 | 15,000 | 6.0 | 1600 |
** Contact TMHS for Spec Details
Details of specifications and equipment may change without notice.
Performance
- 24 Volt Electrical System
- AC Drive Motor
- Regenerative Plugging
- Battery Discharge Indicator with Lift Interrupt
- Hour Meter Indicator
- Electric Disc Brake
- Cold Storage Conditioning
- Power Steering
- Programmable Performance
- UL Type "E" Construction
Ergonomics / Operability
- Cushioned Knee Pads
- Cushioned Operator Backrest
- Directional Thumb Wheels
- Power Steer Control Handle with Ergonomically Angled Hand Grips
- Soft- cushioned Floor Mat
- Wrap- Around Hand Guard
- Handle Mounted Rabbit Switch
Safety
- Emergency Power Disconnect
- Operator Compartment Sensor
- Battery Gate Interlocks
- Electronic Travel Alarm
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | DRAWBAR PULL MAX. |
|---|---|---|---|
| TT1-HC150 | 15,000 | 6.0 | 1600 |
** Contact TMHS for Spec Details
Details of specifications and equipment may change without notice.
- 24 Volt Electrical System
- AC Drive Motor
- Regenerative Plugging
- Battery Discharge Indicator with Lift Interrupt
- Hour Meter Indicator
- Electric Disc Brake
- Cold Storage Conditioning
- Power Steering
- Programmable Performance
- UL Type "E" Construction
- Cushioned Knee Pads
- Cushioned Operator Backrest
- Directional Thumb Wheels
- Power Steer Control Handle with Ergonomically Angled Hand Grips
- Soft- cushioned Floor Mat
- Wrap- Around Hand Guard
- Handle Mounted Rabbit Switch
- Emergency Power Disconnect
- Operator Compartment Sensor
- Battery Gate Interlocks
- Electronic Travel Alarm
Download the Industrial Tow Tractor brochure
The Industrial Tow Tractor moves products quickly and easily through your facility. Download the brochure to see how this Tow Tractor takes charge of your biggest tasks.
