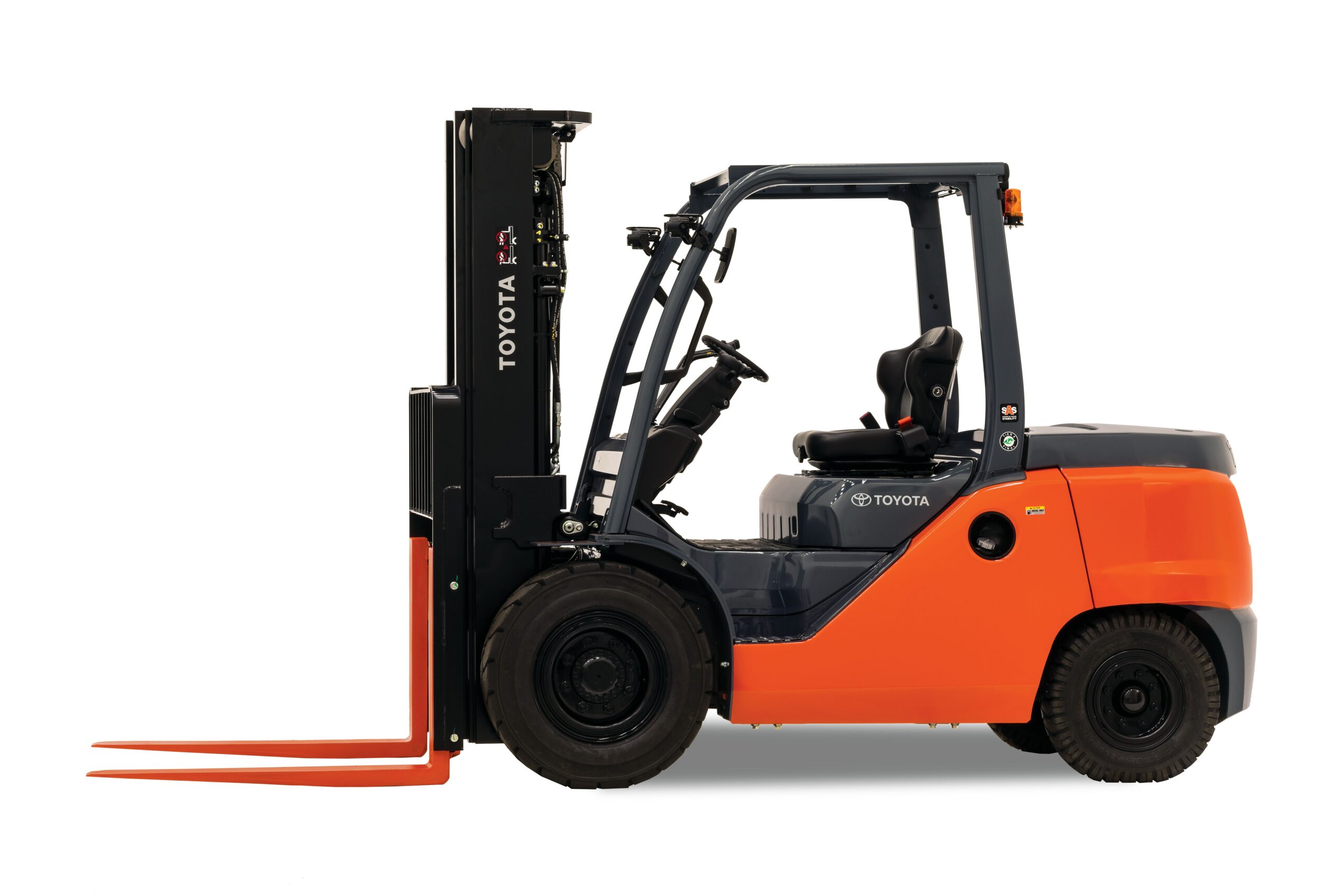

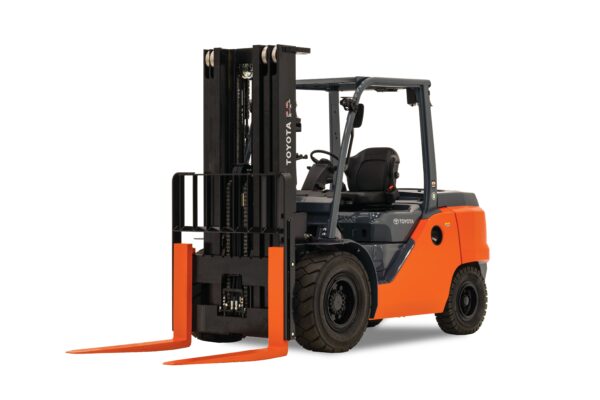

Mid IC Pneumatic Forklifts
Long, hard days and big, heavy loads. The powerful, durable Toyota Mid IC Pneumatic makes light work of both, giving you more muscle to keep going as long as it takes. Plus, better ergonomics for increased operator comfort and productivity. And pneumatic tired for stable performance on uneven surfaces. It’s as strong as the day is long.

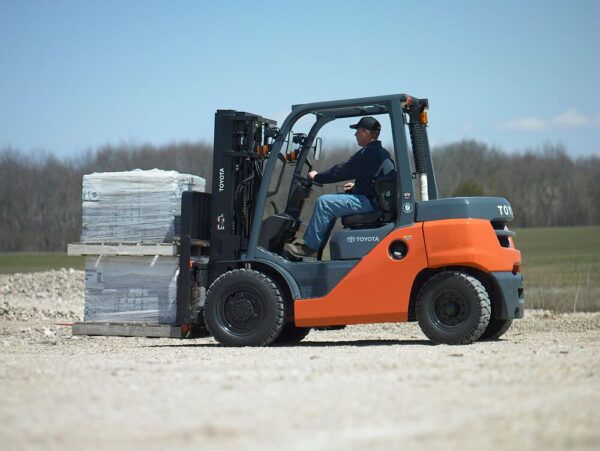

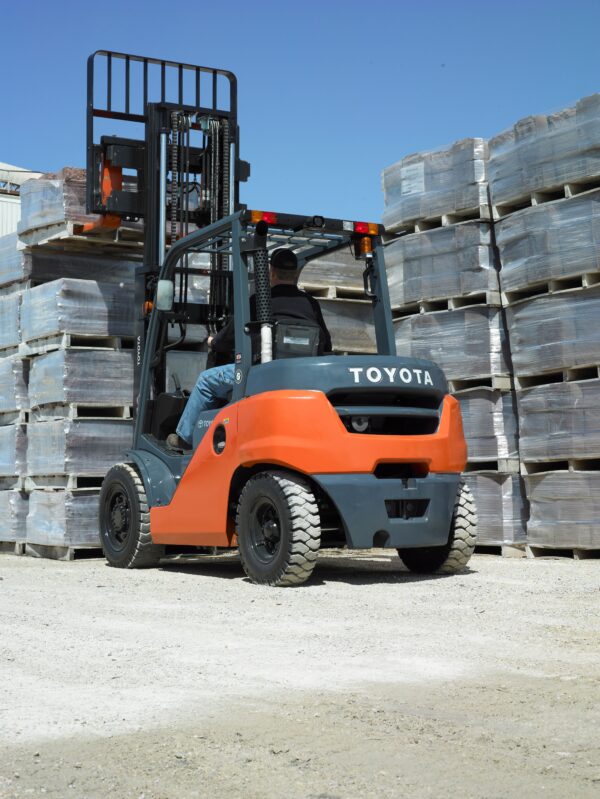

The Toyota Mid IC Pneumatic Forklift, with a capacity of 8,000-11,000 lbs., is a premier material handling solution for most mid- capacity outdoor applications. Powerful, durable and engineered with ergonomics in mind, the Mid IC Pneumatic Forklift is ideal for long days in the lumber yard, on construction sites and most other outdoor applications.
- 8,000 –11,000 lb. capacity
- Auto tilt-leveling forks
- Operator presence sensing system (OPSS)
- System of active stability (SAS)
- Forced-cooled wet disc brakes
- System of active stability automatically detects potentially unsafe conditions and engages additional safety features for increased operator protection and reduced product and forklift damage.
- Active mast control responds automatically to enhance stability of loads handled at high lift heights.
- Forward tilt angle control and rear tilt speed control act automatically in uncertain situations to protect operator and reduce product and forklift damage.
- One-way automatic fork leveling levels forks parallel to the ground from back tilt position with the push of a button.
- Standard LED headlights lower operational costs due to reduced amp draw and no filament.
- Forced- cooled wet disc brakes reduce maintenance cost and downtime with an expected lifespan of 10 years/ 20,000 hours.
- Durability by design including tilt cylinder protection boots, stamped steel engine hood, fully sealed air intake, plate-iron front fenders, and moisture-resistant electrical connections.
- Standard LCD multi-function display puts customizable performance, operational data, and QR code diagnostics right at your fingertips.
- Two-speed powershift transmission provides advanced performance in acceleration and gradeability with fully automatic operation.
- Reinforced load backrest extension with recessed fasteners reduces potential for product damage.
- Premium comfort seat utilizes high-quality materials and a multitude of adjustable settings to deliver a smooth ride, shift after shift.
- Improved ergonomics including load-sensing power steering 11.8" steering wheel, dash-integrated amenity tray, and oversized cup holder.
- Welded, roll-formed overhead guard pillars provide maximum operator protection with improved entry/exit and load visibility.
Specifications
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 50-8FG35U | 8000 | 13.7 | 103 | 32 | N/A |
| 50-8FG40U | 9000 | 13.7 | 103 | 29 | N/A |
| 50-8FG45U | 10000 | 13.7 | 94 | 26 | N/A |
| 50-8FG50U | 11000 | 13.7 | 94 | 24 | N/A |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
Performance
- Automatic transmission with oil cooler
- Master warning, wheel, direction, and mast tilt indicators
- EPA/CARB-certified engine
- SAS/OPSS warning light
- Distributorless ignition system (1FS)
- UL-approved model type "LP"
Ergonomics / Operability
- Load-sending power steering
- One-way automatic fork leveling
- Double-action parking brake (hand)
- Cowl-mounted hydraulic control levels with rubber boot covers
- Dash-integrated amenity tray & oversized cup holder
- Dash mounted instrument display
- 12" long dual operator assist grips
Safety
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Neutral engine start safety switch
Ease of Service
- Easy access no-tools floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Easy access to common service items such as filters and dipsticks
- Engine protection system
- Easy lift engine hood with wide 75° opening
Contact Toyota Material Handling Solutions spec details and optional equipment.
| MODEL NUMBER | LOAD CAPACITY* (LBS.) | MAX. TRAVEL SPEED FULL LOAD (MPH) | MAX. LIFT SPEED FULL LOAD (FPM) | MAX. GRADEABILITY FULL LOAD (%) | BASIC RIGHT ANGLE STACK** (IN.) |
|---|---|---|---|---|---|
| 50-8FG35U | 8000 | 13.7 | 103 | 32 | N/A |
| 50-8FG40U | 9000 | 13.7 | 103 | 29 | N/A |
| 50-8FG45U | 10000 | 13.7 | 94 | 26 | N/A |
| 50-8FG50U | 11000 | 13.7 | 94 | 24 | N/A |
* Based on 24″ Load center
** Add load length and clearance
Details of specifications and equipment may change without notice.
- Automatic transmission with oil cooler
- Master warning, wheel, direction, and mast tilt indicators
- EPA/CARB-certified engine
- SAS/OPSS warning light
- Distributorless ignition system (1FS)
- UL-approved model type "LP"
- Load-sending power steering
- One-way automatic fork leveling
- Double-action parking brake (hand)
- Cowl-mounted hydraulic control levels with rubber boot covers
- Dash-integrated amenity tray & oversized cup holder
- Dash mounted instrument display
- 12" long dual operator assist grips
- System of Active Stability (SAS)
- Operator Presence Sensing System (OPSS)
- Bolt-on overhead guard
- Key lowering interlock
- Electric horn
- Neutral engine start safety switch
- Easy access no-tools floorboard
- Engine hood assist damper with lock device
- Air cleaner discharge valve
- Easy access to common service items such as filters and dipsticks
- Engine protection system
- Easy lift engine hood with wide 75° opening
Contact Toyota Material Handling Solutions spec details and optional equipment.
DOWNLOAD THE IC MID PNEUMATIC BROCHURE
More power for big loads. More durability for heavy, harsh conditions. More grip for rough, uneven surfaces. More material-handling prowess to knock off every item on your outdoor to-do list. Whatever the challenge, the Mid IC Pneumatic is up for it. Download a brochure to see why the Toyota Mid IC Pneumatic is one tough customer.
